Power Liftgate
Power Liftgate

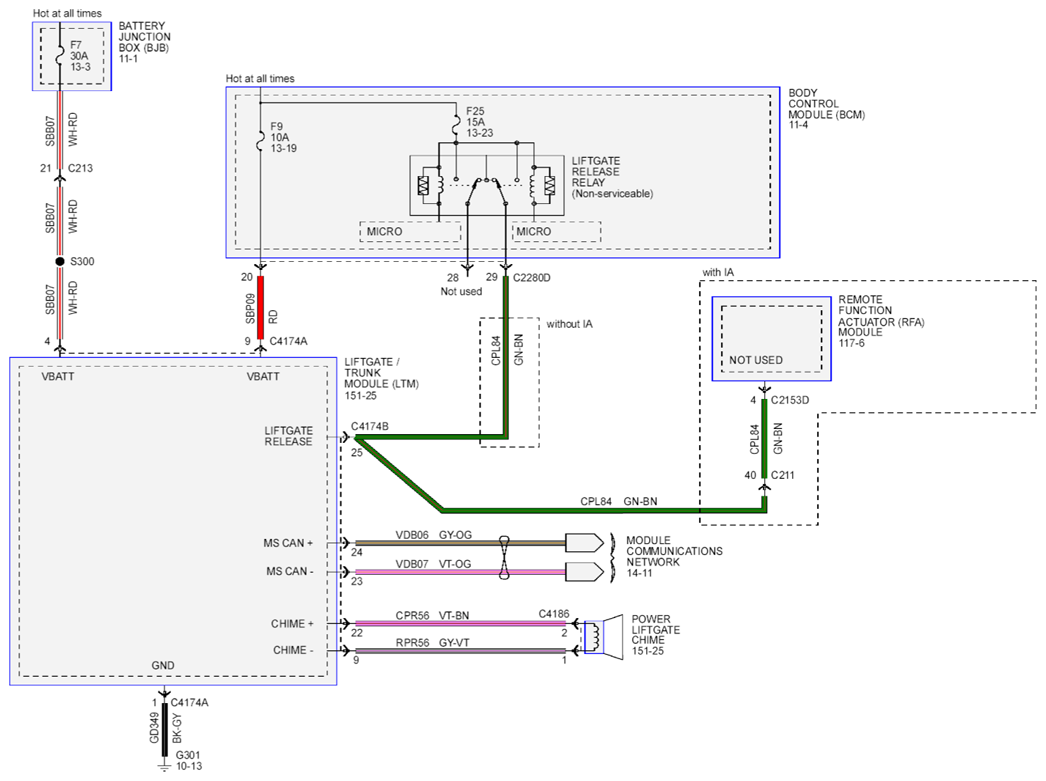

Fig 1: Power Liftgate Circuit Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

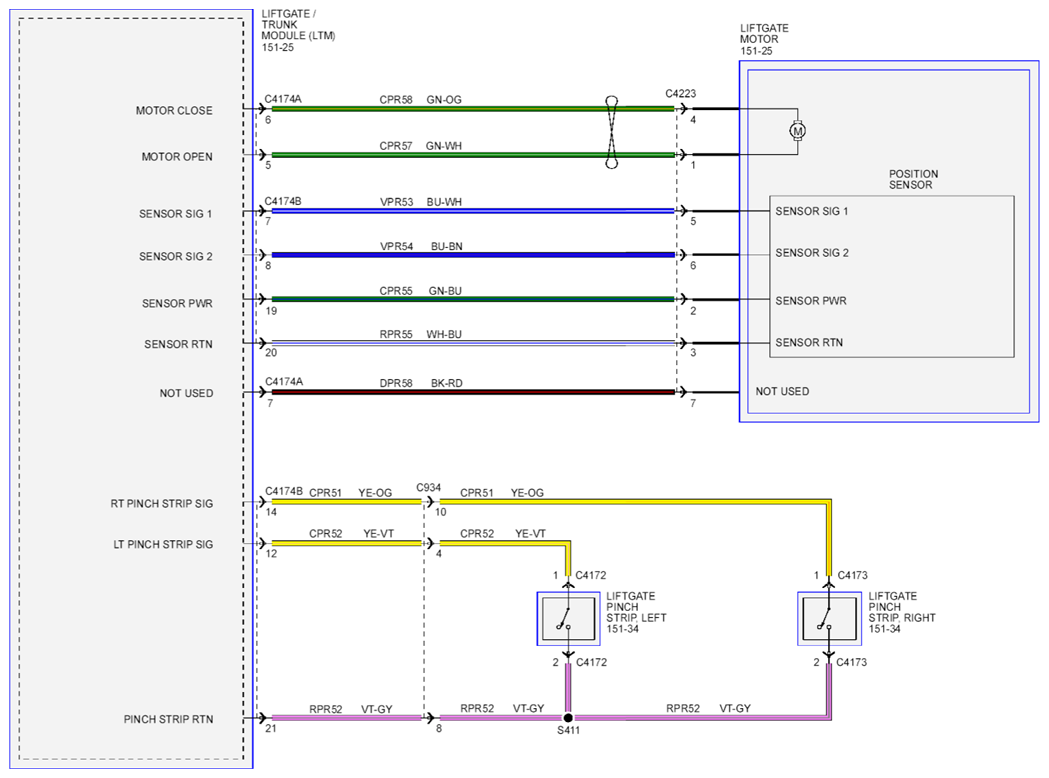

Fig 2: Power Liftgate Circuit Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

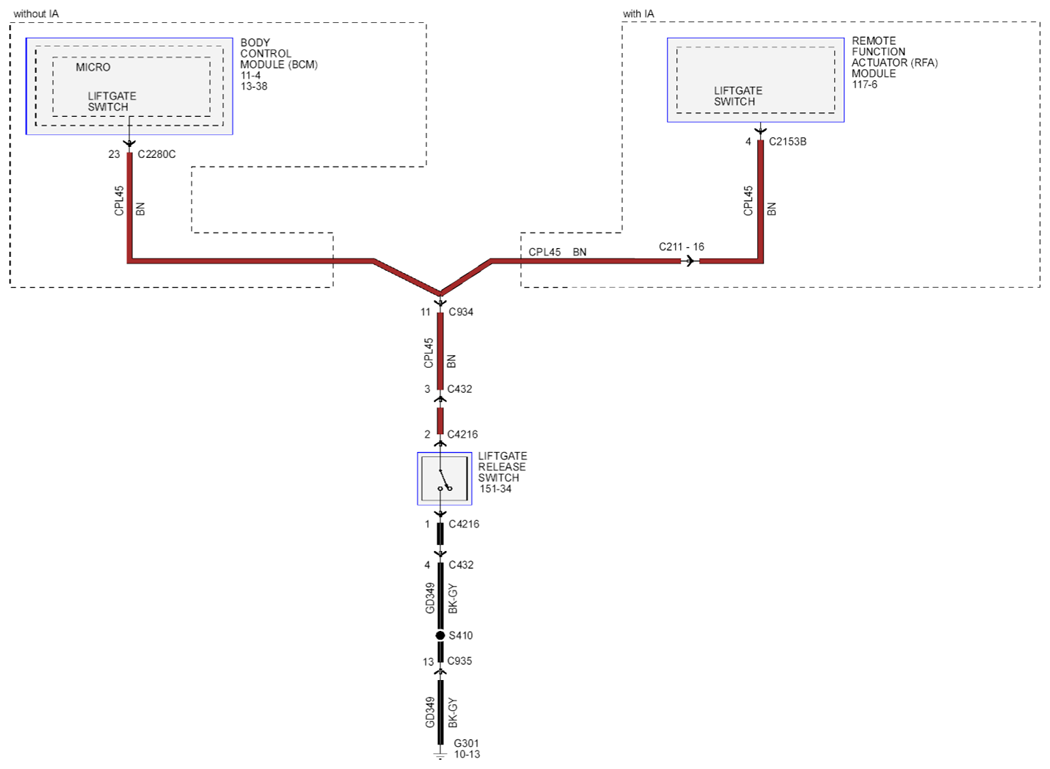

Fig 3: Power Liftgate Circuit Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

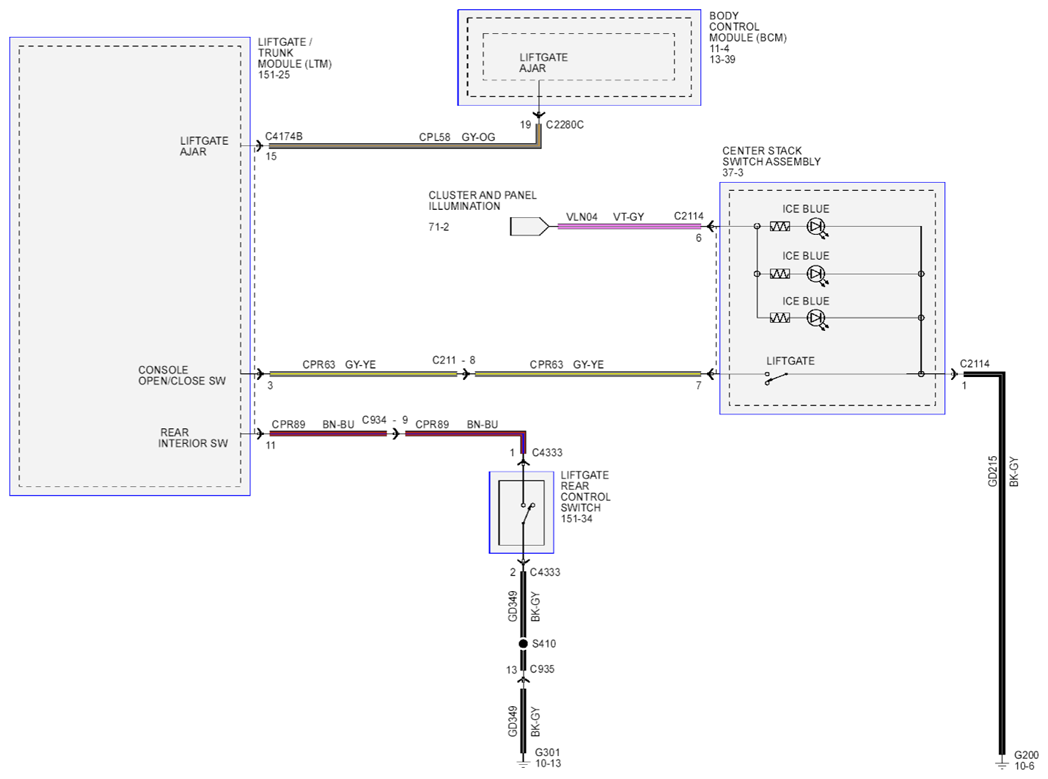

Fig 4: Power Liftgate Circuit Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

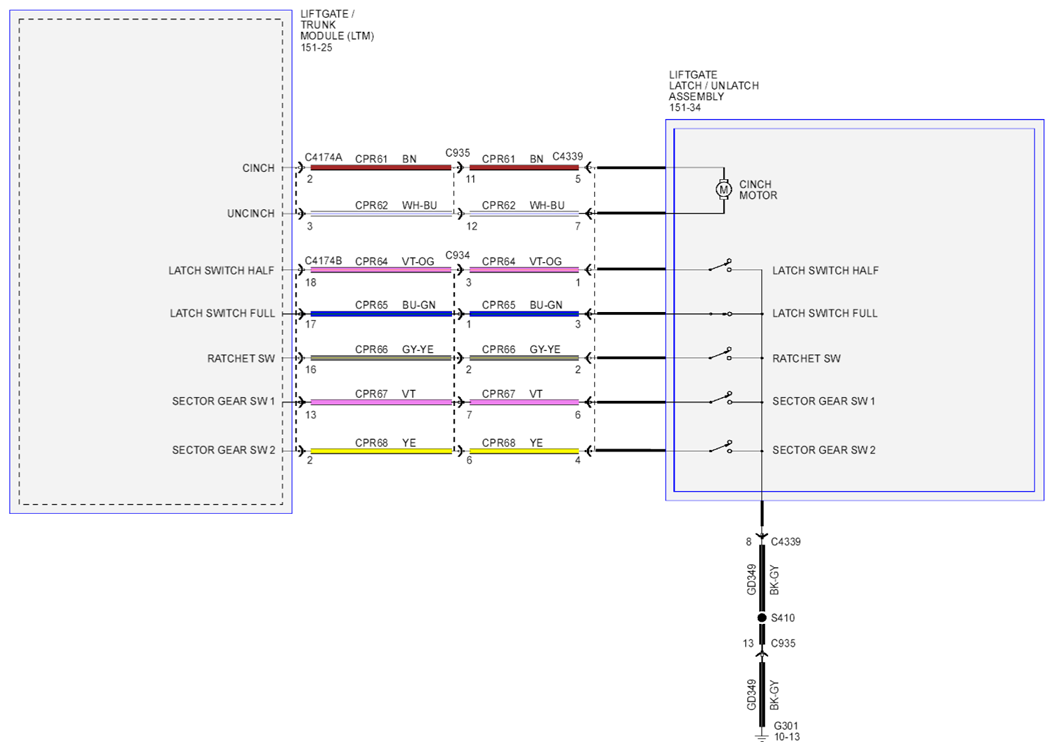

Fig 5: Power Liftgate Circuit Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
