F68, F69, F70, 2.0L GTDI

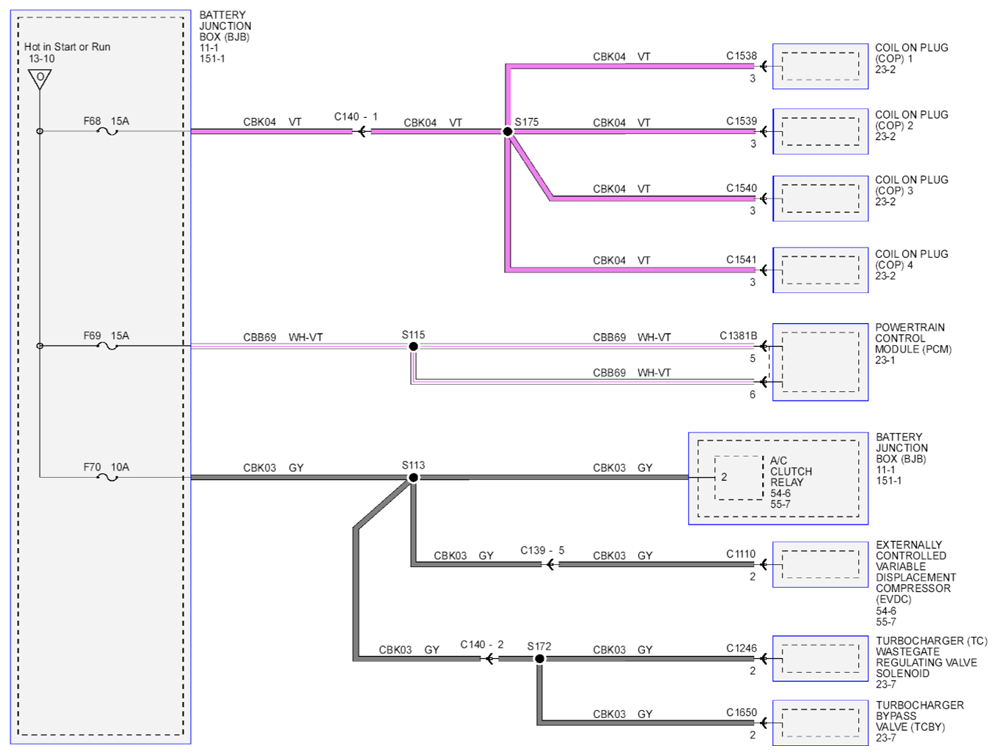

Fig 1: Power Distribution BCM Circuit Diagram - 2.0L GTDI (F68, F69, F70,)

G07895301

Courtesy of FORD MOTOR CO.
