Power Distribution_BCM
>>
F67 3.5L TIVCT
F67 3.5L TIVCT

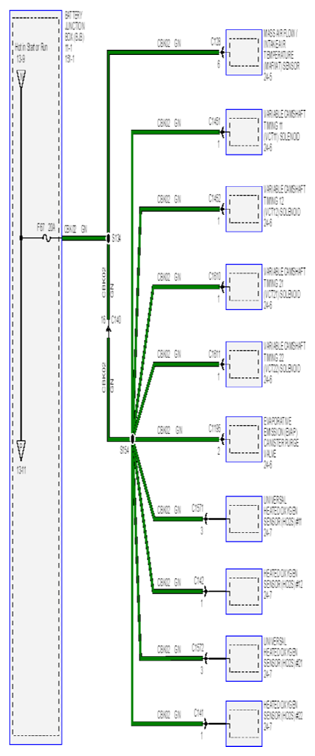

Fig 1: Power Distribution BCM Circuit Diagram - 3.5L TIVCT (F67)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
