Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Power Distribution_BCM
>>
F4, F25
F4, F25

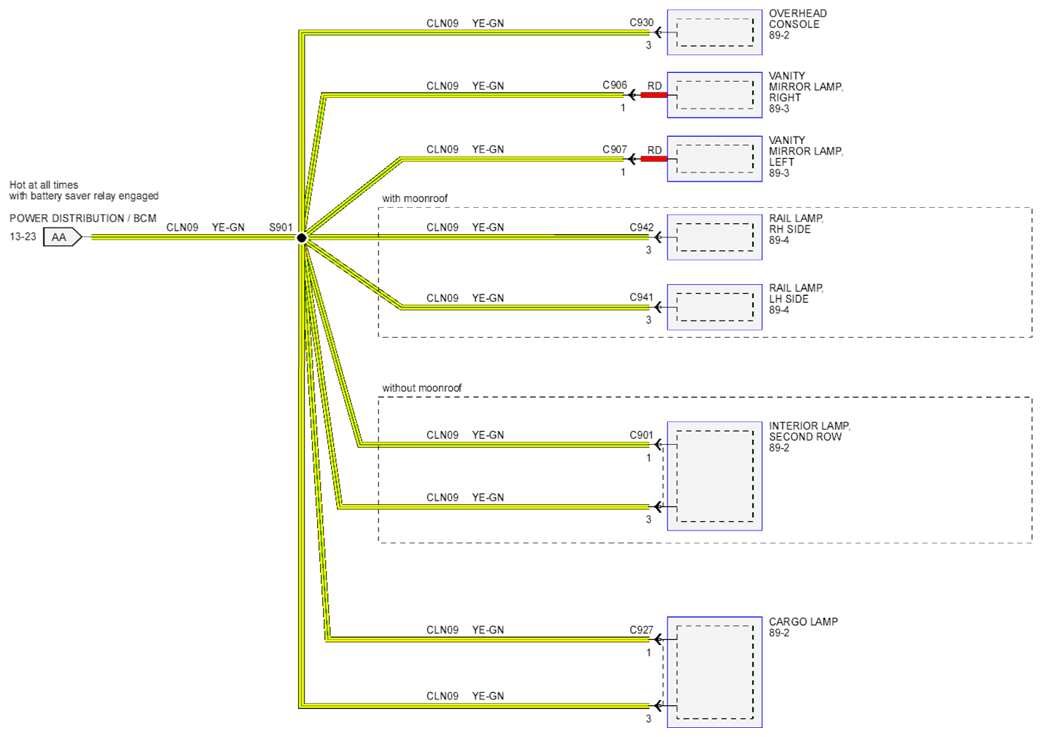

Fig 1: Power Distribution BCM Circuit Diagram (F4, F25) (1 Of 2)
Courtesy of FORD MOTOR CO.

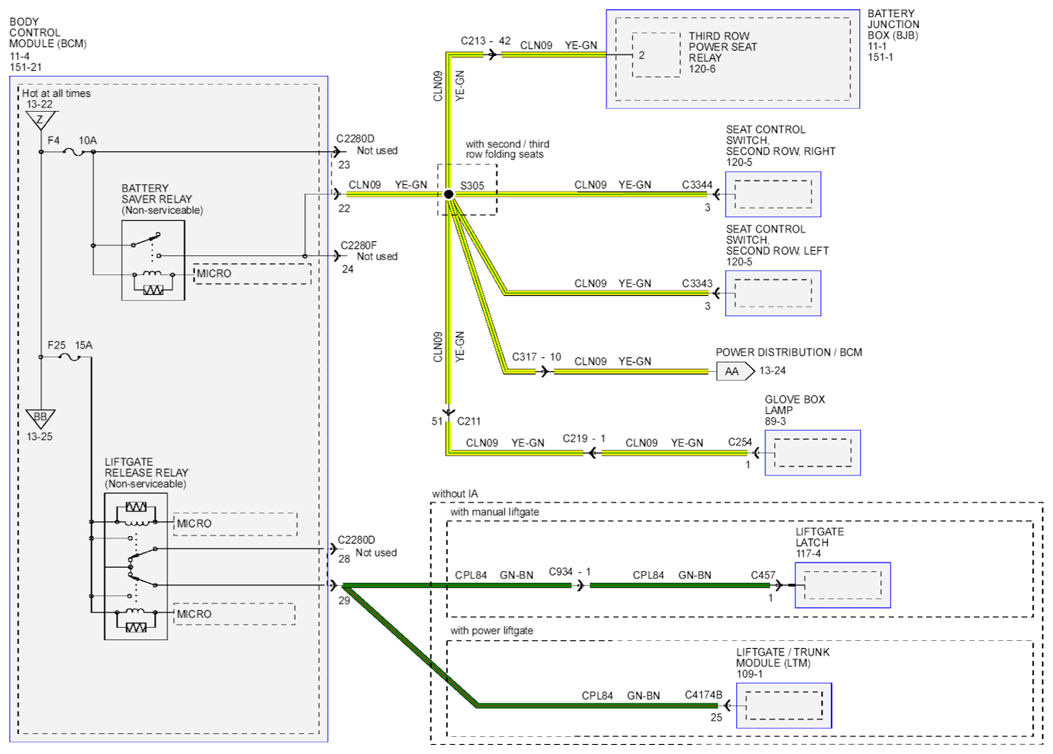

Fig 2: Power Distribution BCM Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
