F35, F36, F37, F41, F42

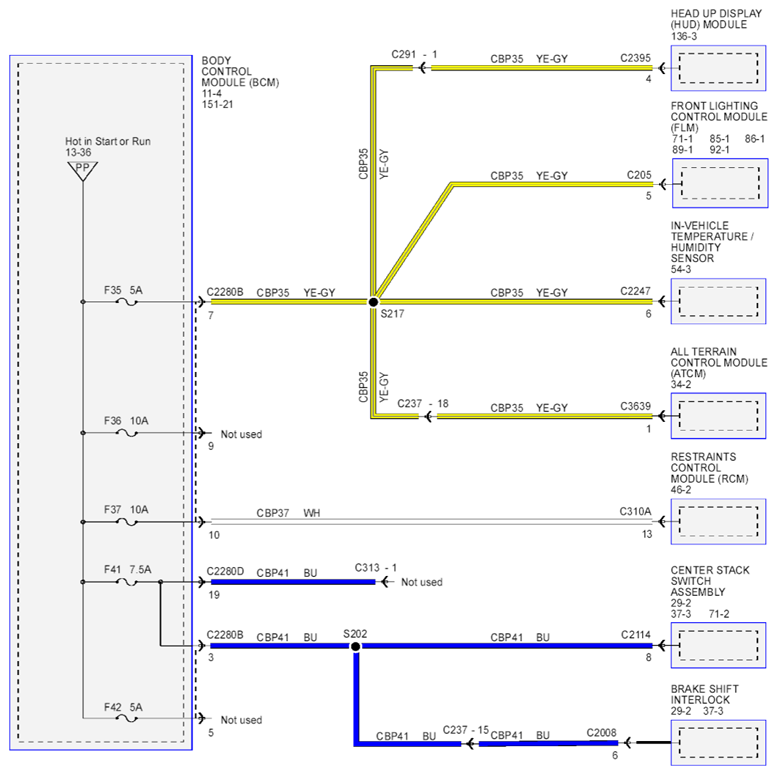

Fig 1: Power Distribution BCM Circuit Diagram (F35, F36, F37, F41, F42) (1 Of 4)
G07895327Courtesy of FORD MOTOR CO.

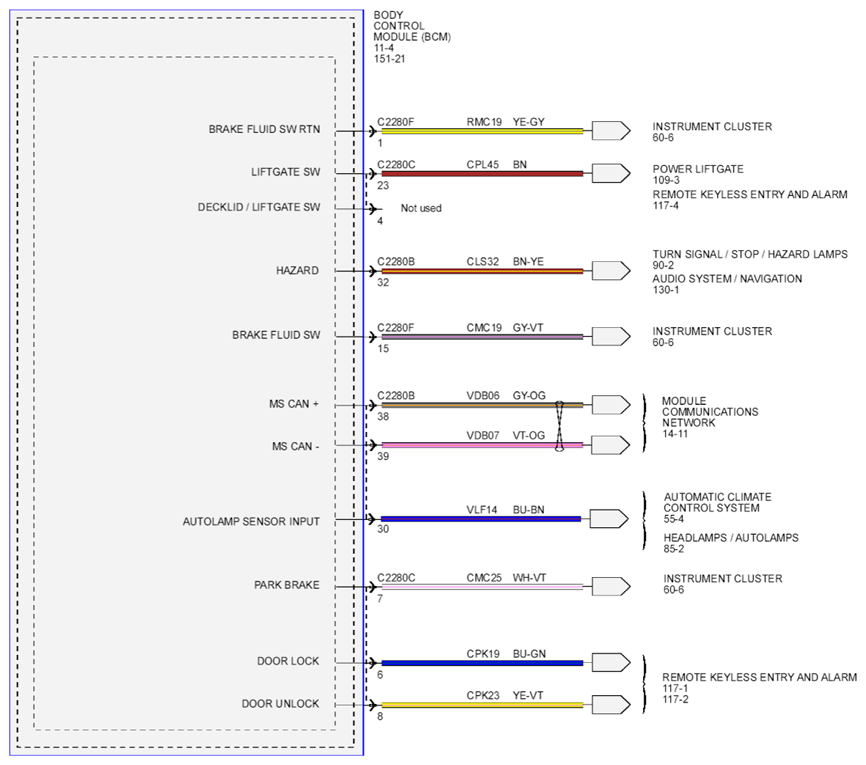

Fig 2: Power Distribution BCM Circuit Diagram (2 Of 4)
G07895328Courtesy of FORD MOTOR CO.

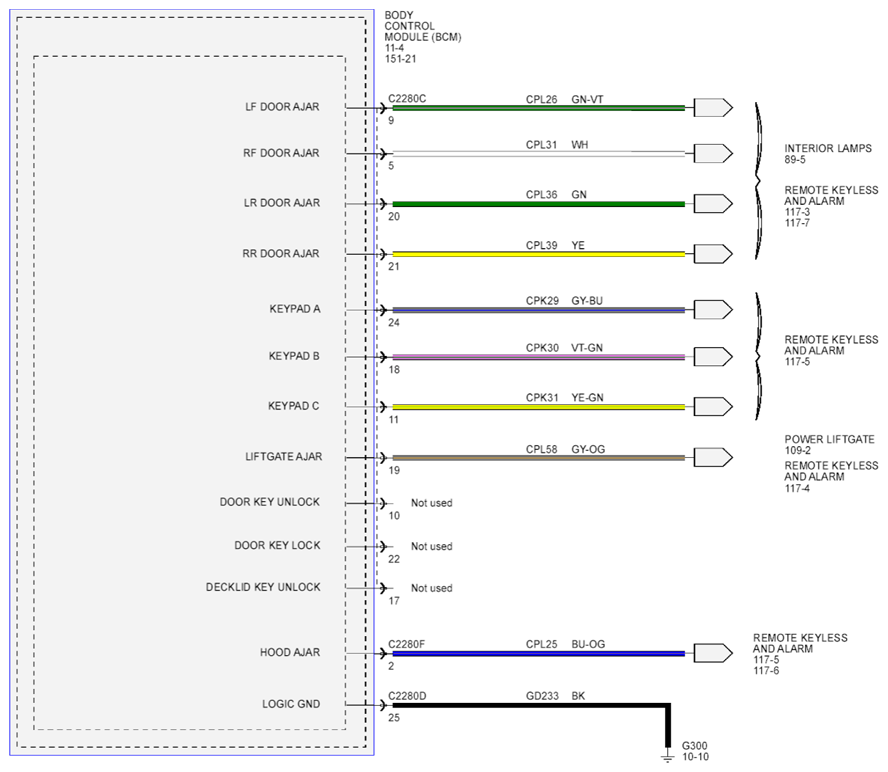

Fig 3: Power Distribution BCM Circuit Diagram (3 Of 4)
G07895329Courtesy of FORD MOTOR CO.

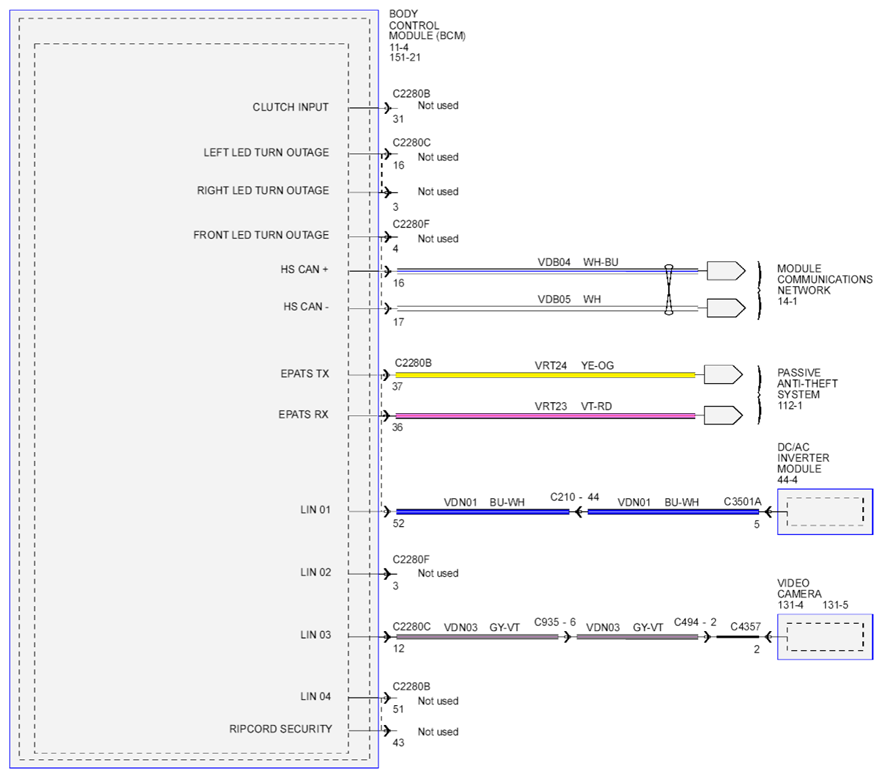

Fig 4: Power Distribution BCM Circuit Diagram (4 Of 4)
G07895330Courtesy of FORD MOTOR CO.
