F33, F34

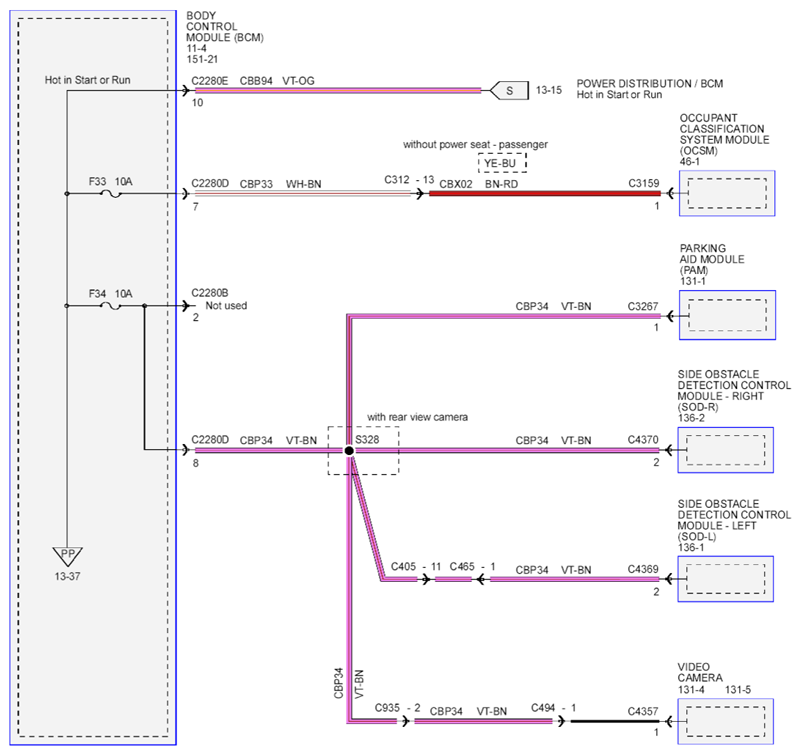

Fig 1: Power Distribution BCM Circuit Diagram (F33, F34)

G07895326

Courtesy of FORD MOTOR CO.
