Power Distribution_BCM
>>
F32, F38, F48
F32, F38, F48

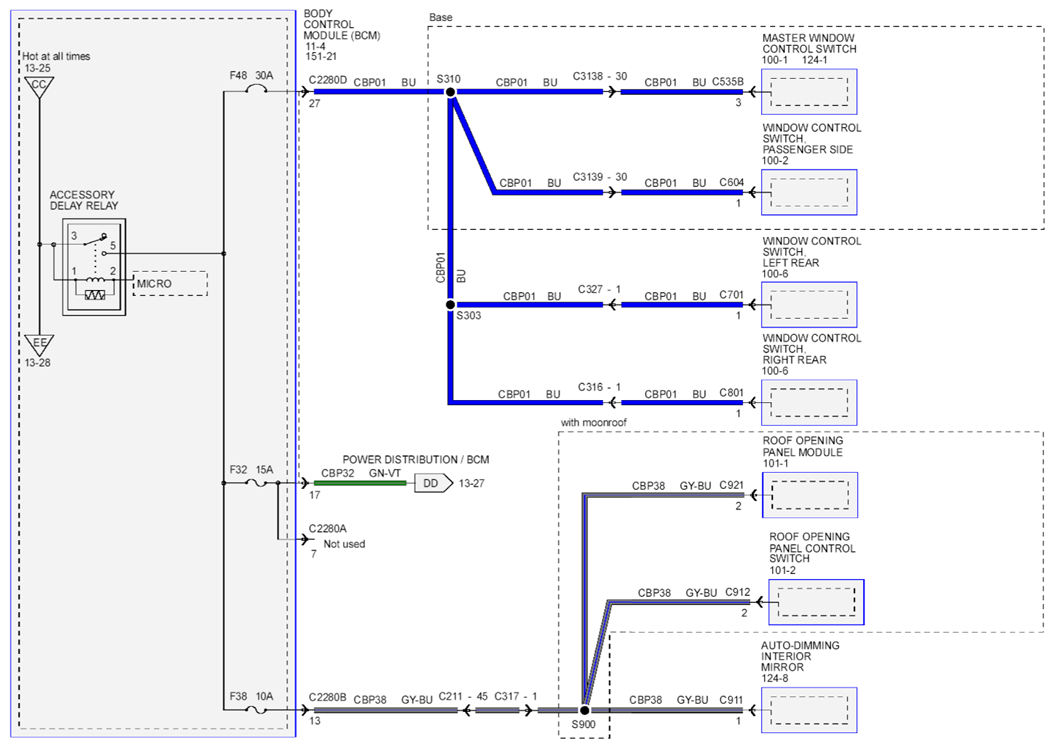

Fig 1: Power Distribution BCM Circuit Diagram (F32, F38, F48) (1 Of 2)
Courtesy of FORD MOTOR CO.

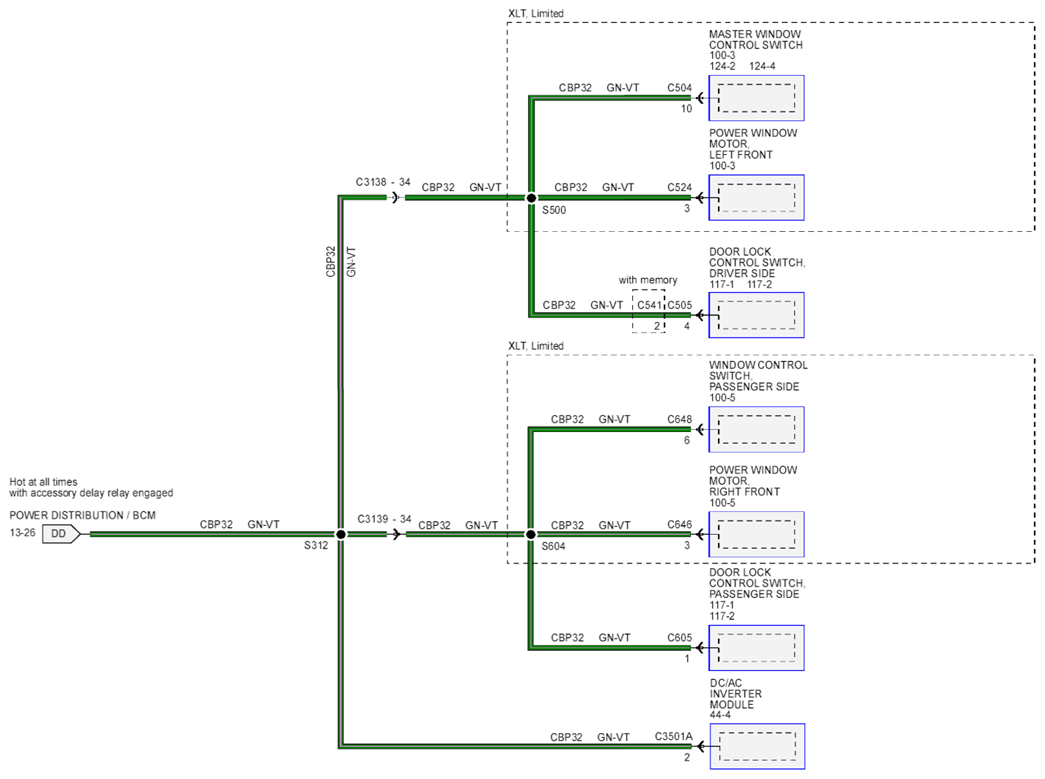

Fig 2: Power Distribution BCM Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
