Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Power Distribution_BCM
>>
F30, F40
F30, F40

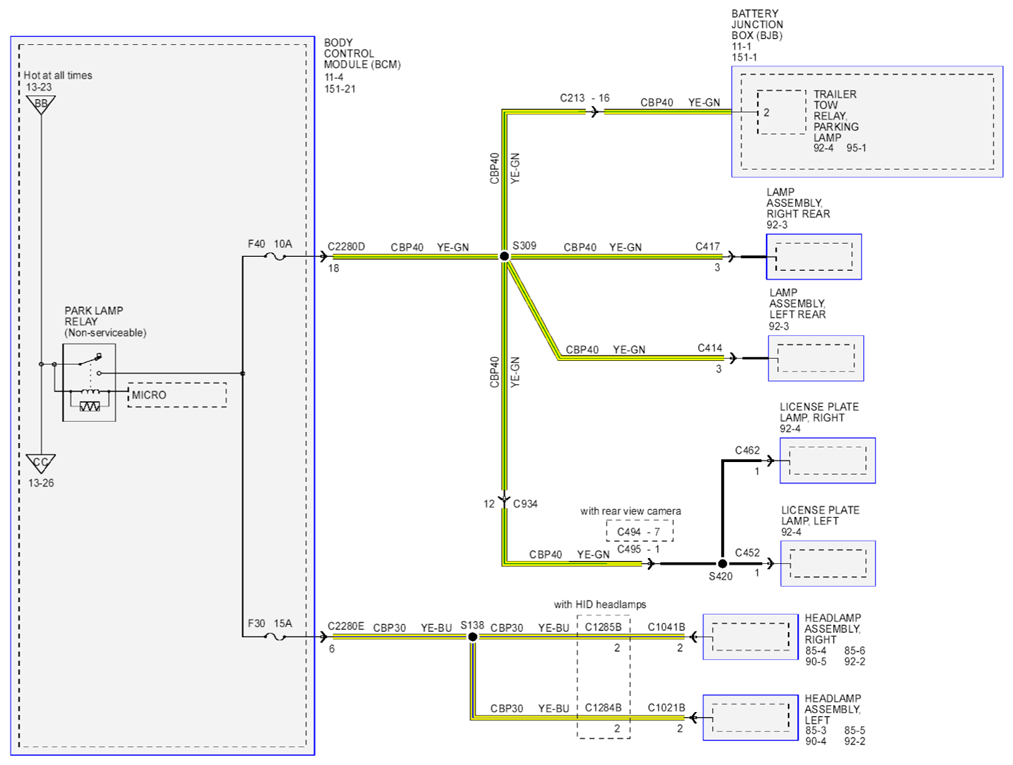

Fig 1: Power Distribution BCM Circuit Diagram (F30, F40)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
