Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Power Distribution_BCM
>>
F27, F28, F39, F42
F27, F28, F39, F42

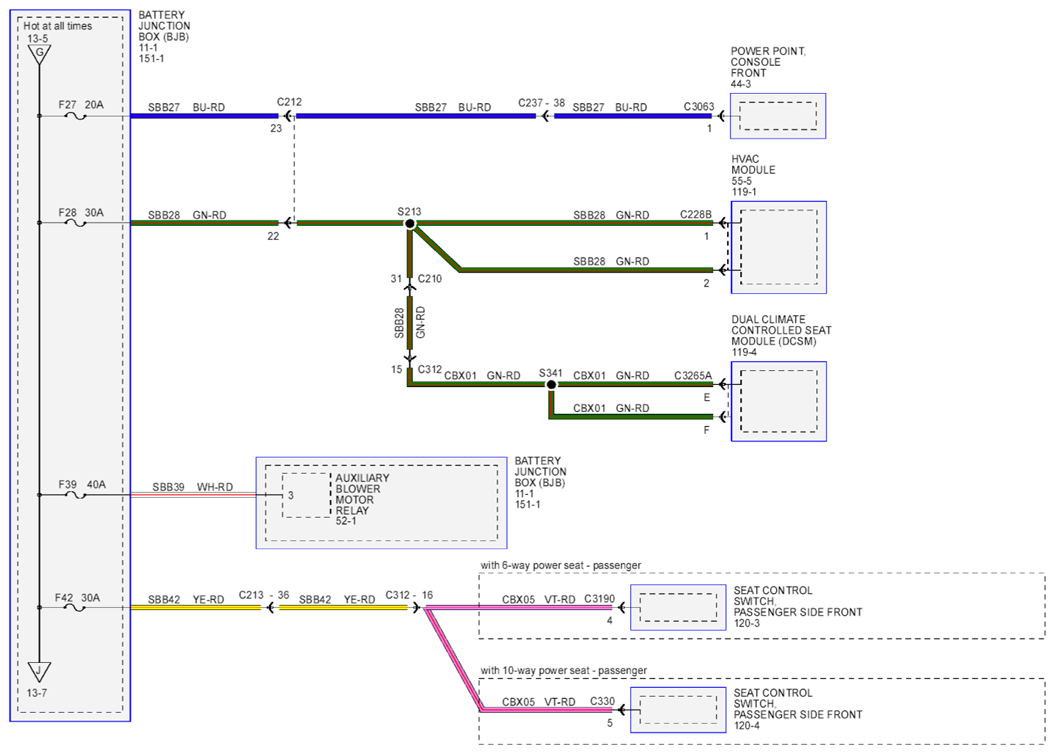

Fig 1: Power Distribution BCM Circuit Diagram (F27, F28, F39, F42)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
