Power Distribution_BCM
>>
F22, F47
F22, F47

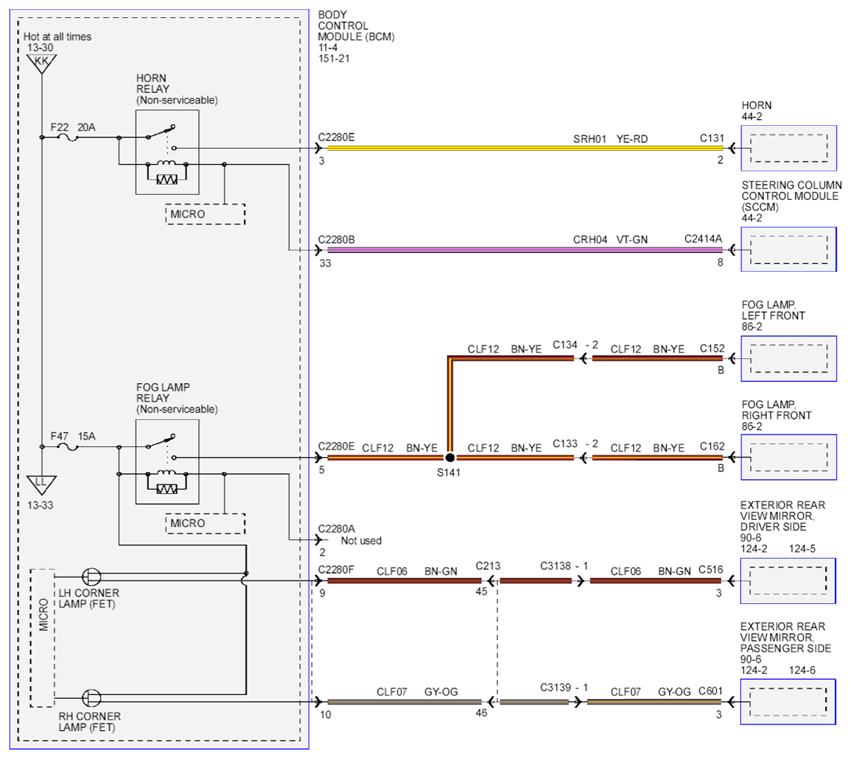

Fig 1: Power Distribution BCM Circuit Diagram (F22, F47)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
