Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Power Distribution_BCM
>>
F17, F18, F19, F20, F21, F22
F17, F18, F19, F20, F21, F22

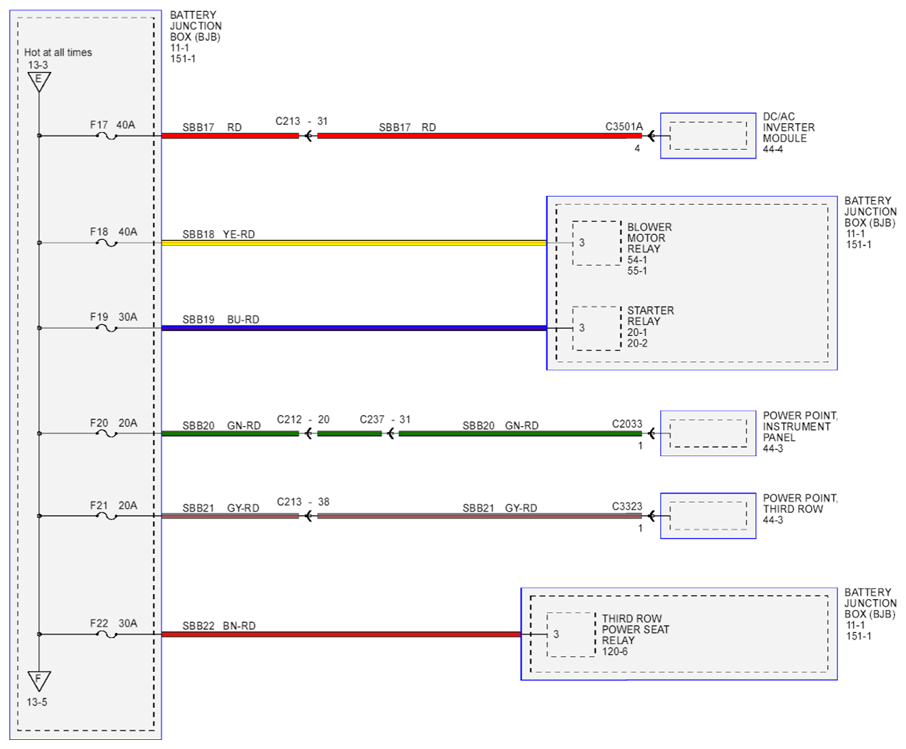

Fig 1: Power Distribution BCM Circuit Diagram (F17, F18, F19, F20, F21, F22)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
