F14, F43, F44

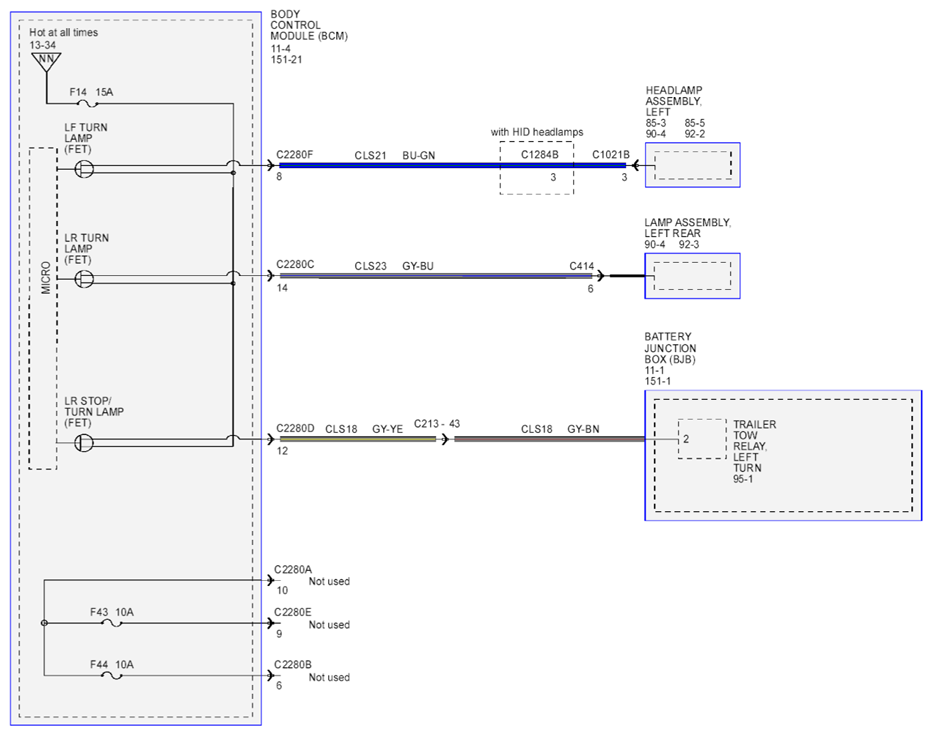

Fig 1: Power Distribution BCM Circuit Diagram (F14, F43, F44)

G07895325

Courtesy of FORD MOTOR CO.
