Power Distribution_BCM: F13

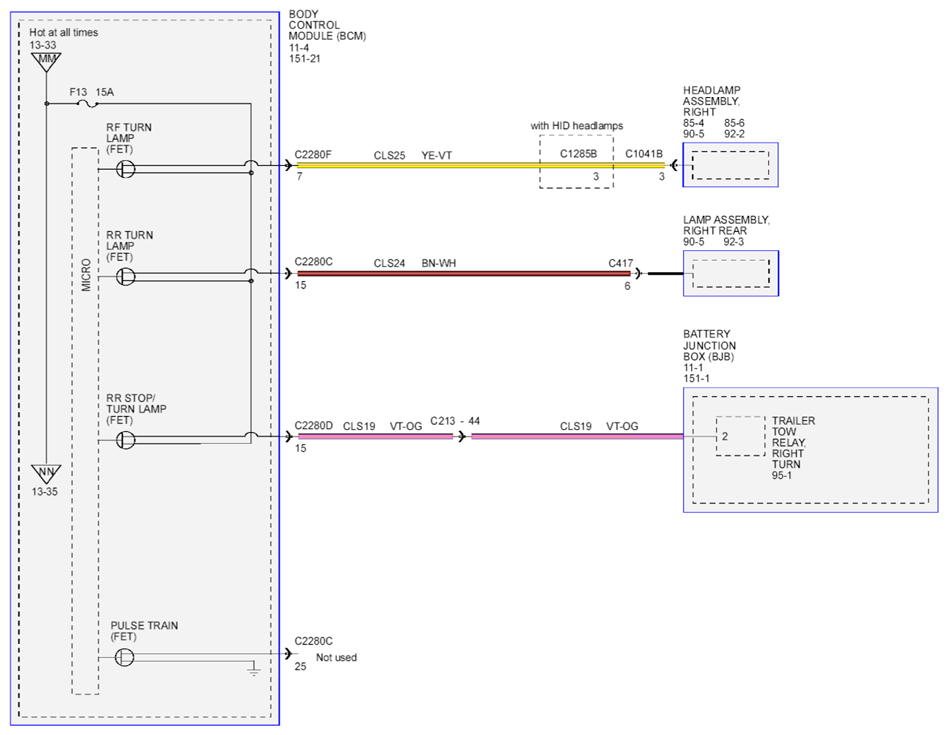

Fig 1: Power Distribution BCM Circuit Diagram (F13)

G07895324

Courtesy of FORD MOTOR CO.
