Power Distribution_BCM: F12

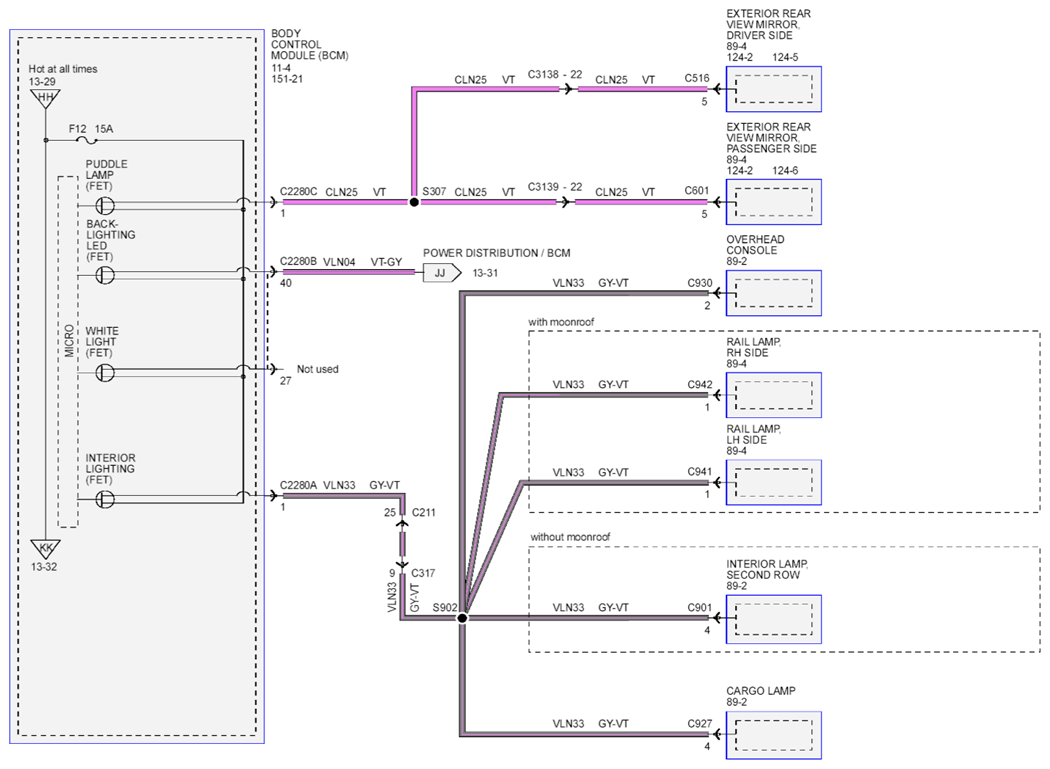

Fig 1: Power Distribution BCM Circuit Diagram (F12) (1 Of 2)
Courtesy of FORD MOTOR CO.

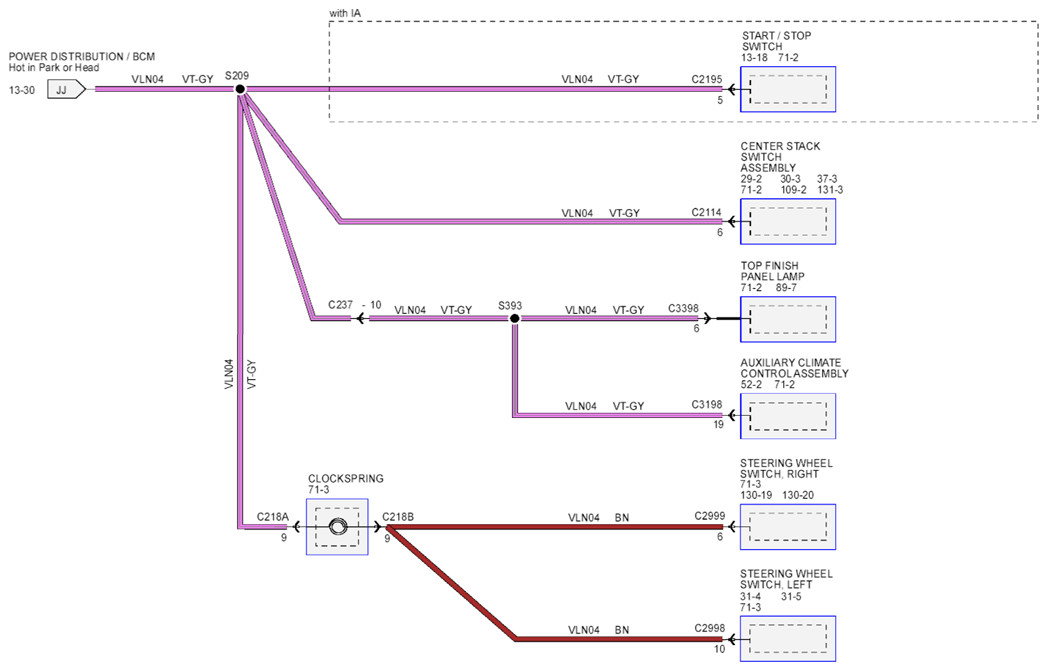

Fig 2: Power Distribution BCM Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
