Power Distribution_BCM
>>
F11, F24, F28, F29
F11, F24, F28, F29

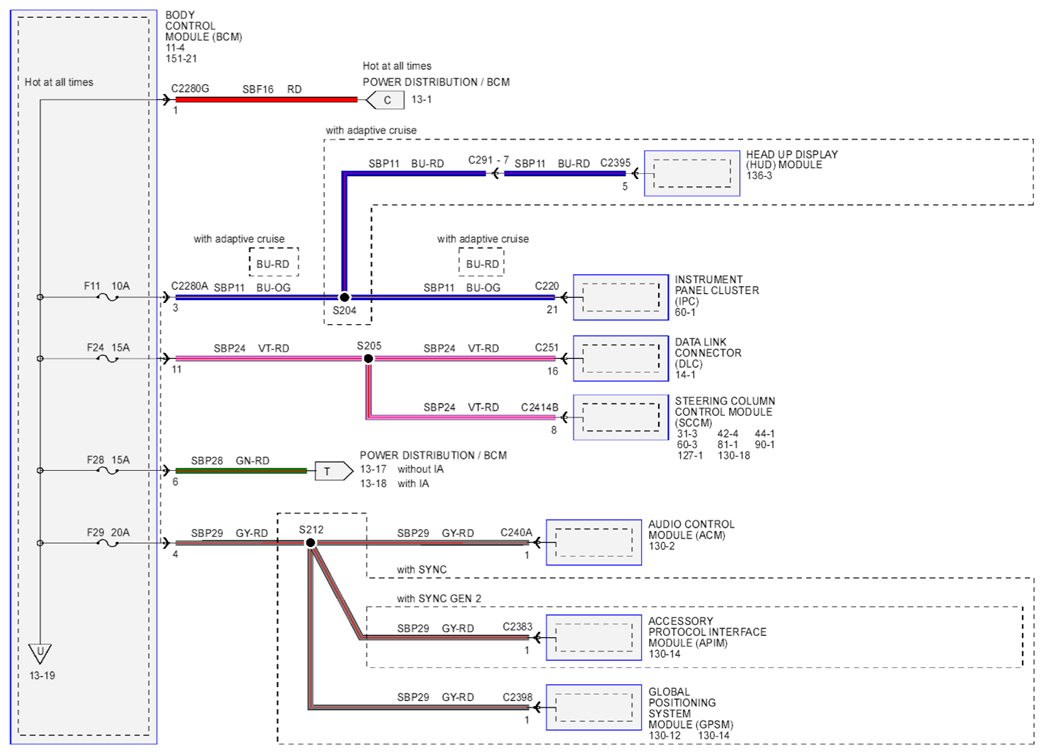

Fig 1: Power Distribution BCM Circuit Diagram (F11, F24, F28, F29)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
