Ford
>>
2012
>>
Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Passive Anti-Theft System
>>
Without IA
Without IA

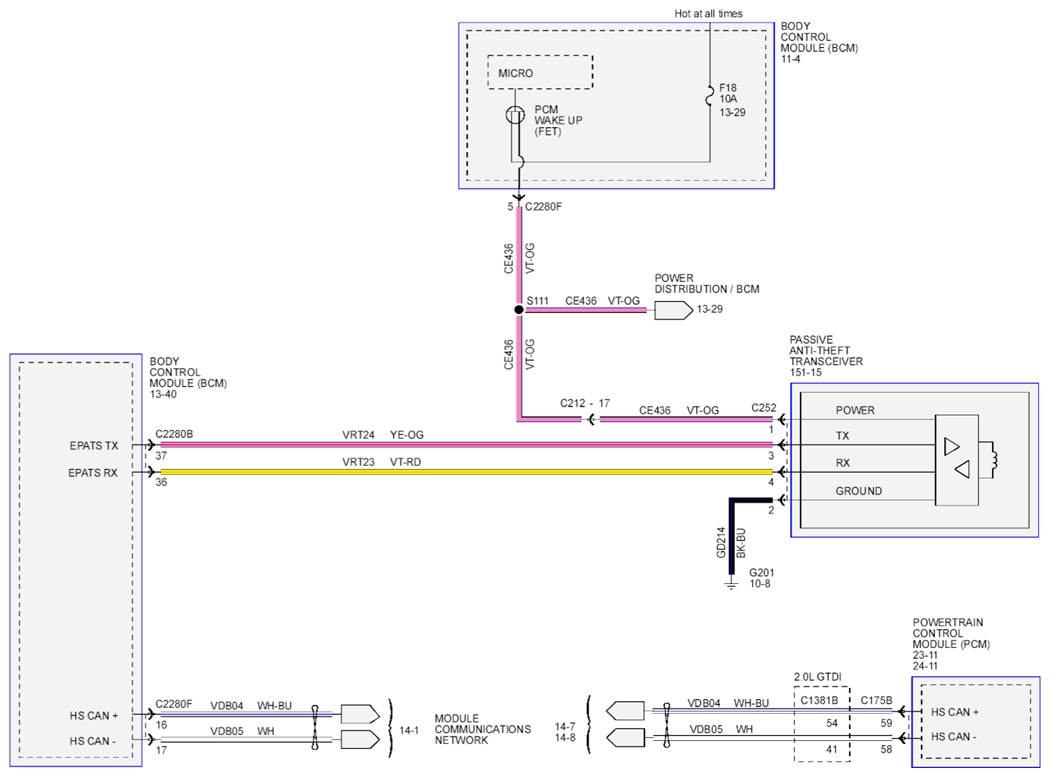

Fig 1: Passive Anti-Theft System Circuit Diagram (Without IA)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
