Rear View Camera - Sync Gen 2
Rear View Camera - Sync Gen 2

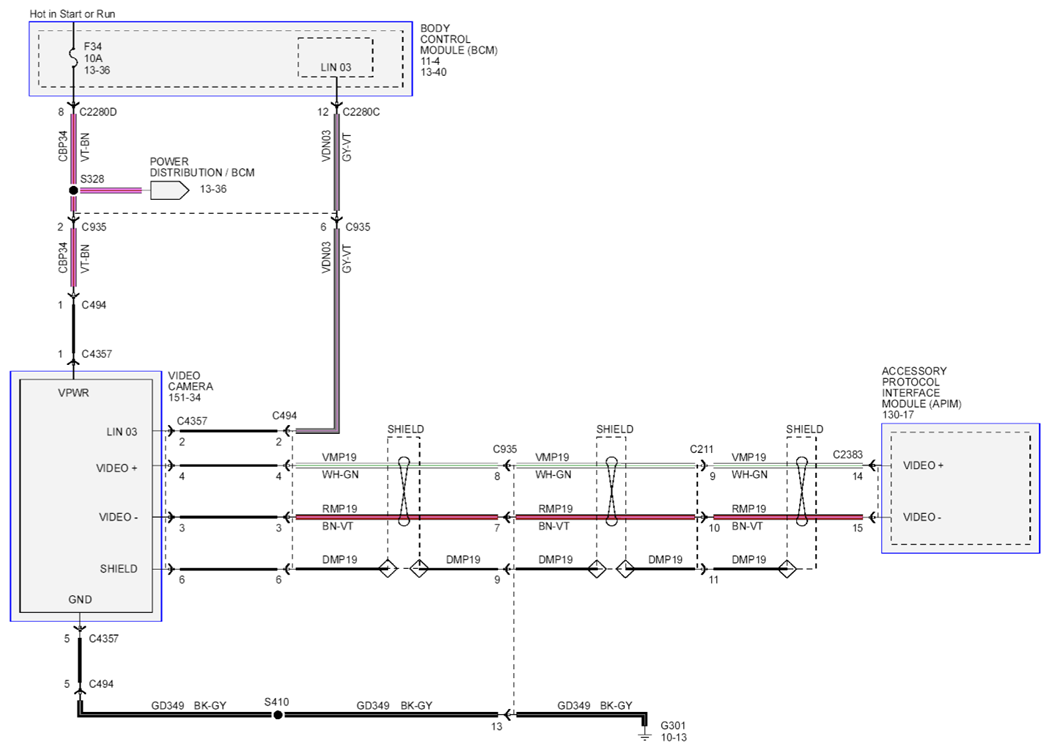

Fig 1: Parking Aid Circuit Diagram (Rear View Camera - Sync Gen 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
