Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Parking Aid
>>
Notes
Parking Aid: Notes

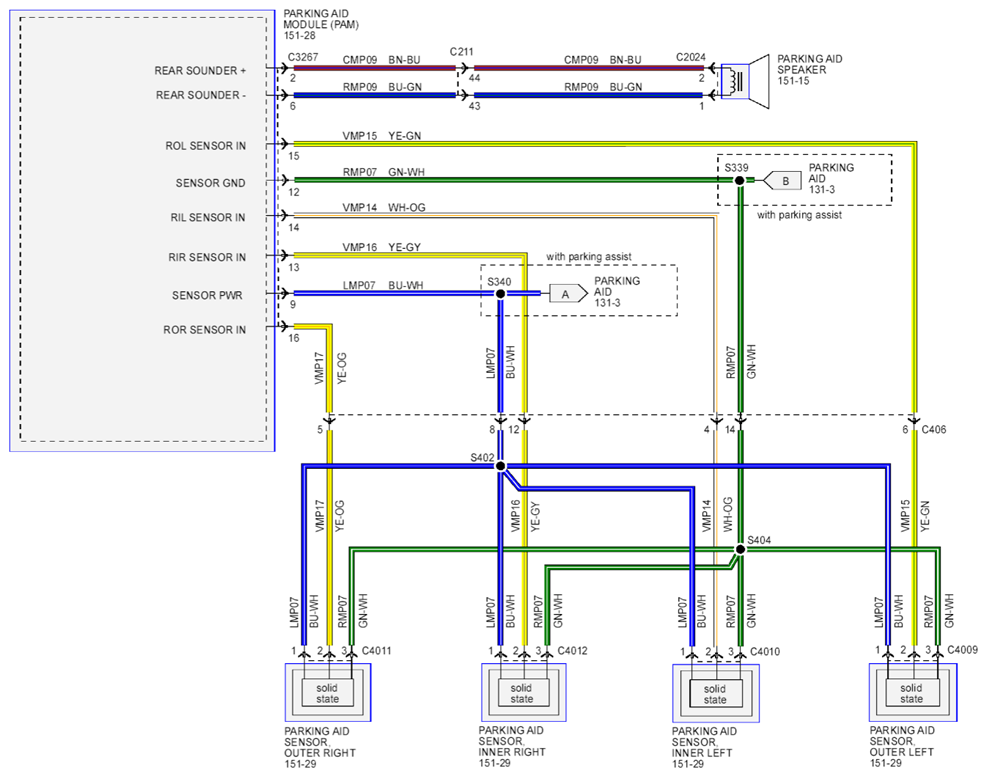

Fig 1: Parking Aid Circuit Diagram
Courtesy of FORD MOTOR CO.

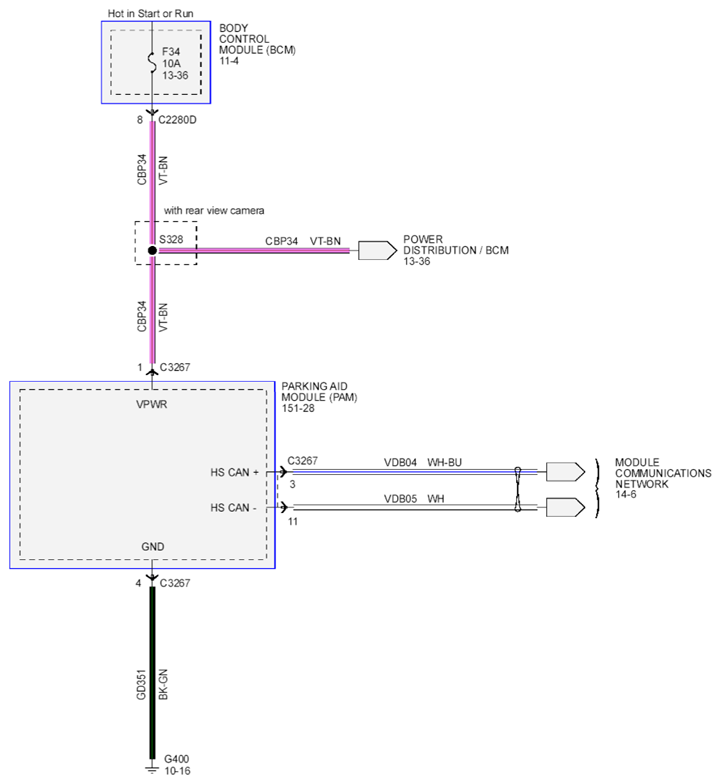

Fig 2: Parking Aid Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
