Sync Gen 2

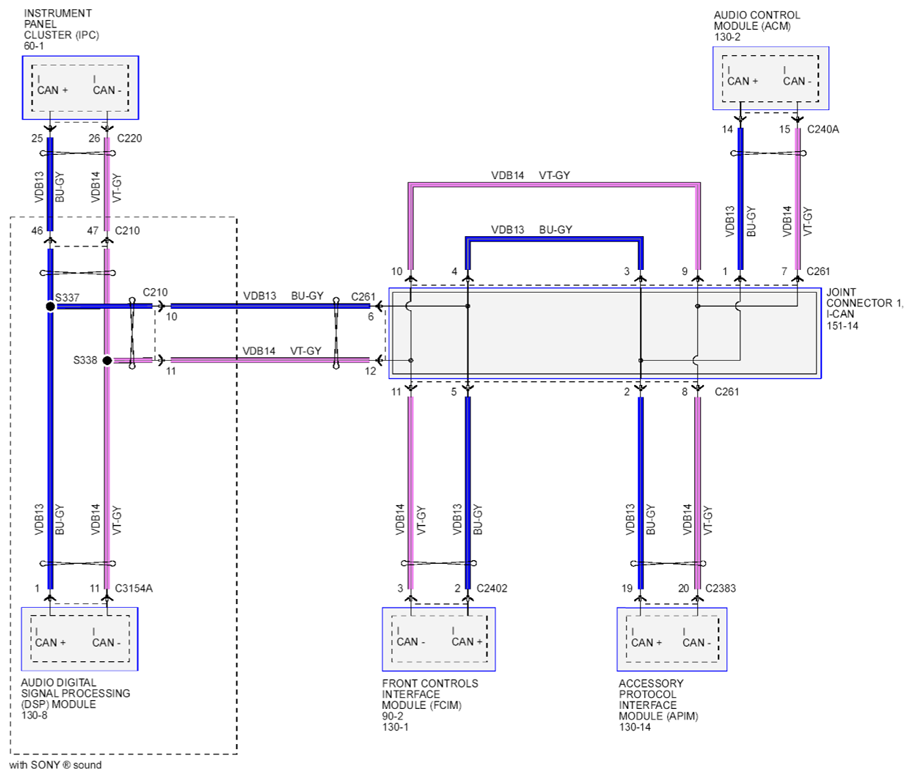

Fig 1: Module Communication Network Circuit Diagram (SYNC GEN 2) (1 Of 4)
G07895333Courtesy of FORD MOTOR CO.

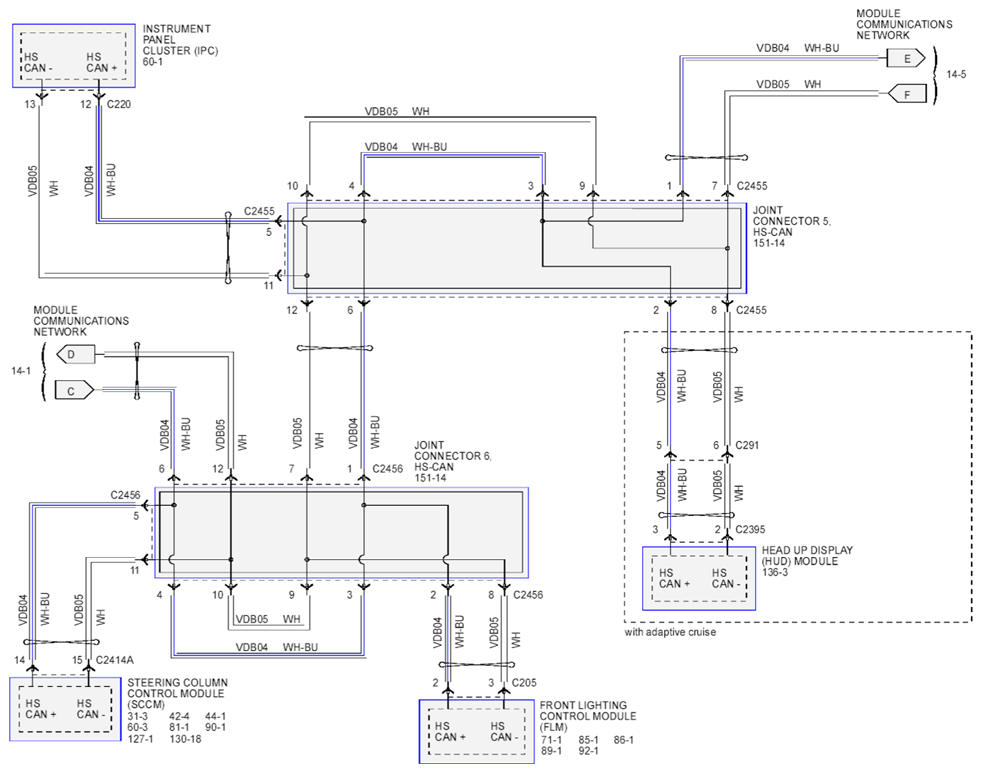

Fig 2: Module Communication Network Circuit Diagram (SYNC GEN 2) (2 Of 4)
G07895334Courtesy of FORD MOTOR CO.

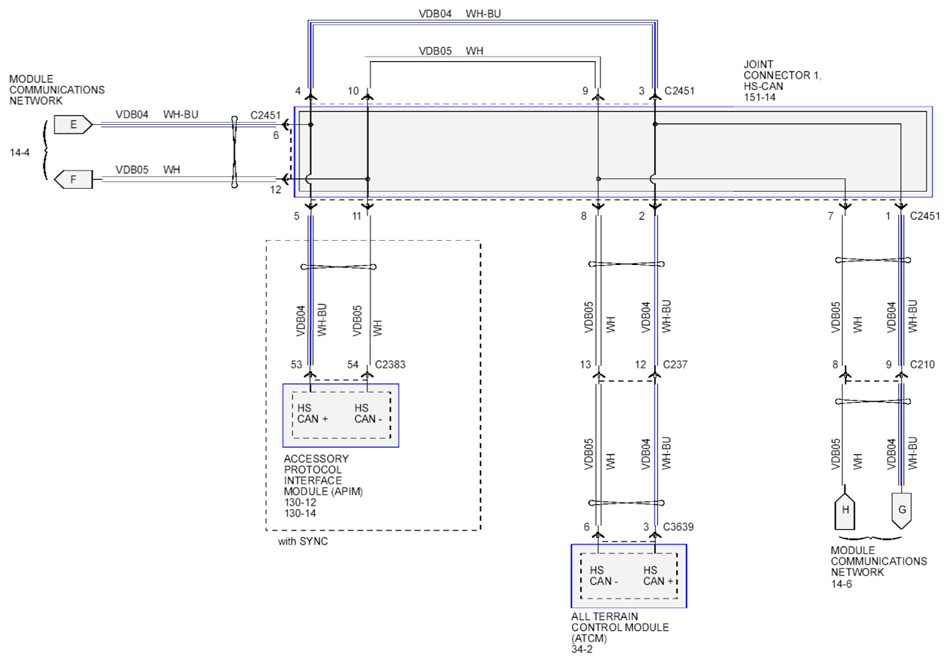

Fig 3: Module Communication Network Circuit Diagram (SYNC GEN 2) (3 Of 4)
G07895335Courtesy of FORD MOTOR CO.

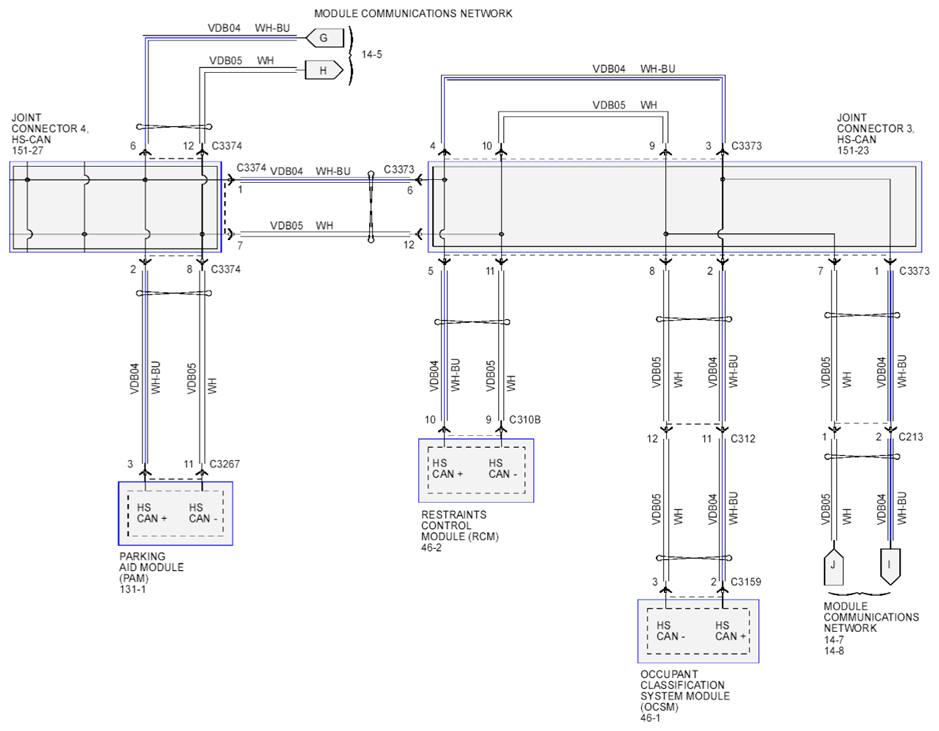

Fig 4: Power Distribution BCM Circuit Diagram (SYNC GEN 2) (4 Of 4)
G07895336Courtesy of FORD MOTOR CO.
