Memory Seats

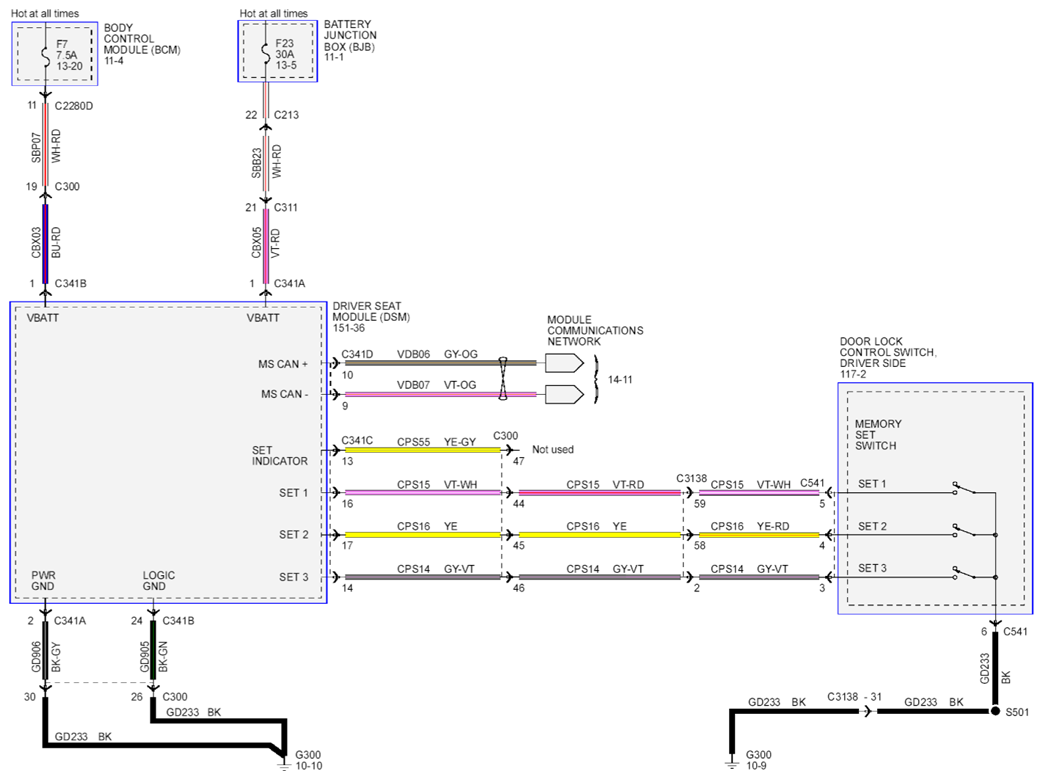

Fig 1: Memory Seats Circuit Diagram (1 Of 5)

G07895505

Courtesy of FORD MOTOR CO.

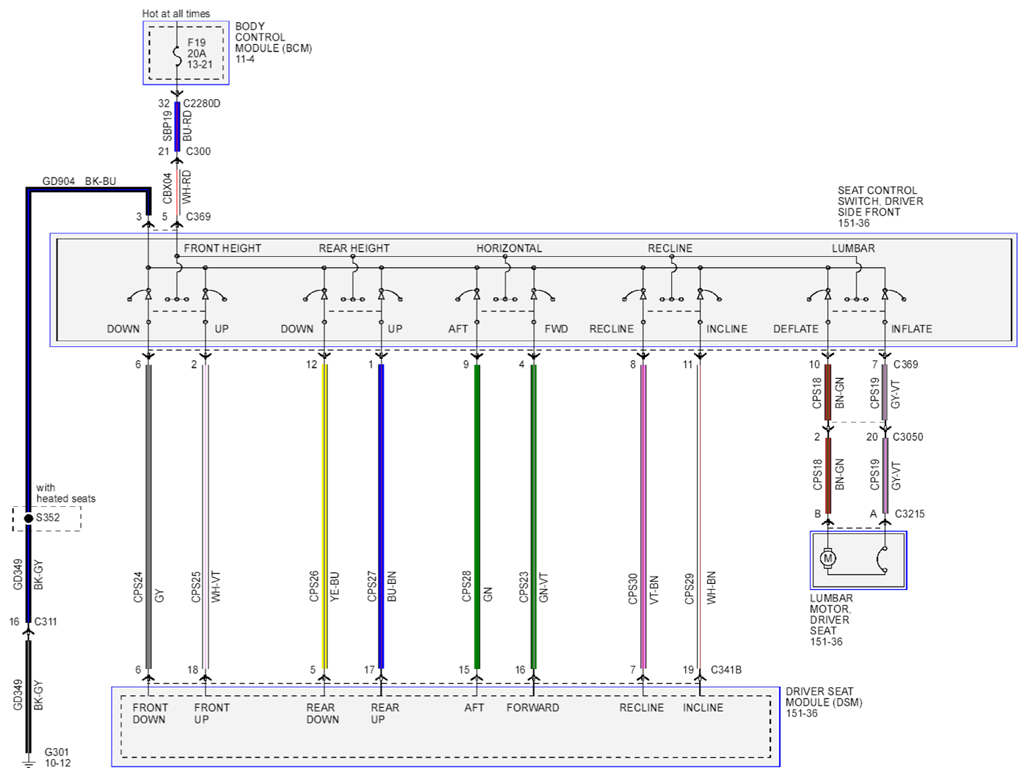

Fig 2: Memory Seats Circuit Diagram (2 Of 5)

G07895506

Courtesy of FORD MOTOR CO.

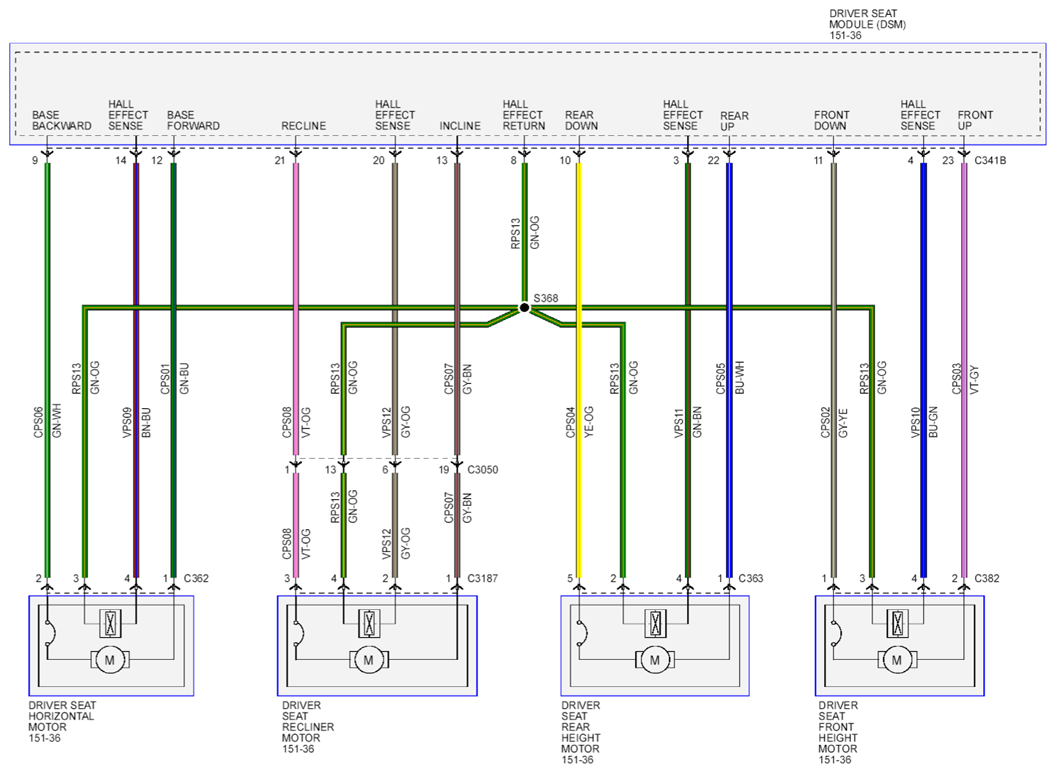

Fig 3: Memory Seats Circuit Diagram (3 Of 5)

G07895507

Courtesy of FORD MOTOR CO.

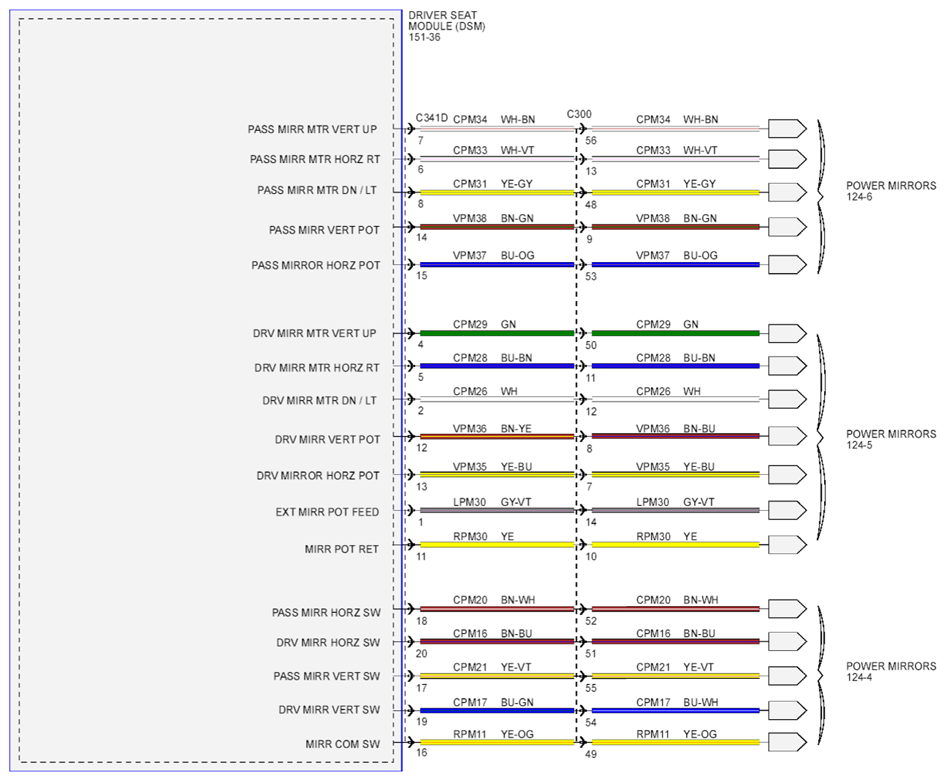

Fig 4: Memory Seats Circuit Diagram (4 Of 5)

G07895508

Courtesy of FORD MOTOR CO.

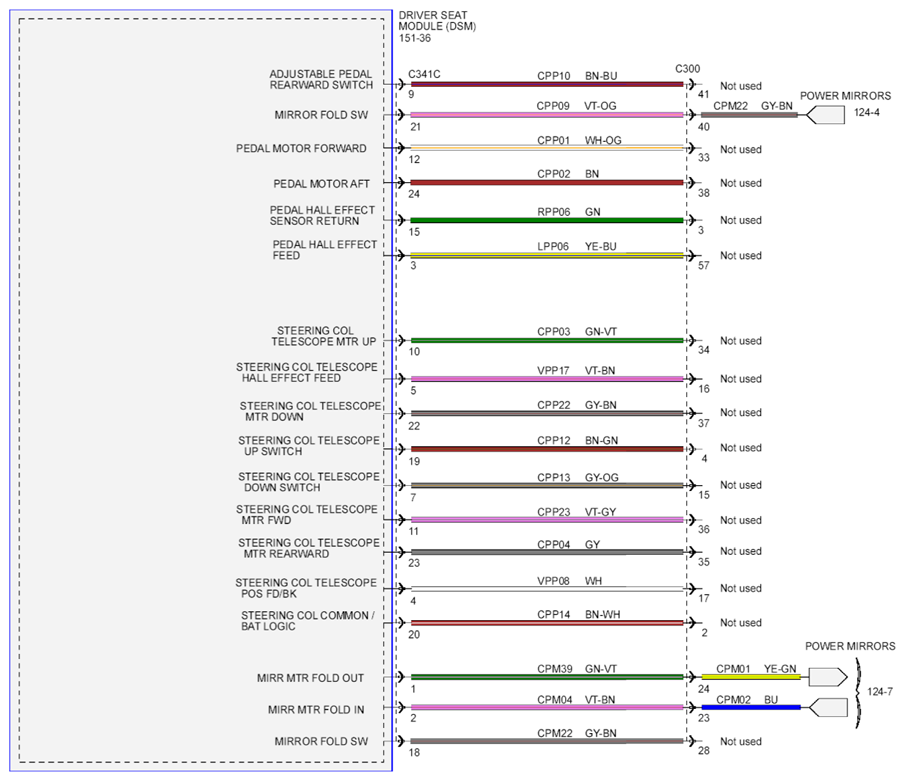

Fig 5: Memory Seats Circuit Diagram (5 Of 5)

G07895509

Courtesy of FORD MOTOR CO.
