With Ambient Lighting

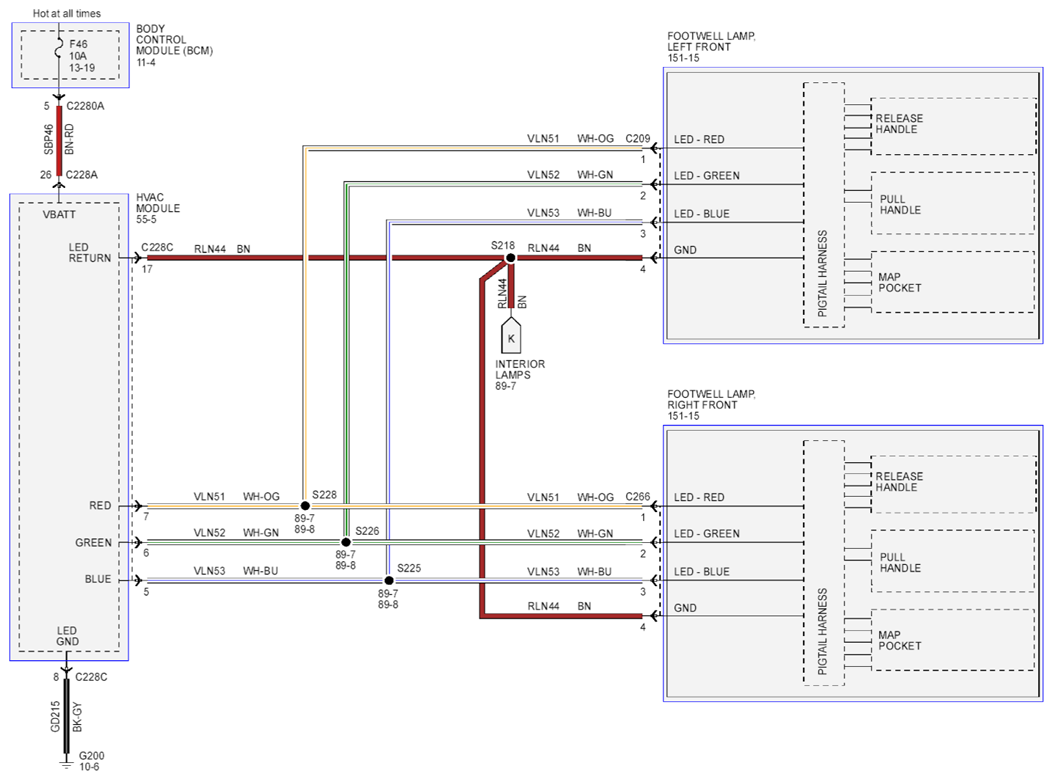

Fig 1: Interior Lamps Circuit Diagram (With Ambient Lighting) (1 Of 3)
G07895446Courtesy of FORD MOTOR CO.

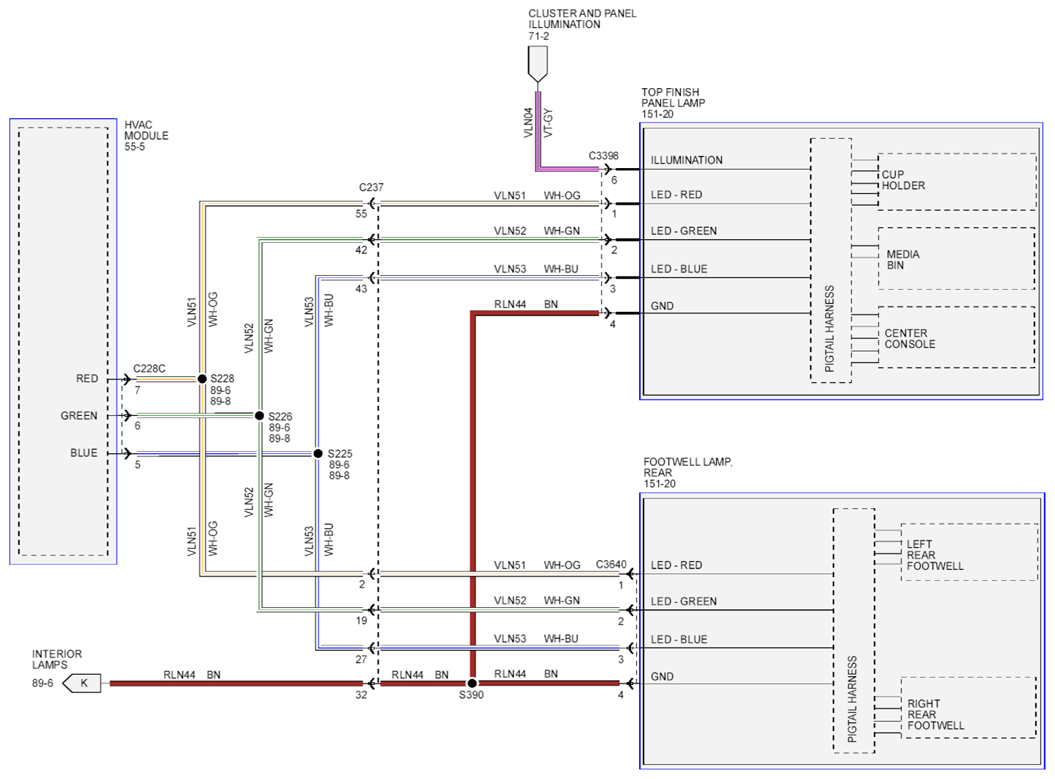

Fig 2: Interior Lamps Circuit Diagram (With Ambient Lighting) (2 Of 3)
G07895447Courtesy of FORD MOTOR CO.

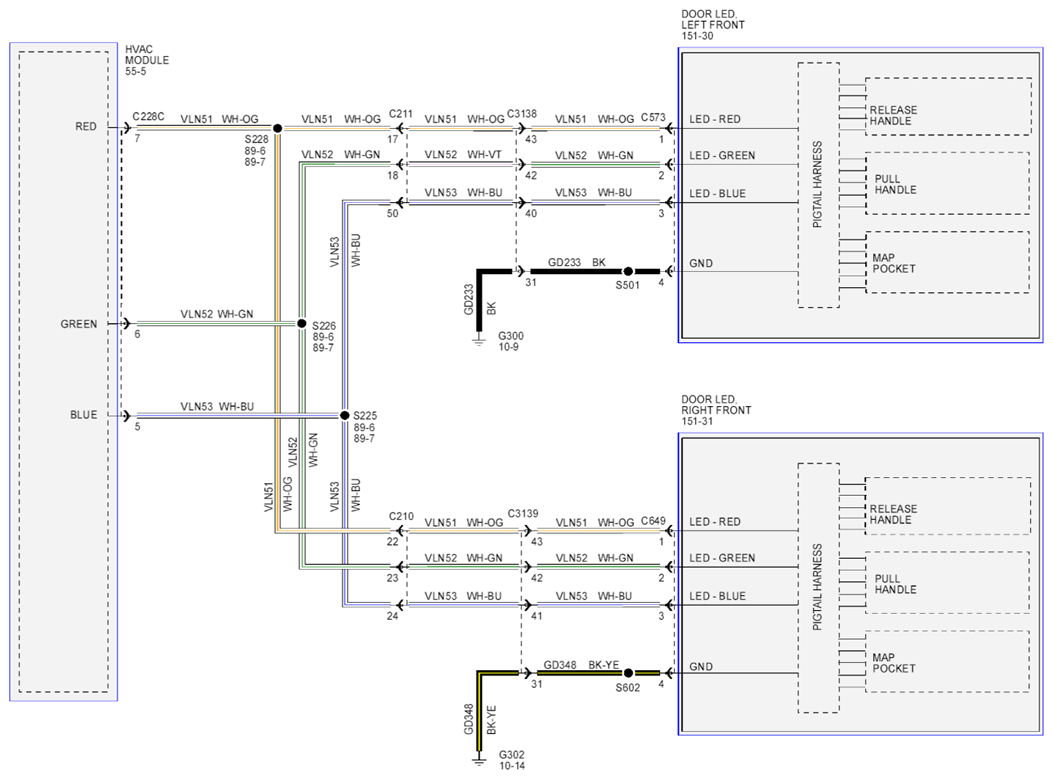

Fig 3: Interior Lamps Circuit Diagram (With Ambient Lighting) (3 Of 3)
G07895448Courtesy of FORD MOTOR CO.
