Heated Window
>>
With Heated Mirrors
With Heated Mirrors

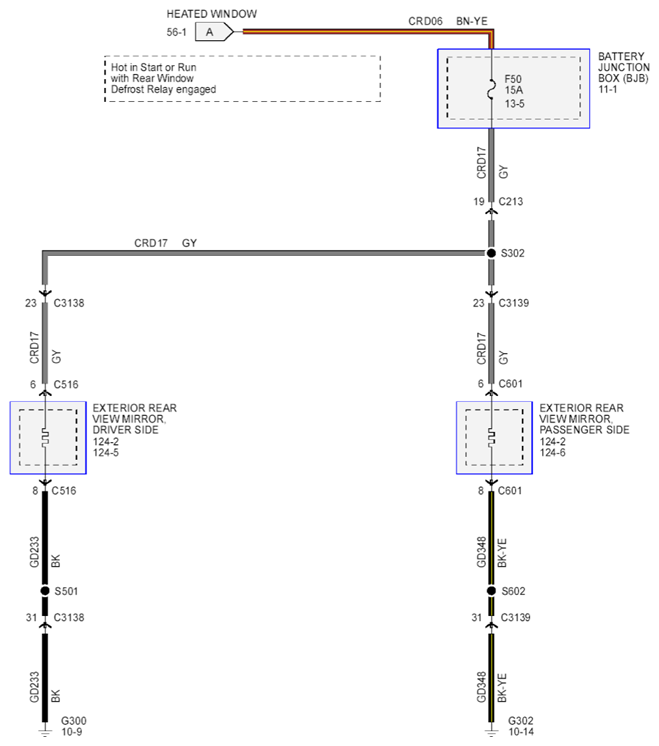

Fig 1: Heated Window (With Heated Mirrors) Circuit Diagram (View 2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
