Ford
>>
2012
>>
Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Headlamps_Autolamps
>>
With AUTOLAMPS
With AUTOLAMPS

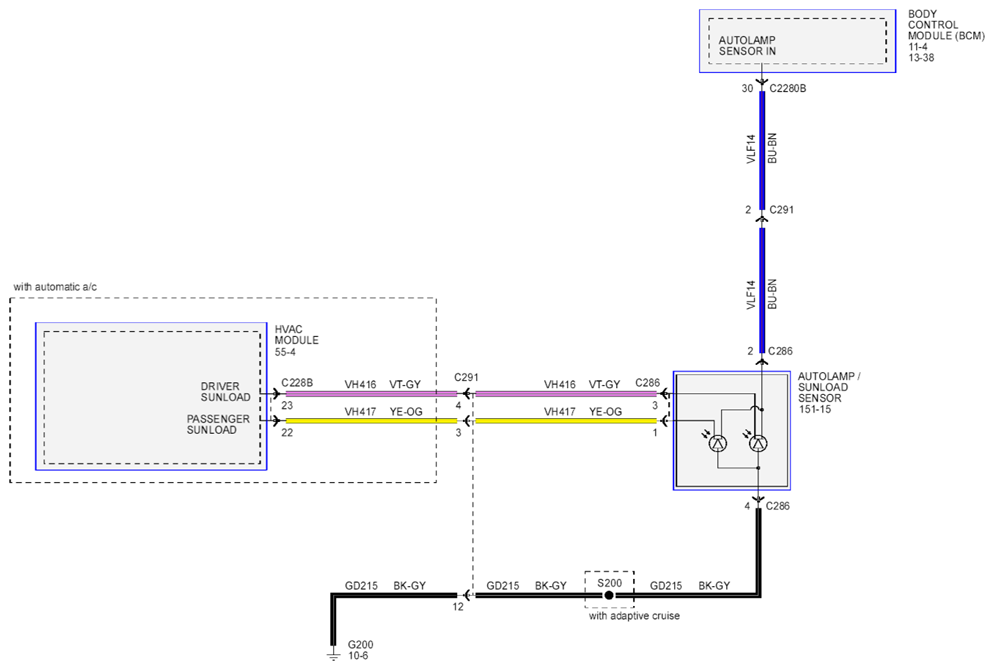

Fig 1: Headlamps And Autolamps Circuit Diagram (With Autolamps) (View 2 Of 6)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
