Home >> Ford >> 2012 >> Explorer Limited, 3.5 8, AWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams >> Headlamps_Autolamps >> Notes

OEM Wiring Diagrams: Headlamps_Autolamps: Notes

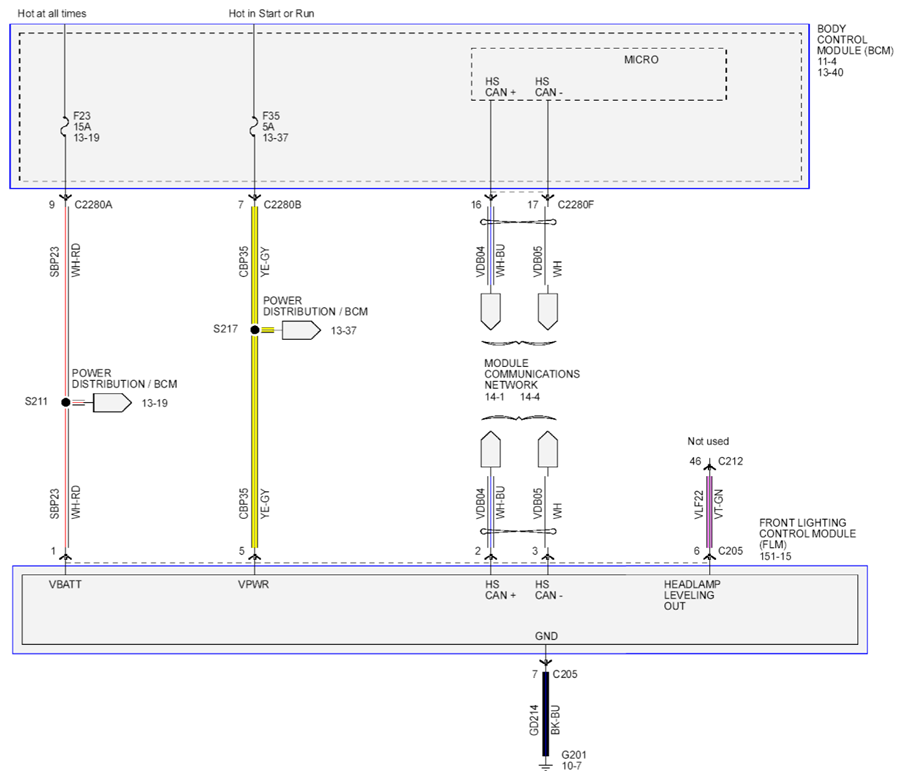

Fig 1: Headlamps And Autolamps Circuit Diagram (View 1 Of 6)

G07895433

Courtesy of FORD MOTOR CO.
