Electronic Engine Controls - 3.5L TIVCT

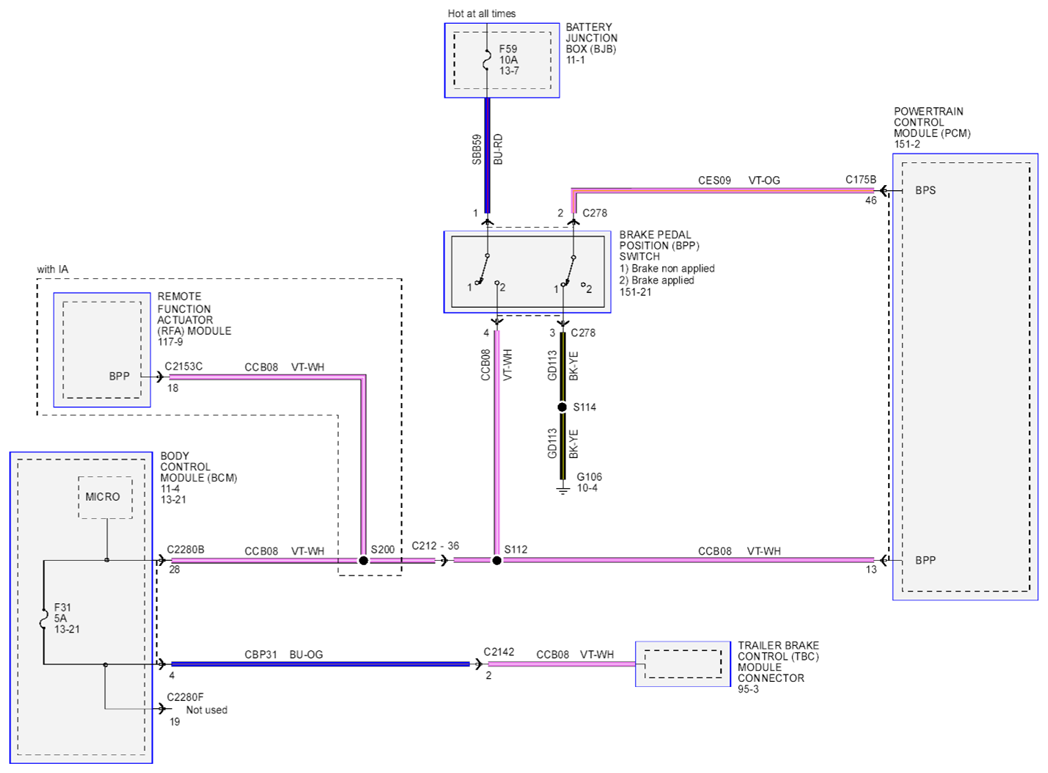

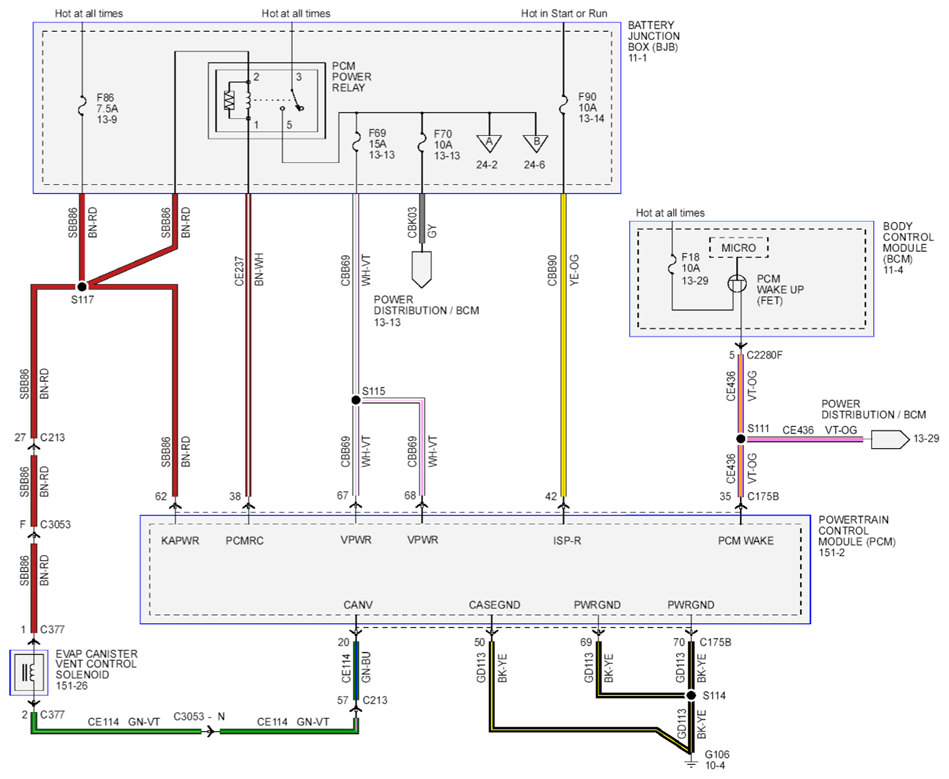

Fig 1: Electronic Engine Controls Circuit Diagram - 3.5L TIVCT (1 Of 12)

Courtesy of FORD MOTOR CO.

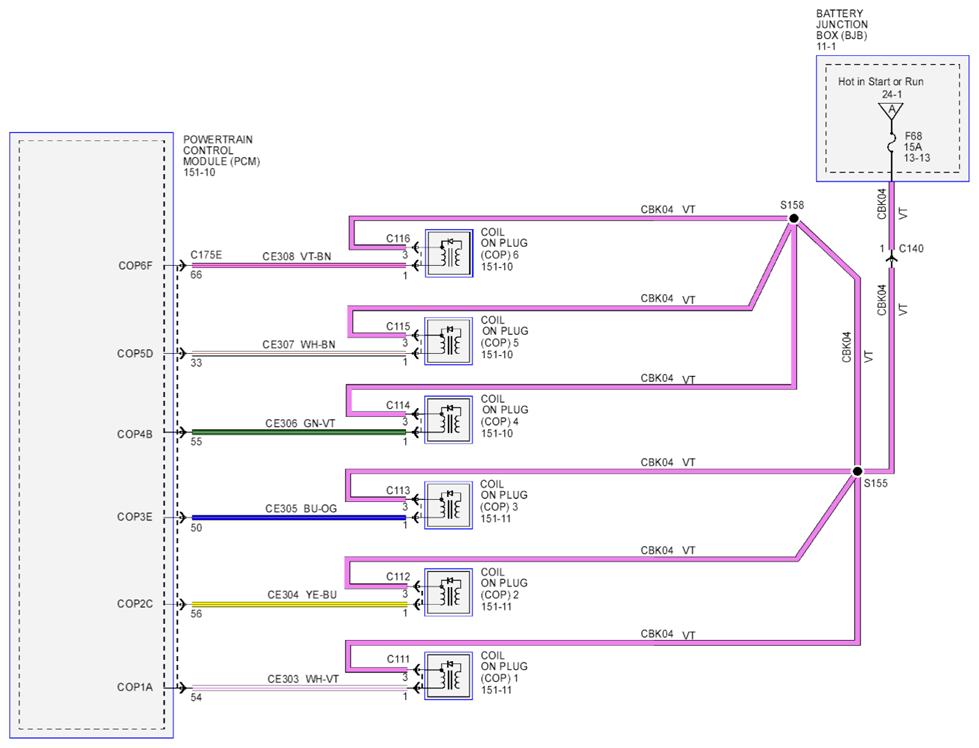

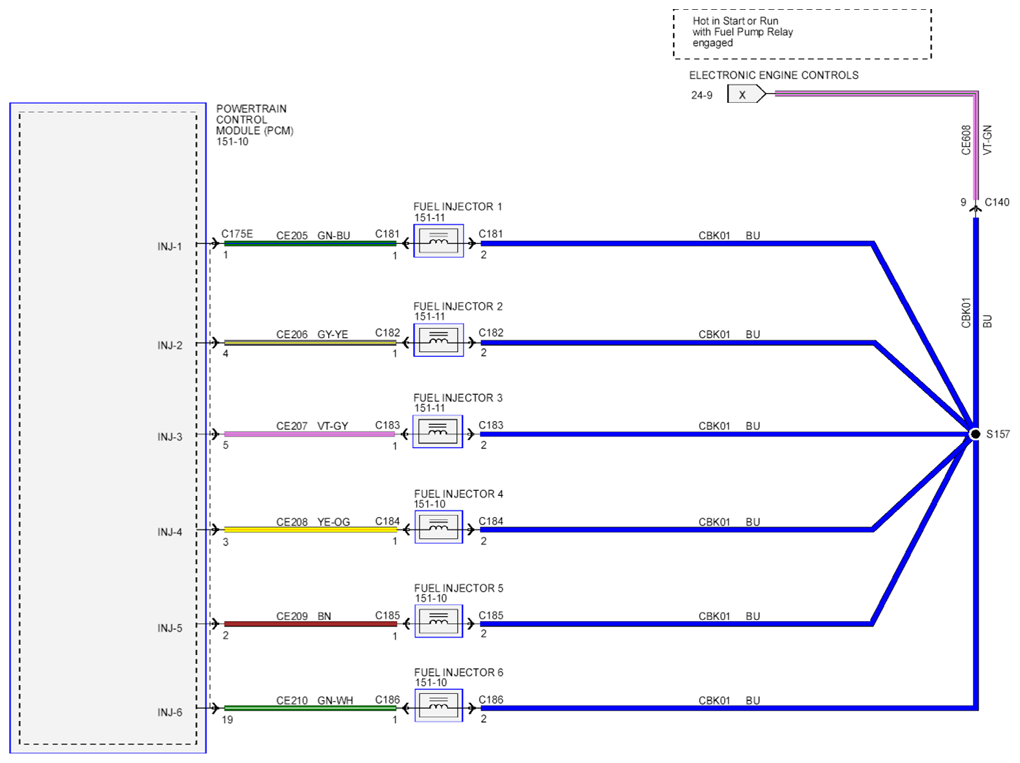

Fig 2: Electronic Engine Controls Circuit Diagram - 3.5L TIVCT (2 Of 12)

Courtesy of FORD MOTOR CO.

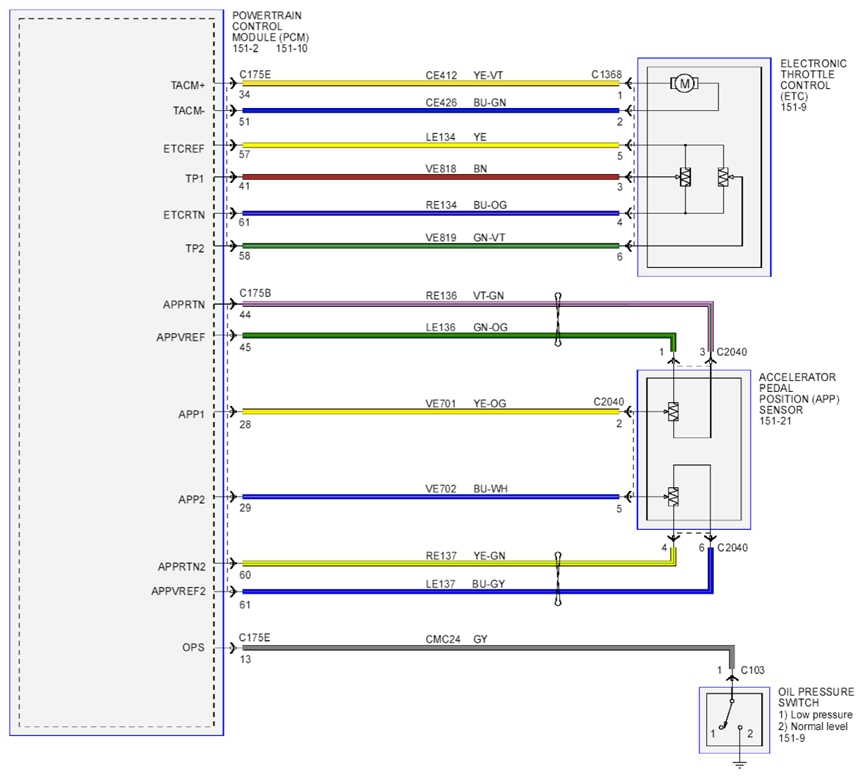

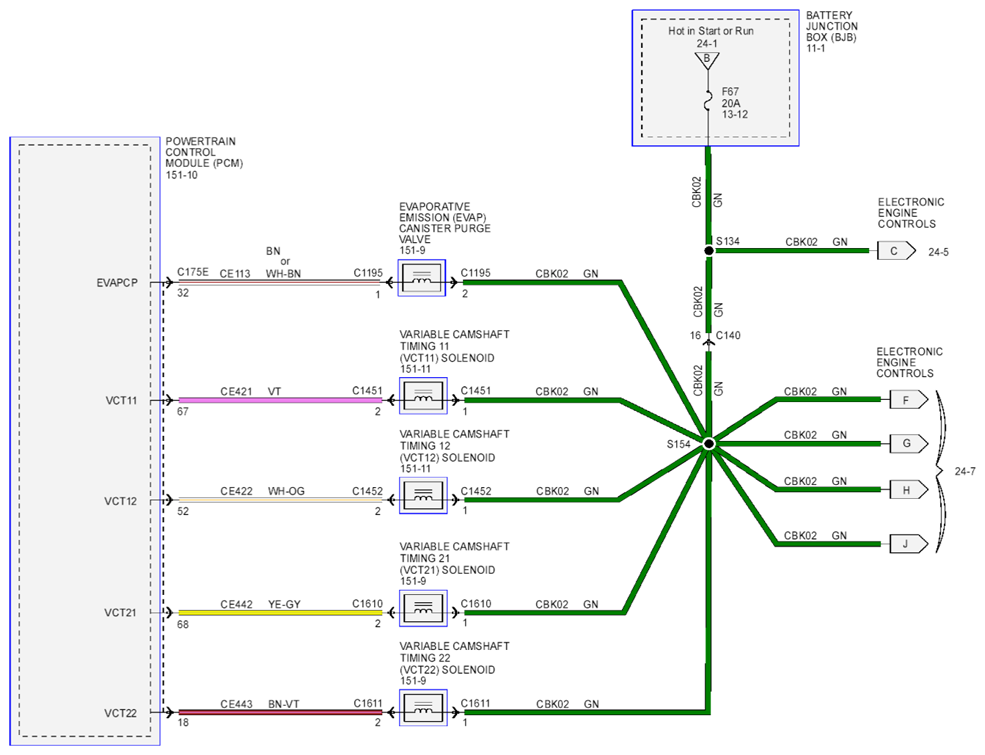

Fig 3: Electronic Engine Controls Circuit Diagram - 3.5L TIVCT (3 Of 12)

Courtesy of FORD MOTOR CO.

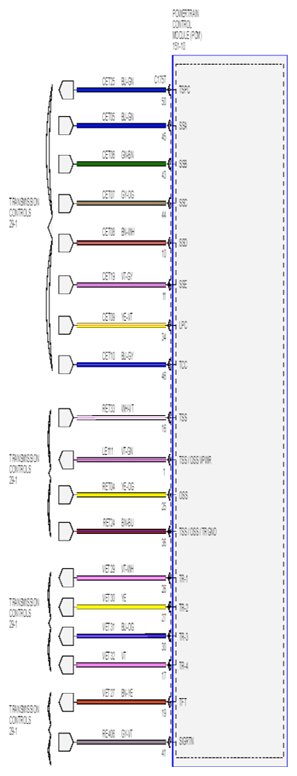

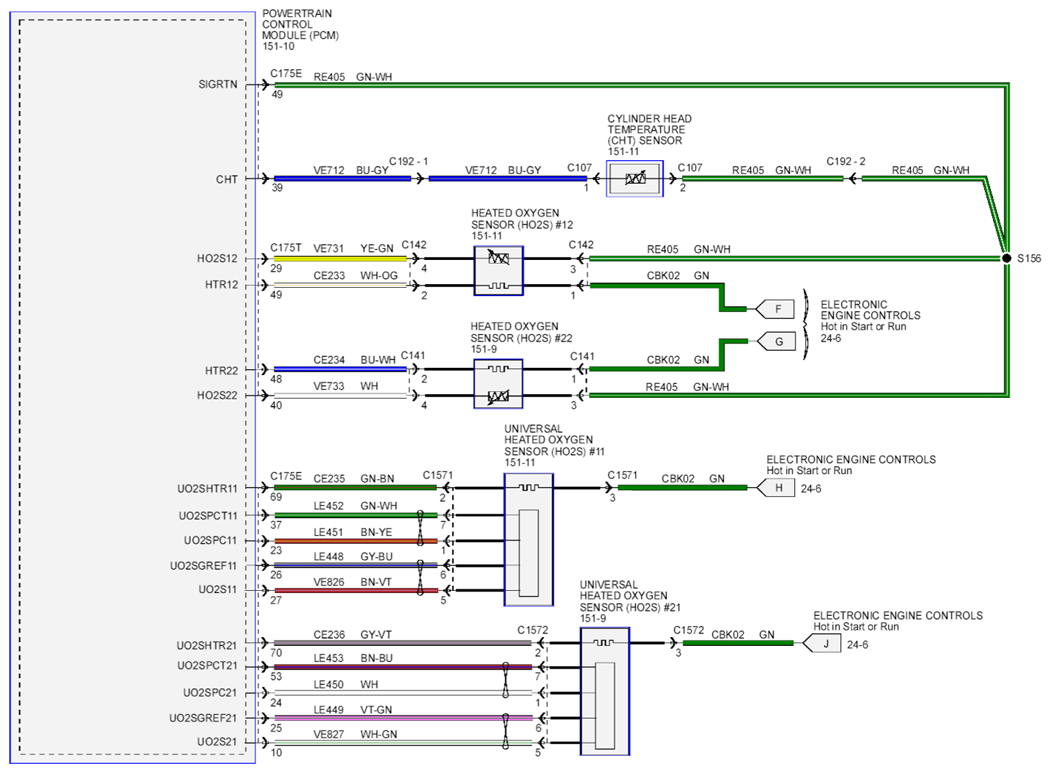

Fig 4: Electronic Engine Controls Circuit Diagram - 3.5L TIVCT (4 Of 12)

Courtesy of FORD MOTOR CO.

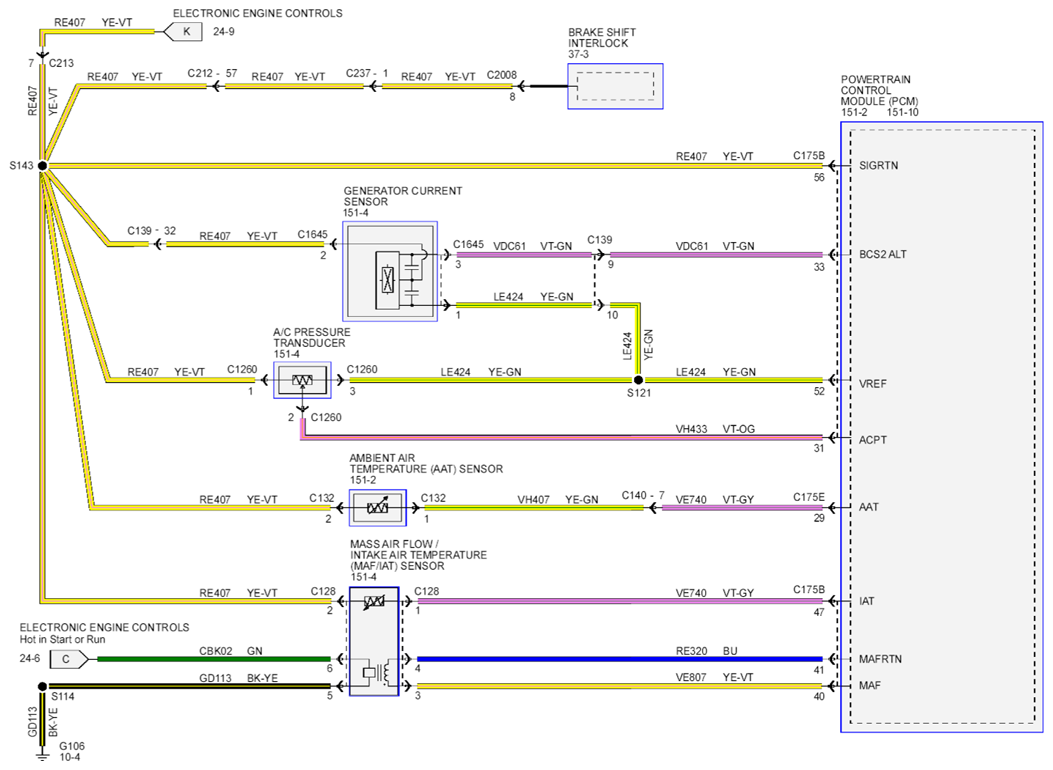

Fig 5: Electronic Engine Controls Circuit Diagram - 3.5L TIVCT (5 Of 12)

Courtesy of FORD MOTOR CO.

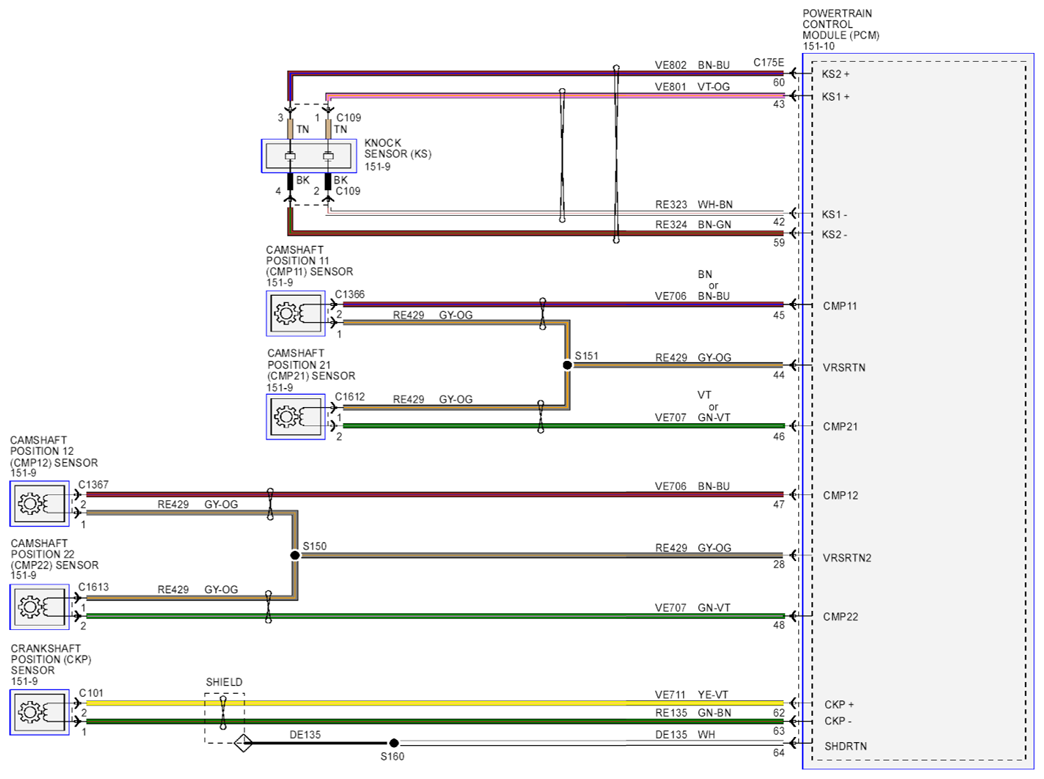

Fig 6: Electronic Engine Controls Circuit Diagram - 3.5L TIVCT (6 Of 12)

Courtesy of FORD MOTOR CO.

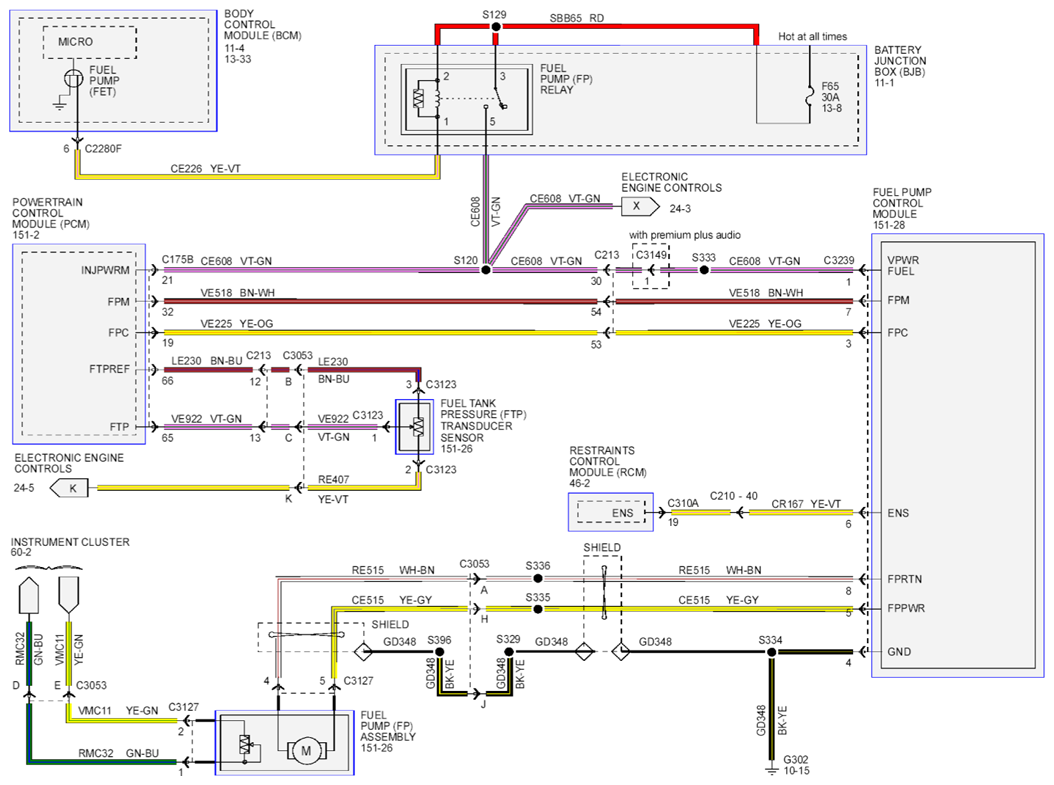

Fig 7: Electronic Engine Controls Circuit Diagram - 3.5L TIVCT (7 Of 12)

Courtesy of FORD MOTOR CO.

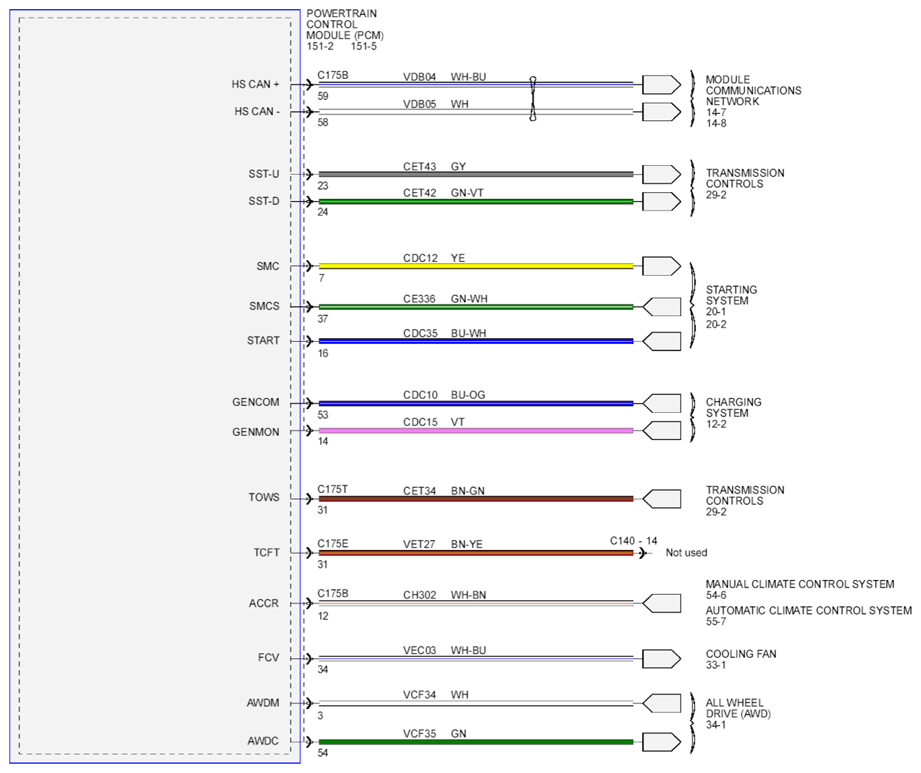

Fig 8: Electronic Engine Controls Circuit Diagram - 3.5L TIVCT (8 Of 12)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls Circuit Diagram - 3.5L TIVCT (9 Of 12)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Controls Circuit Diagram - 3.5L TIVCT (10 Of 12)

Courtesy of FORD MOTOR CO.

Fig 11: Electronic Engine Controls Circuit Diagram - 3.5L TIVCT (11 Of 12)

Courtesy of FORD MOTOR CO.

Fig 12: Electronic Engine Controls Circuit Diagram - 3.5L TIVCT (12 Of 12)

Courtesy of FORD MOTOR CO.
