Cruise Control: Notes

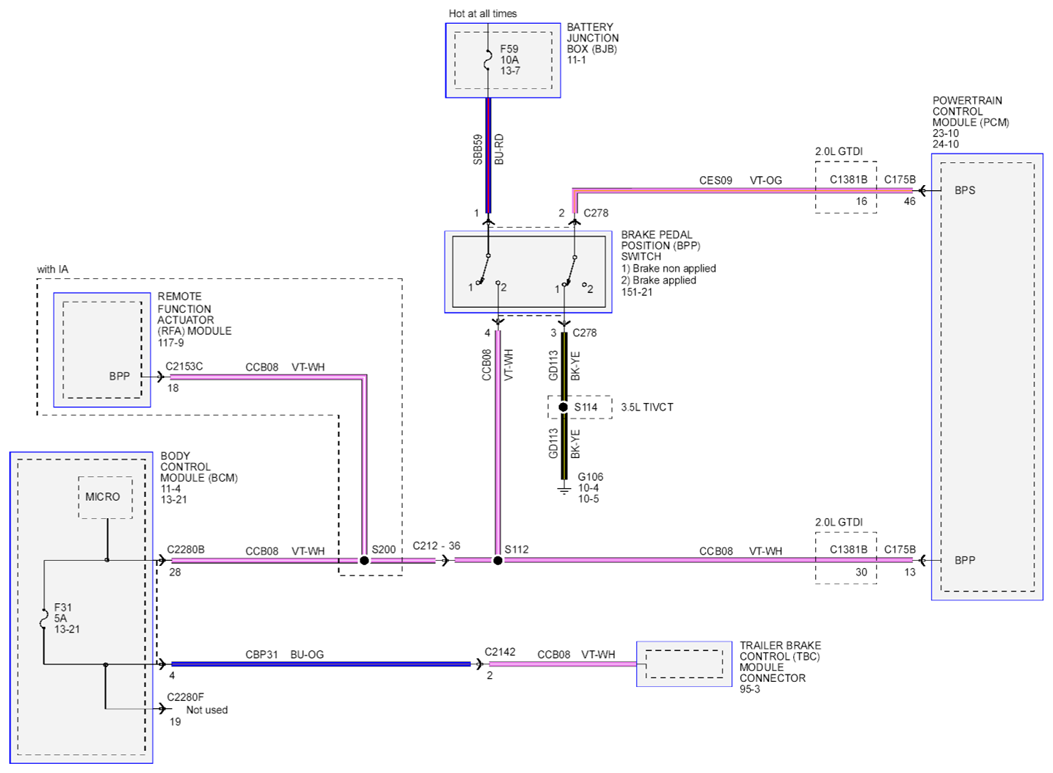

Fig 1: Cruise Control Circuit Diagram (View 1 Of 6)
G07895373Courtesy of FORD MOTOR CO.

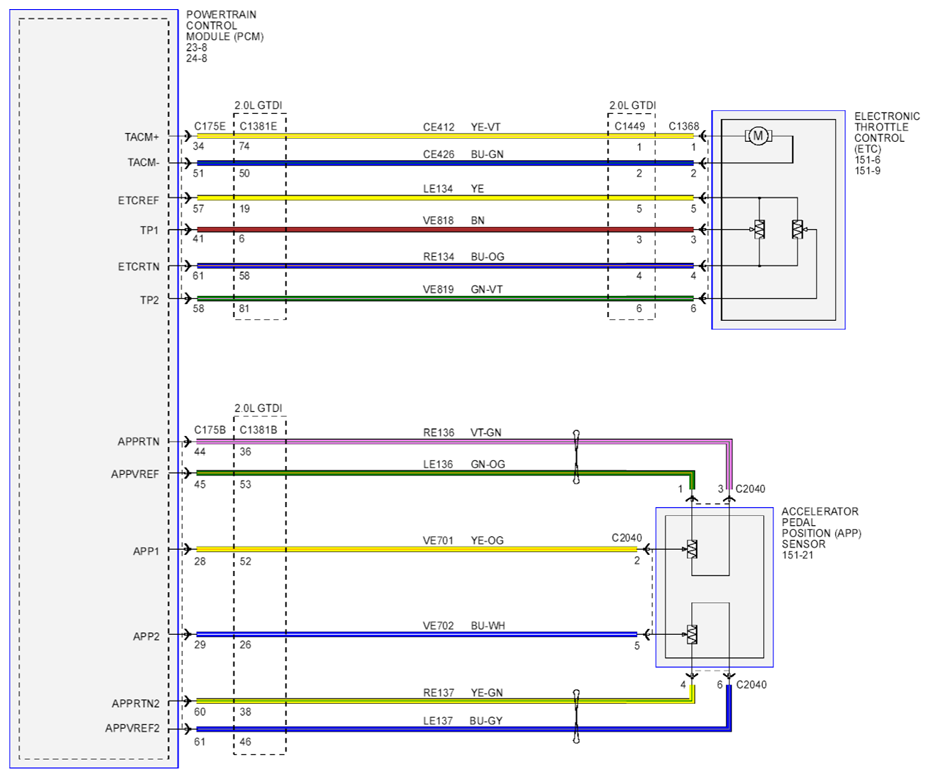

Fig 2: Cruise Control Circuit Diagram (View 2 Of 6)
G07895374Courtesy of FORD MOTOR CO.

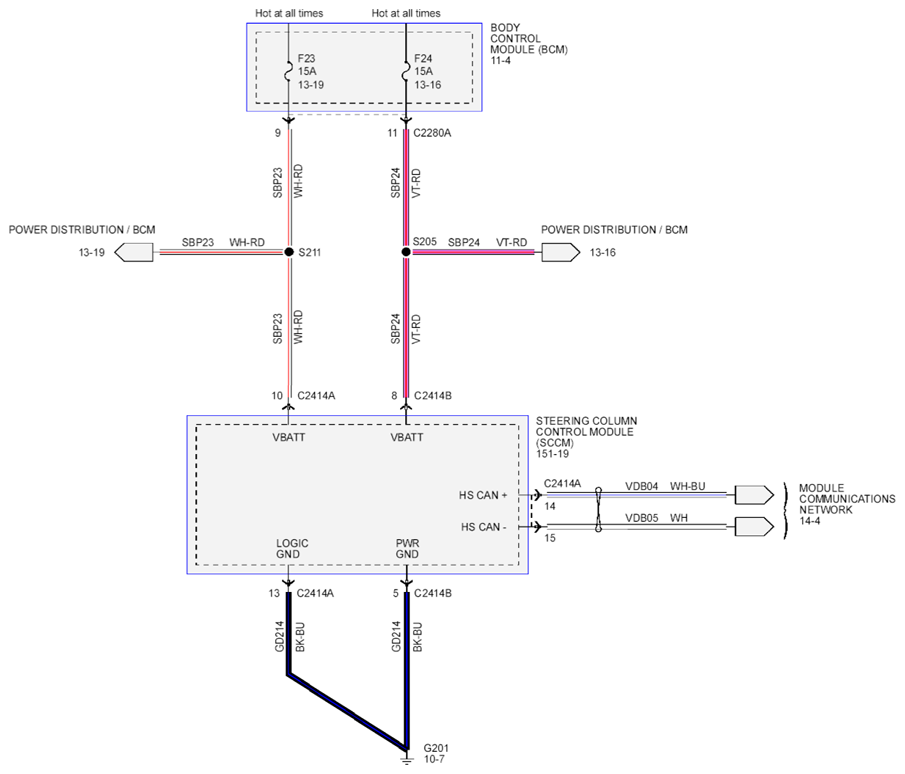

Fig 3: Cruise Control Circuit Diagram (View 3 Of 6)
G07895375Courtesy of FORD MOTOR CO.
