Cluster and Panel Illumination

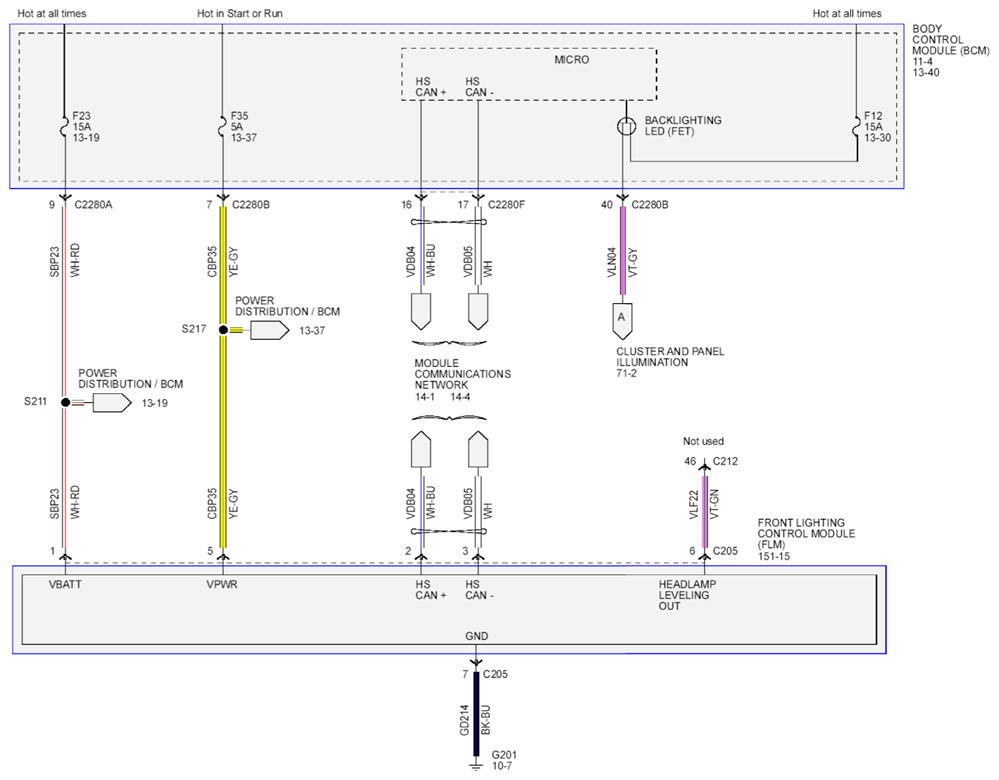

Fig 1: Cluster and Panel Illumination Circuit Diagram (View 1 Of 3)
G07895426Courtesy of FORD MOTOR CO.

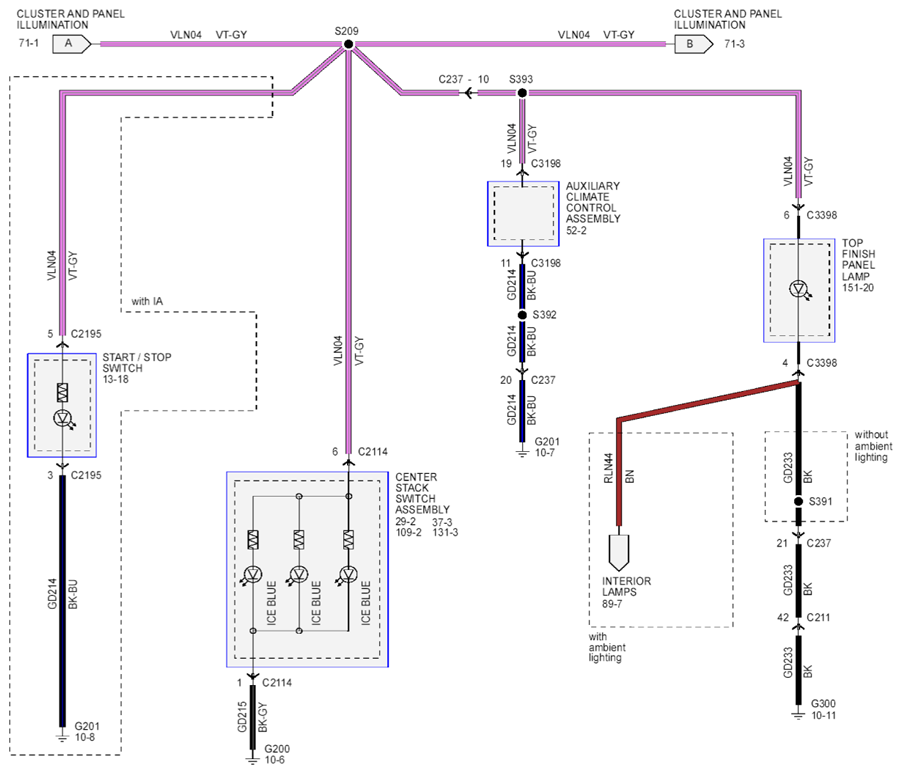

Fig 2: Cluster and Panel Illumination Circuit Diagram (View 2 Of 3)
G07895427Courtesy of FORD MOTOR CO.

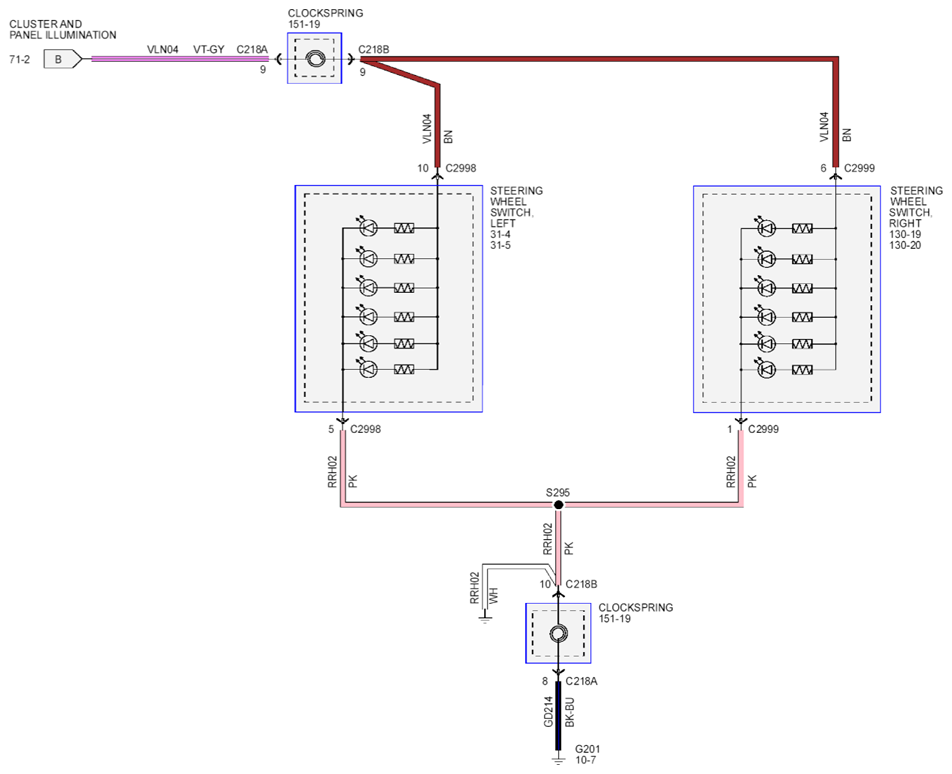

Fig 3: Cluster and Panel Illumination Circuit Diagram (View 3 Of 3)
G07895428Courtesy of FORD MOTOR CO.
