With Climate Controlled Seats

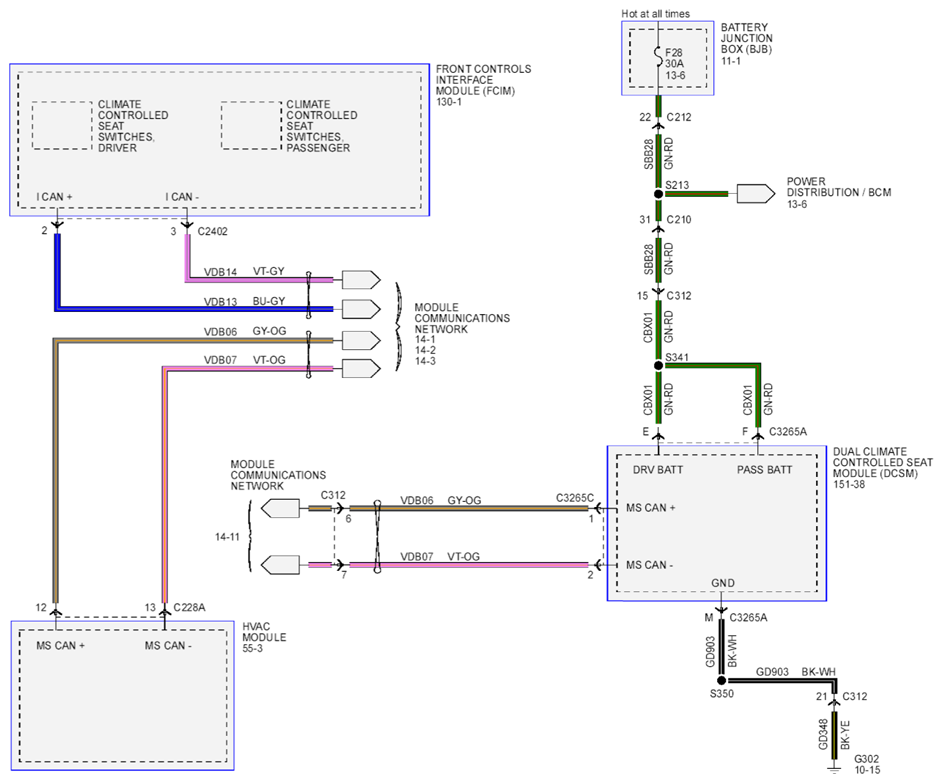

Fig 1: Climate Controlled Seats Circuit Diagram (With Climate Controlled Seats) (1 Of 3)
G07895494Courtesy of FORD MOTOR CO.

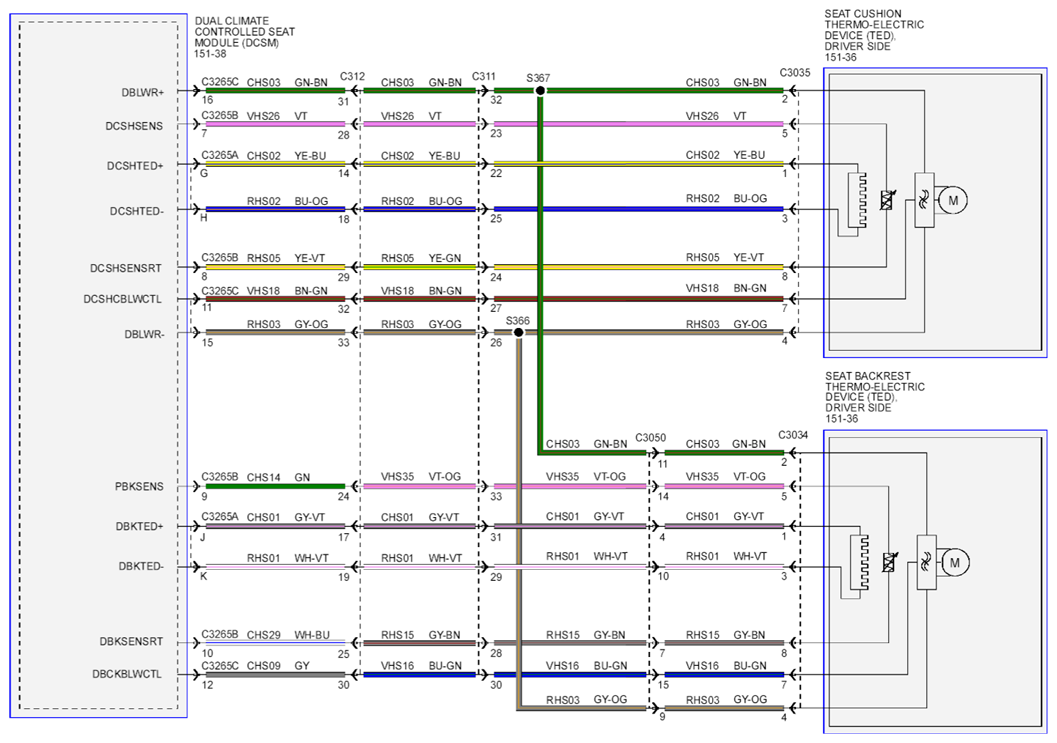

Fig 2: Climate Controlled Seats Circuit Diagram (2 Of 3)
G07895495Courtesy of FORD MOTOR CO.

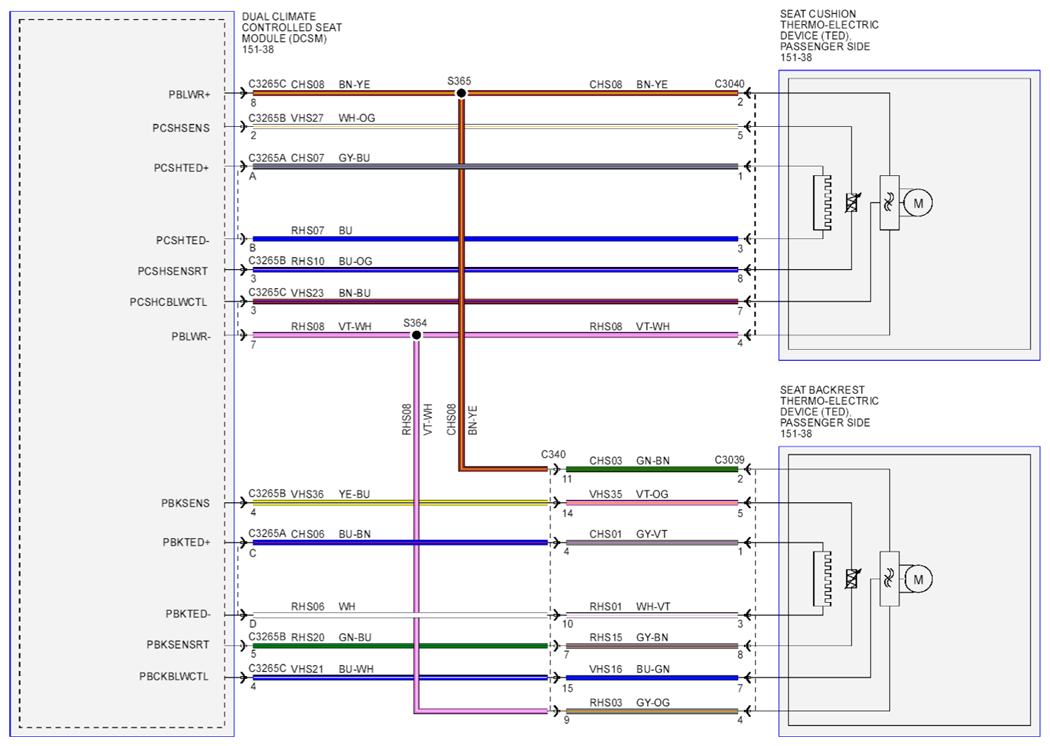

Fig 3: Climate Controlled Seats Circuit Diagram (3 Of 3)
G07895496Courtesy of FORD MOTOR CO.
