Charging System
Charging System

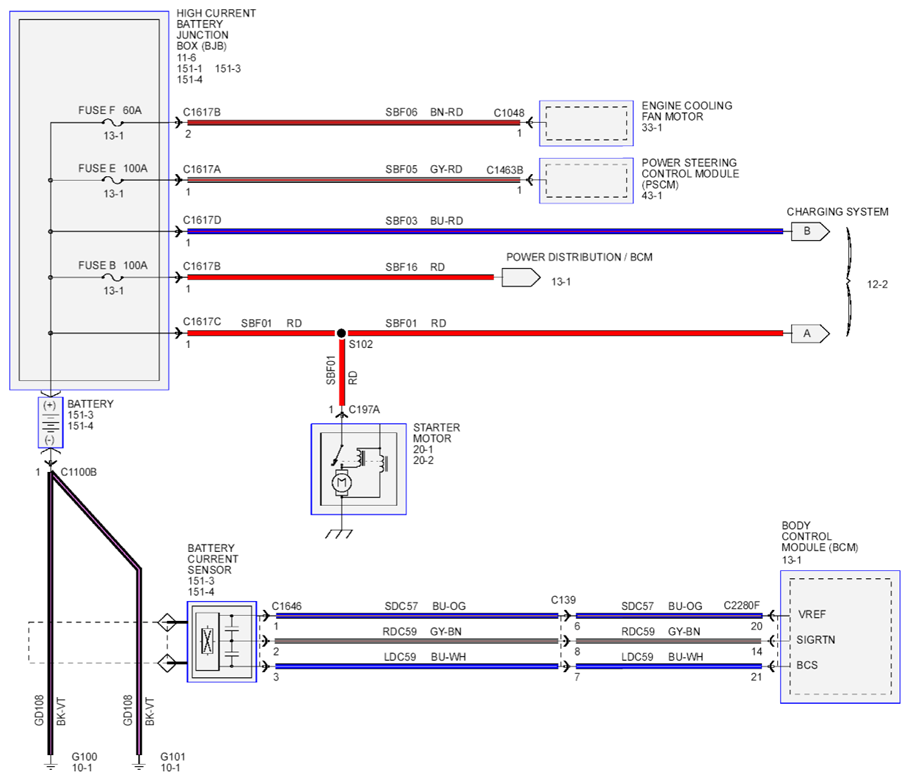

Fig 1: Charging System Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

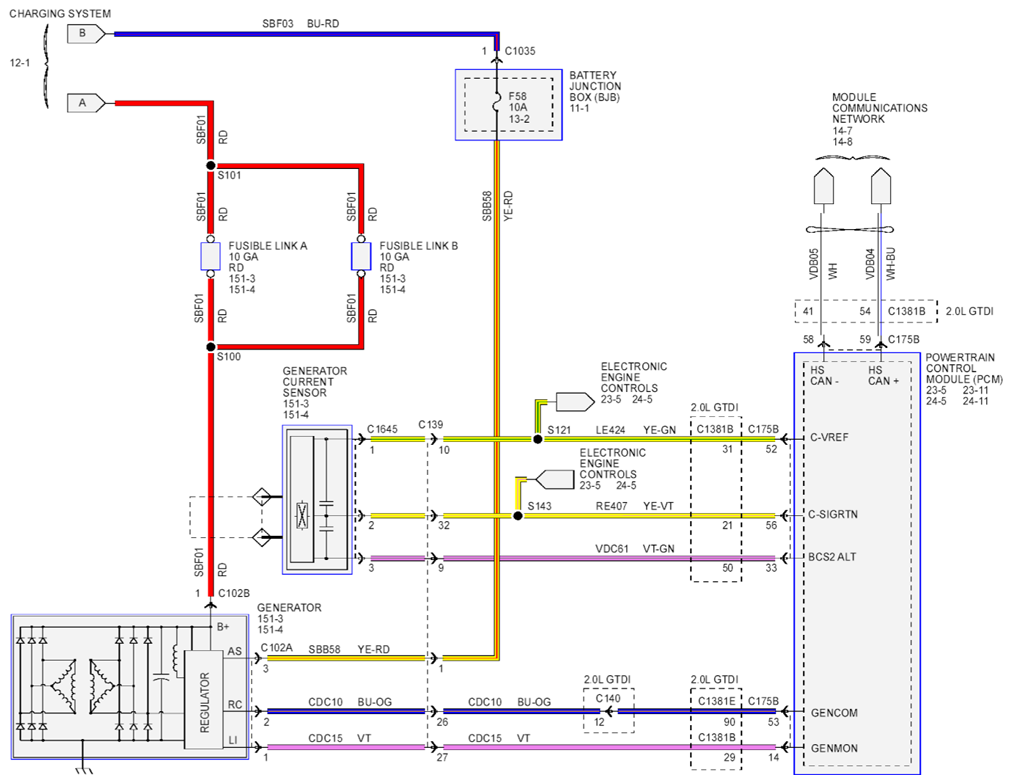

Fig 2: Charging System Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
