Auxiliary Climate Control
Auxiliary Climate Control

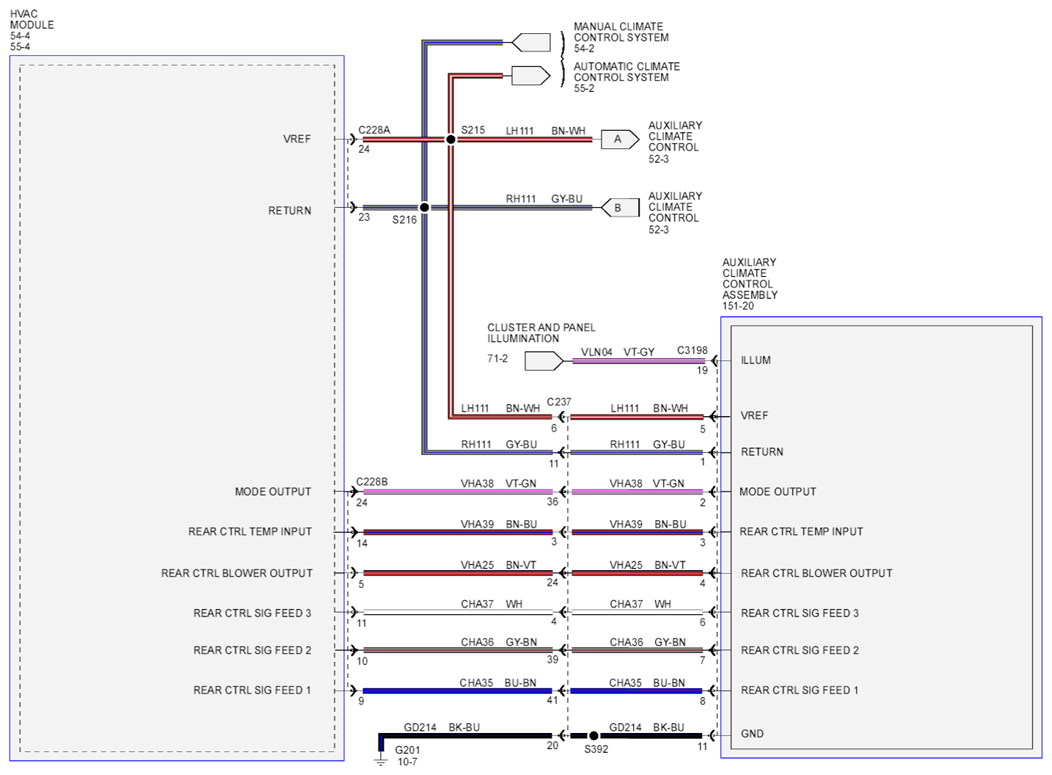

Fig 1: Auxiliary Climate Control Circuit Diagram (View 1 Of 3)
Courtesy of FORD MOTOR CO.

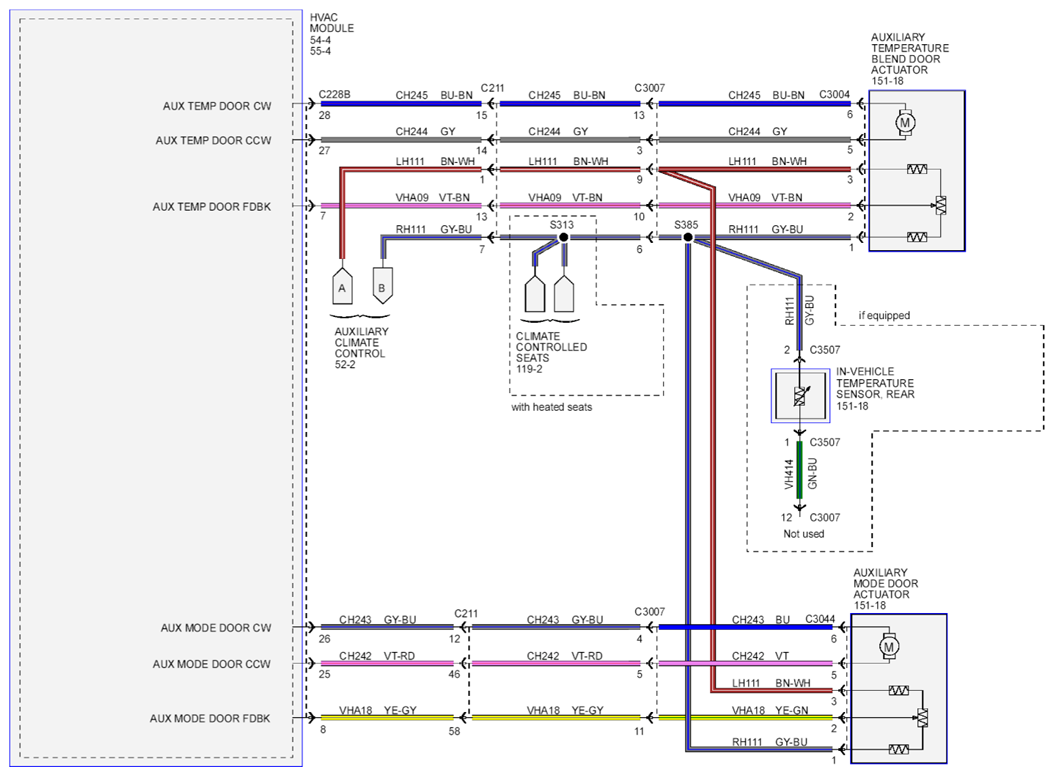

Fig 2: Auxiliary Climate Control Circuit Diagram (View 2 Of 3)
Courtesy of FORD MOTOR CO.

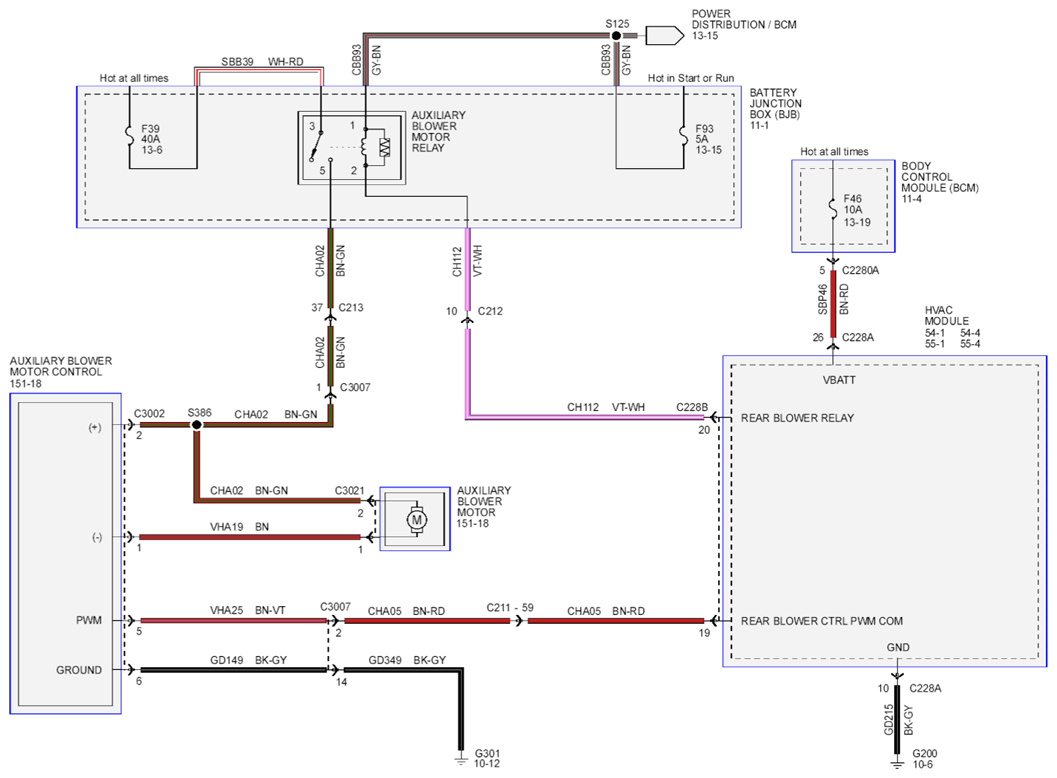

Fig 3: Auxiliary Climate Control Circuit Diagram (View 3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
