Audio System-Navigation
>>
Without Sync
Without Sync

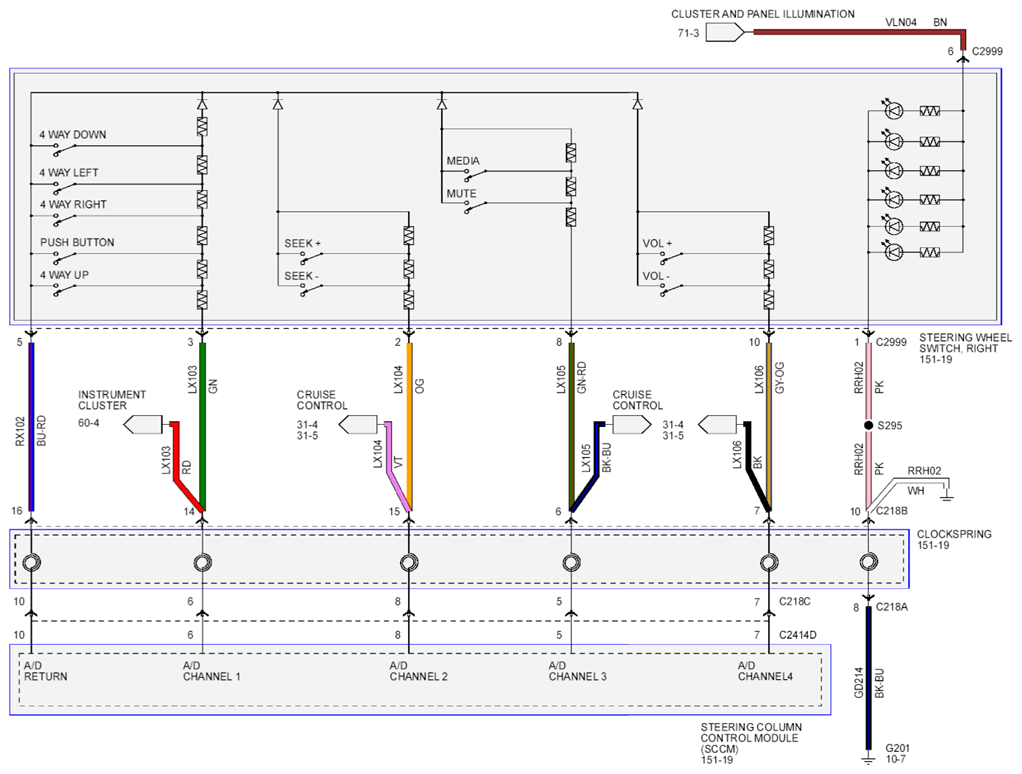

Fig 1: Audio System-Navigation Circuit Diagram (Without Sync)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
