Audio System-Navigation
>>
Sync Gen 1
Sync Gen 1

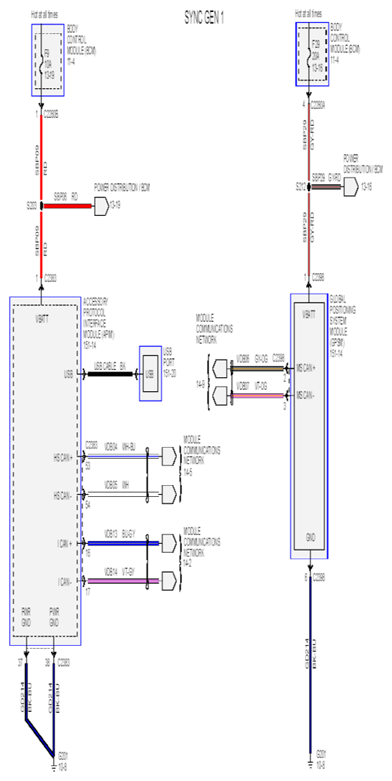

Fig 1: Audio System-Navigation Circuit Diagram (Sync Gen 1) (1 Of 2)
Courtesy of FORD MOTOR CO.

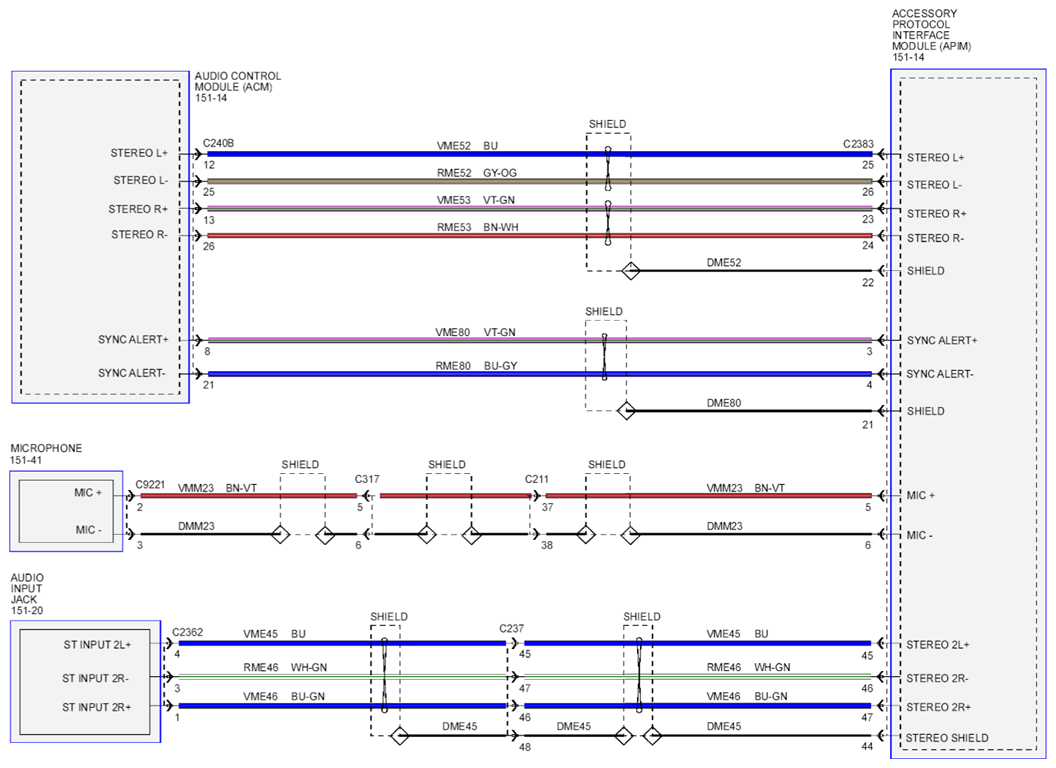

Fig 2: Audio System-Navigation Circuit Diagram (Sync Gen 1) (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
