Premium Plus Audio

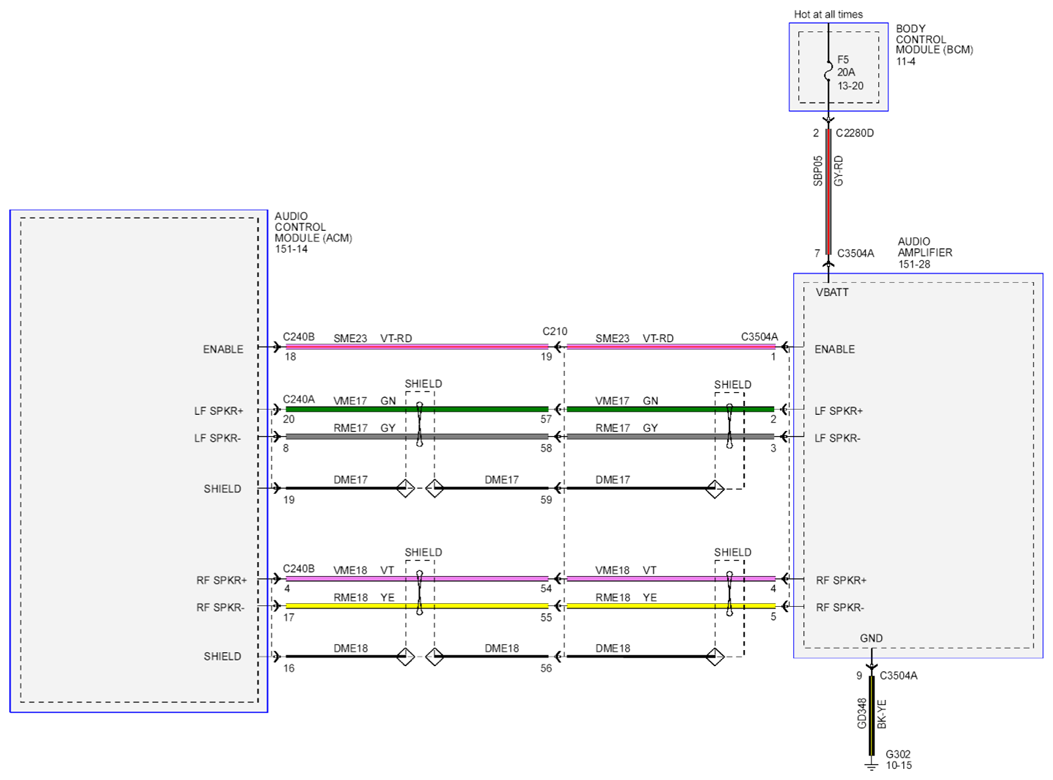

Fig 1: Audio System-Navigation Circuit Diagram (Premium Plus Audio) (1 Of 3)
G07895524Courtesy of FORD MOTOR CO.

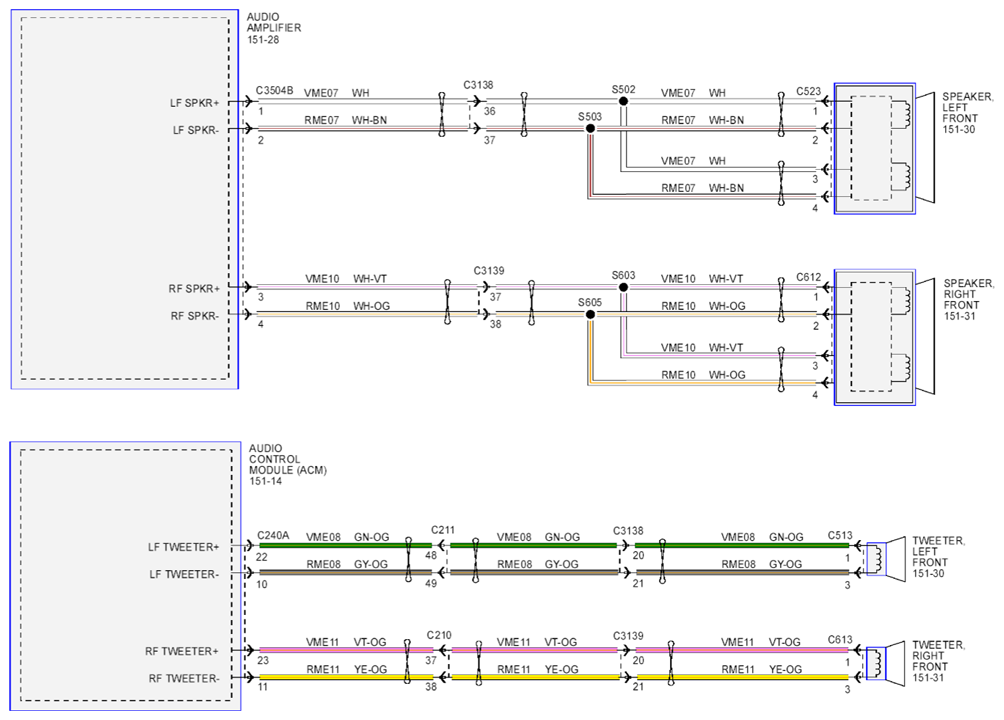

Fig 2: Audio System-Navigation Circuit Diagram (Premium Plus Audio) (2 Of 3)
G07895525Courtesy of FORD MOTOR CO.

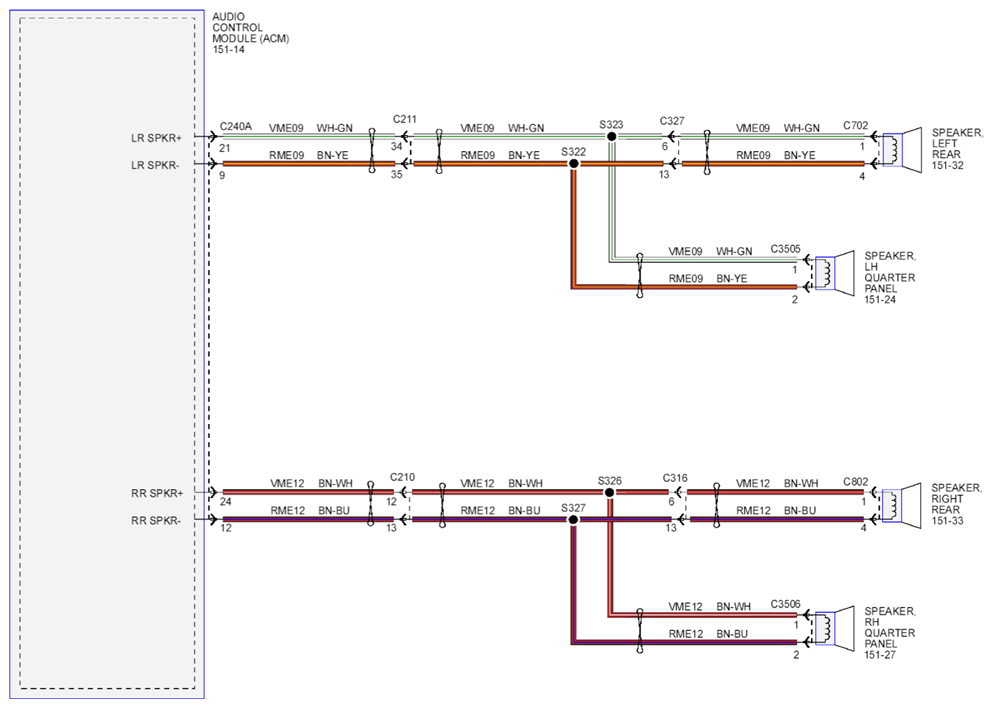

Fig 3: Audio System-Navigation Circuit Diagram (Premium Plus Audio) (3 Of 3)
G07895526Courtesy of FORD MOTOR CO.
