Audio System-Navigation: Notes

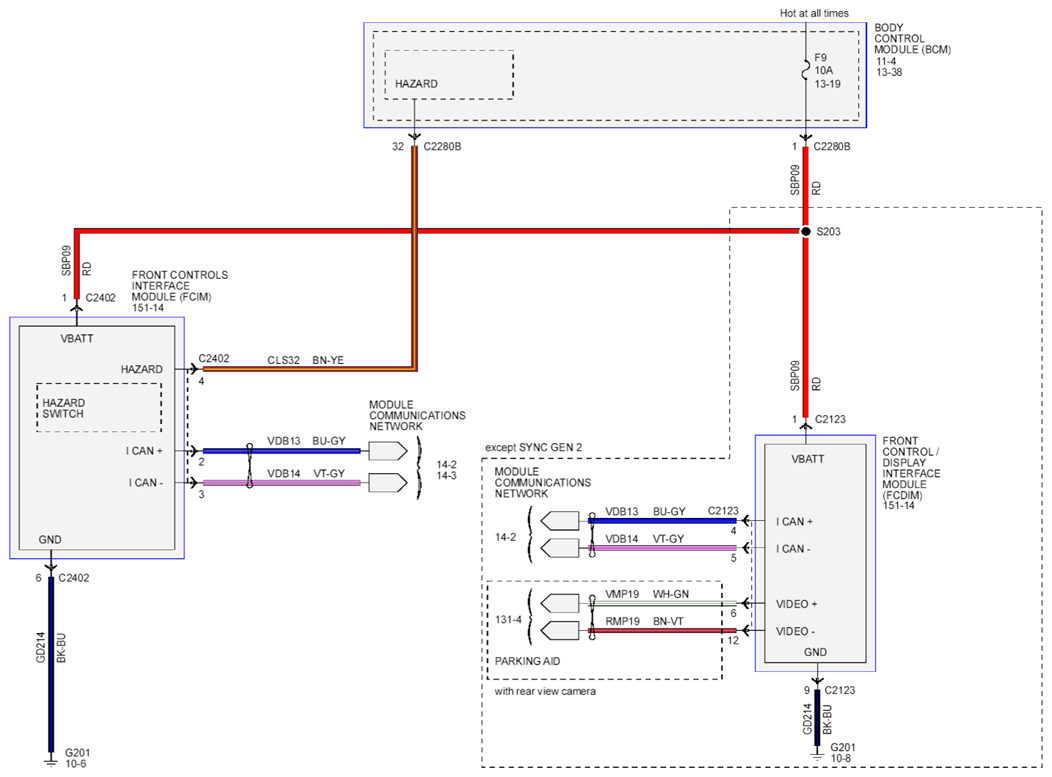

Fig 1: Audio System-Navigation Circuit Diagram
G07895520Courtesy of FORD MOTOR CO.

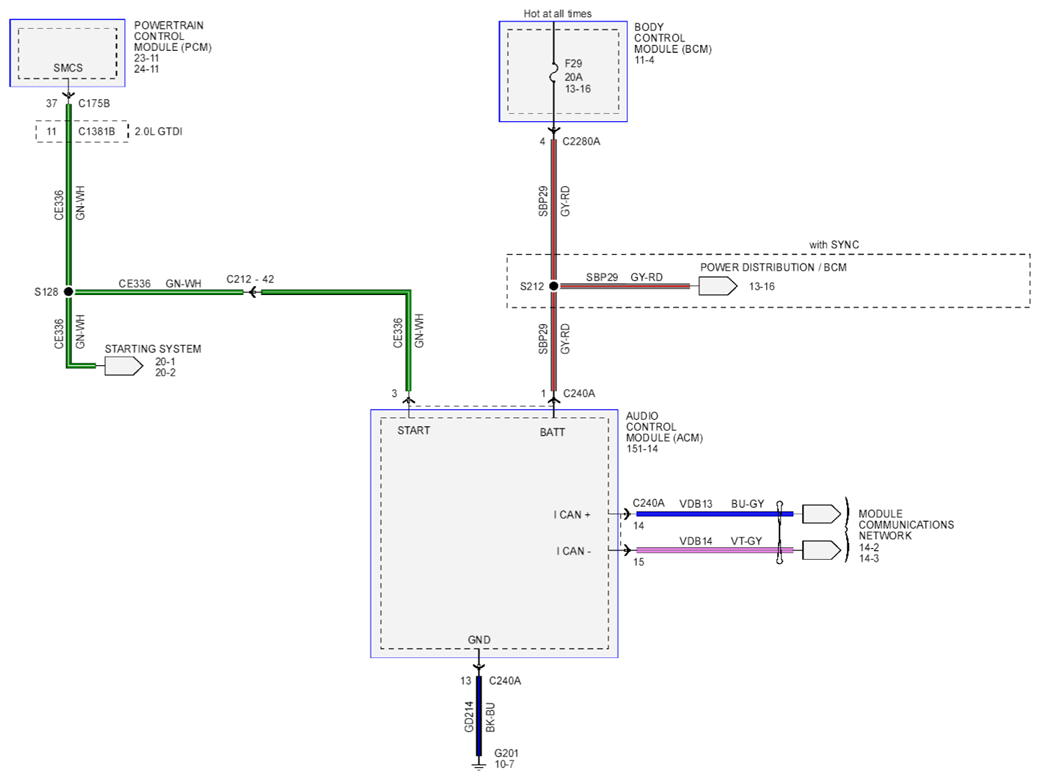

Fig 2: Audio System-Navigation Circuit Diagram
G07895521Courtesy of FORD MOTOR CO.

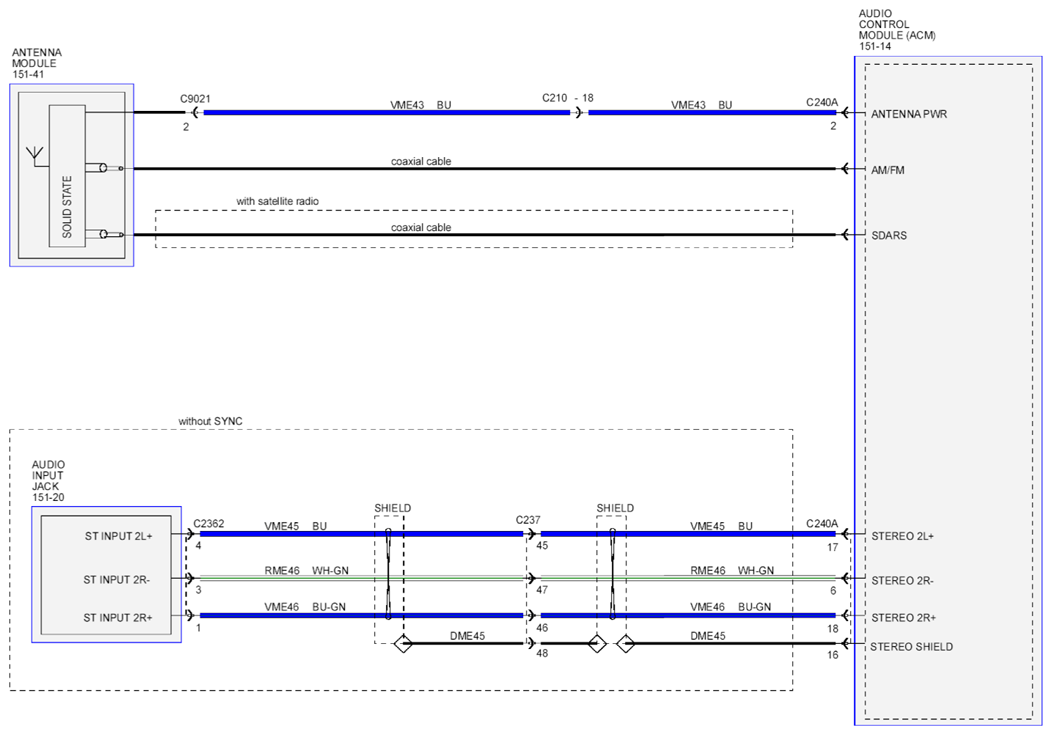

Fig 3: Audio System-Navigation Circuit Diagram
G07895522Courtesy of FORD MOTOR CO.
