Ford
>>
2012
>>
Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
All Wheel Drive (AWD)
>>
With Terrain Management
With Terrain Management

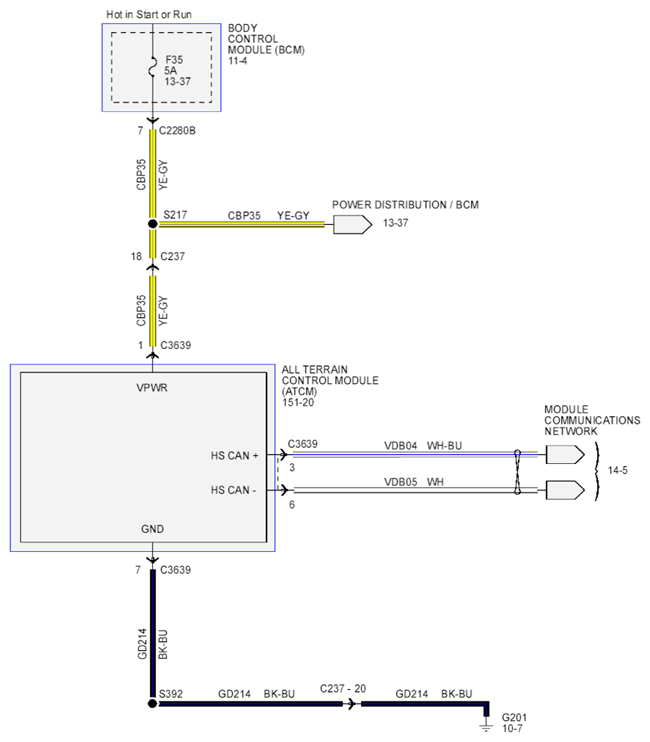

Fig 1: All Wheel Drive (AWD) Circuit Diagram (With Terrain Management) (View 2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
