All Wheel Drive (AWD): Notes

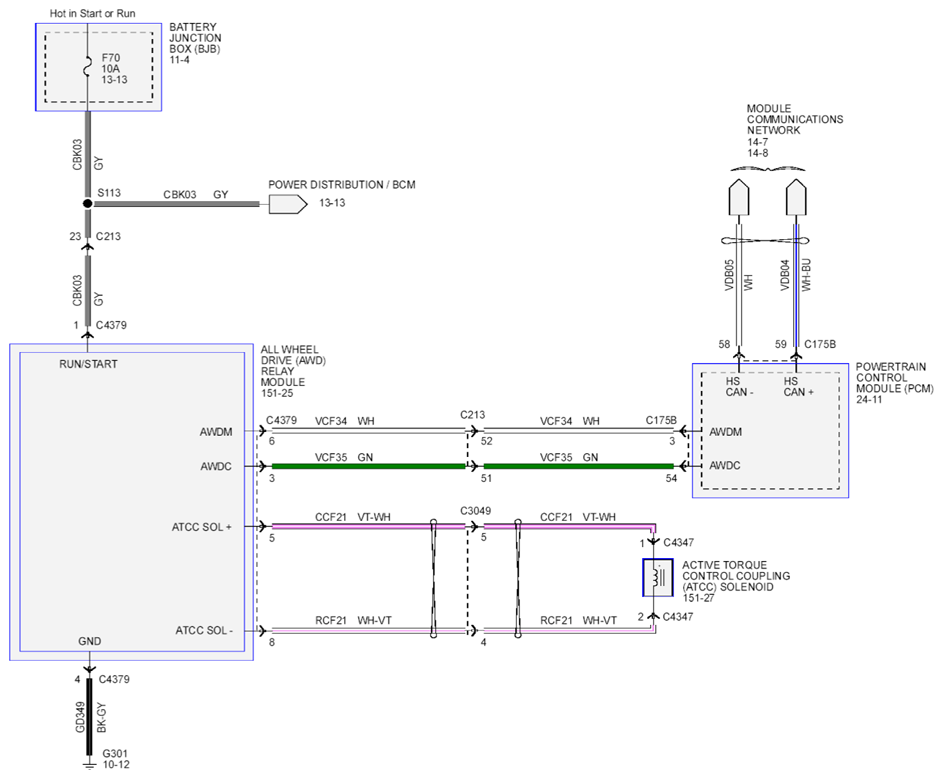

Fig 1: All Wheel Drive (AWD) Circuit Diagram (View 1 Of 2)

G07895380

Courtesy of FORD MOTOR CO.
