Adjustable Pedal
Adjustable Pedal

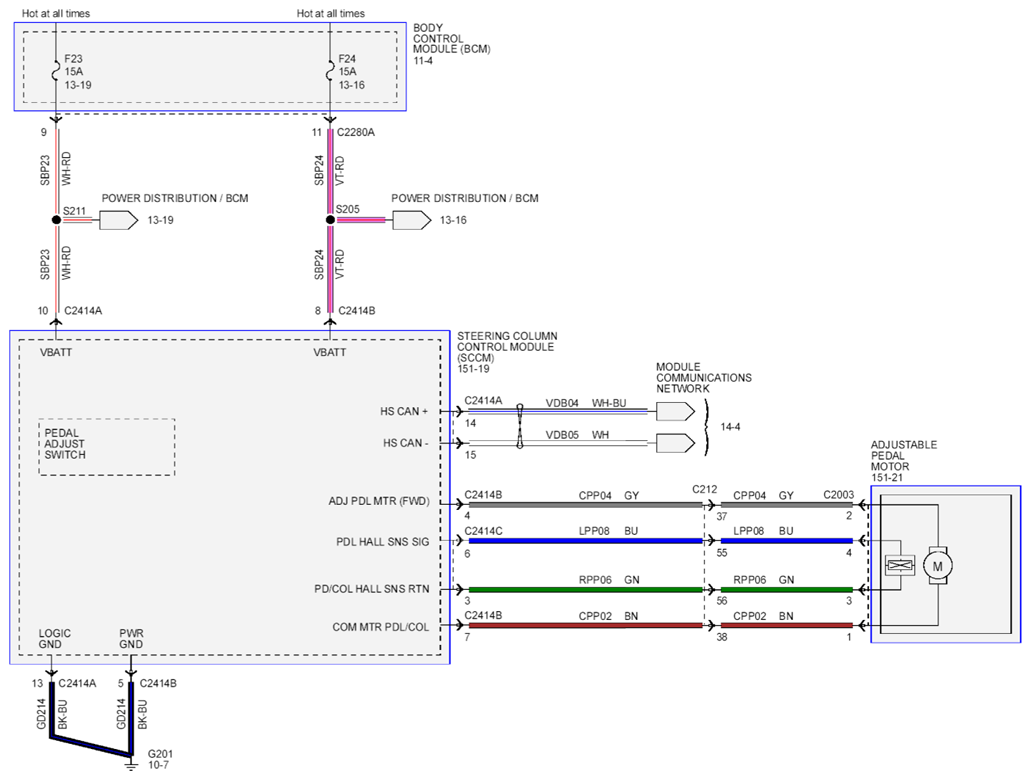

Fig 1: Adjustable Pedal circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

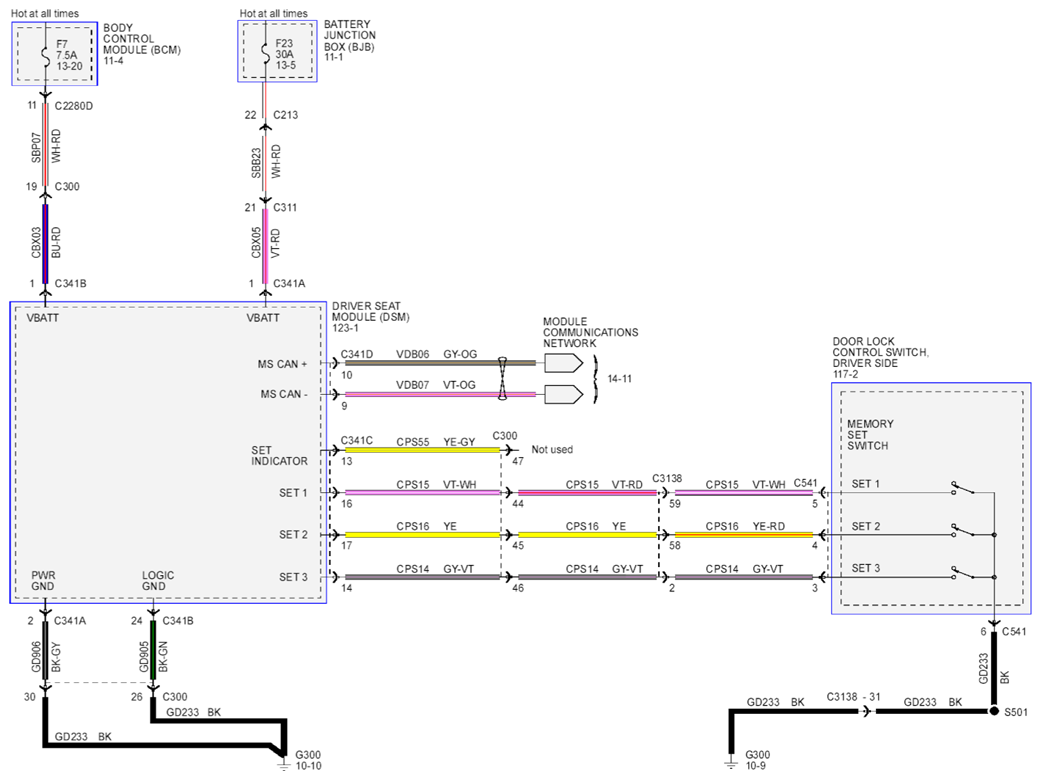

Fig 2: Adjustable Pedal circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
