Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Ground Distribution
>>
Grounds
>>
G106, G110 2.0L GTDI
G106, G110 2.0L GTDI

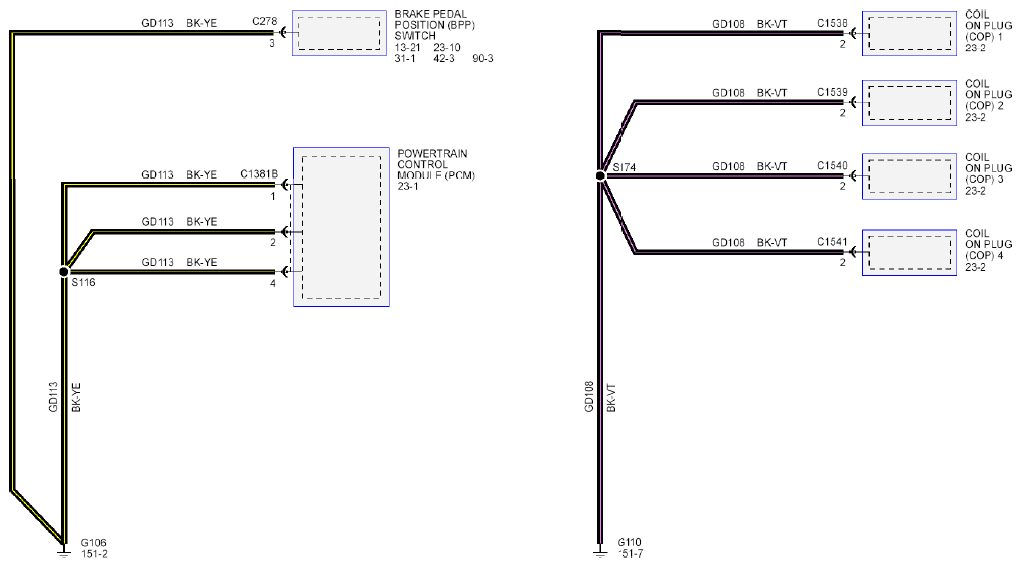

Fig 1: Grounds Circuit Diagram (G106, G110) (2.0L GTDI)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
