Exploded View

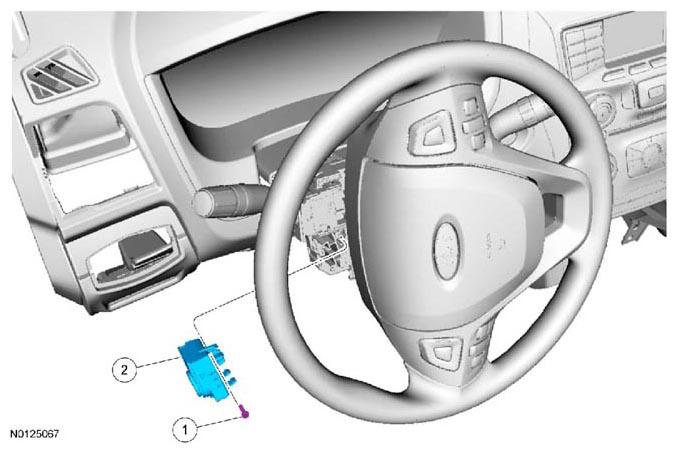

Fig 1: Identifying Pedal Adjust Switch Screw And Pedal Adjust Switch
G07420773Courtesy of FORD MOTOR CO.
Item Service Part Number Description Tool Number Material Name Notes
1 - Pedal adjust switch screw - - 3 Nm (27 lb-in)
2 9G604  Pedal adjust switch - - -
