Roof Opening Panel Control Switch: Installation

Engage the 2 tabs and connect the switch bezel to the switch.

Fig 1: Locating Switch Bezel Switch Tabs
Courtesy of FORD MOTOR CO.
Engage the 4 tabs and install the switch into the light assembly.

Fig 2: Locating Light Assembly Switch Tabs
Courtesy of FORD MOTOR CO.
Install the light assembly into the overhead console.
1. Install the light assembly into the over head console and engage the 2 front tabs.
2. Rotate the light assembly slightly toward the over head console and engage the 2 rear tabs.

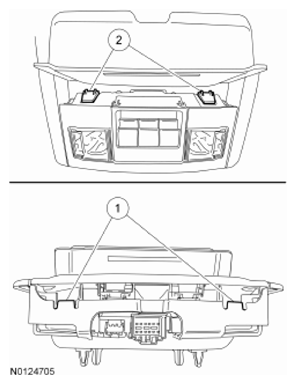

Fig 3: Identifying Overhead Console Tabs
Courtesy of FORD MOTOR CO.
Install the overhead console. REFER to CONSOLE - OVERHEAD .
