Seat Recliner - 40 Percent, Outboard: Removal

WARNING: Use care when the seat back frame is removed and when releasing the recliners from a backrest upright position. The recliners are spring-loaded, which may cause the recliner upper arms to fold with significant speed/force. Failure to follow this instruction may result in serious personal injury.

Remove the manual recline handle.

Fig 1: Identifying Spring Clip And Manual Recline Handle
Courtesy of FORD MOTOR CO.
1. Locate the spring clip between the recline cover and handle.
2. Remove the spring clip and slide the manual recline handle off the shaft.
Pull out to release the retainers and remove the outboard recliner outer cover.
- At installation, route the strap through the recliner cover.
Separate the outboard recliner.

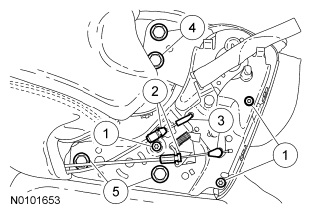

Fig 2: Identifying Outboard Recliner Screws And Frame Bolts
Courtesy of FORD MOTOR CO.
1. Remove 3 outboard recliner inner cover screws.
2. Separate the 2 cable retainers.
3. Separate the 2 cable ends.
4. Remove the 2 recliner-to-backrest frame bolts.
  - To install, tighten to 50 Nm (37 lb-ft).
5. Remove the 2 recliner-to-cushion frame bolts.
  - To install, tighten to 50 Nm (37 lb-ft).
Remove the outboard recliner.

Fig 3: Identifying Rivet And Cable End
Courtesy of FORD MOTOR CO.
1. Remove the rivet.
2. Separate the cable end from the recliner.
