Seat System - Seats-Seating - 2ND Row
>>
Removal And Installation
>>
Seat Control Switch
>>
Exploded View
Exploded View

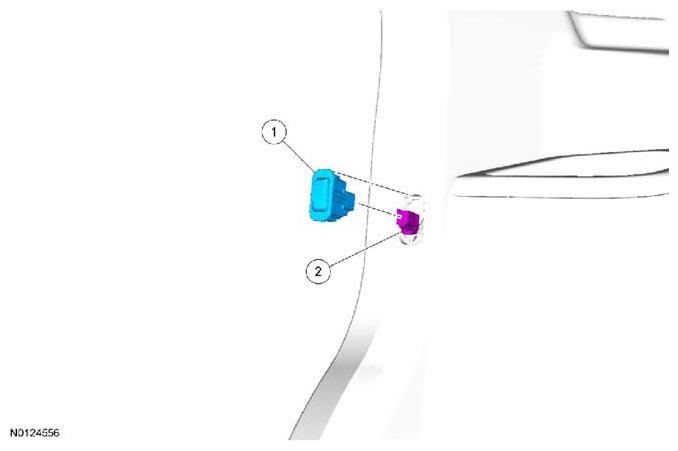

Fig 1: Identifying Switch Assembly And Electrical Connector
Courtesy of FORD MOTOR CO.
Item
Service Part Number
Description
1
14C715
Switch assembly
2
Part of
14A005
Electrical connector
Courtesy of FORD MOTOR CO.
