Removal And Installation: Armrest: Removal

NOTE: For parts identification and location, REFER to Seat - Exploded View .

Remove the 2 center head restraint guide sleeves. REFER to Head Restraint Guide Sleeve .
Open the backrest cover.
1. Detach the backrest cover J-clips at the bottom of the seat backrest.
2. Remove the 4 pin-type retainers.
3. Detach the 4 backrest cover inner J-clips attached to the hard back panel.
4. Detach the hook-and-loop strips.

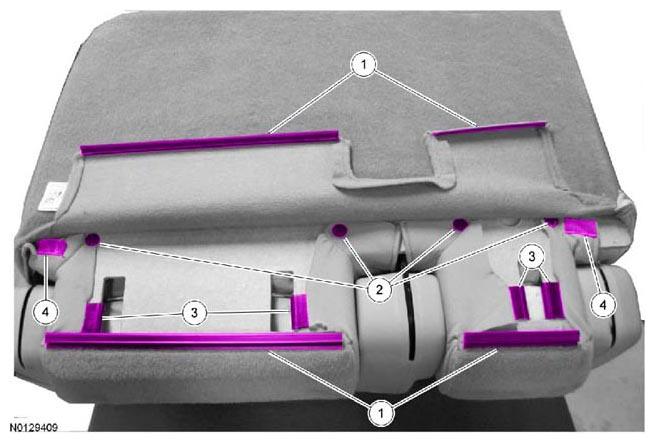

Fig 1: Identifying Backrest Cover J-Clips, Pin-Type Retainers And Hook-And-Loop Strips
Courtesy of FORD MOTOR CO.
Pull the backrest cover out.

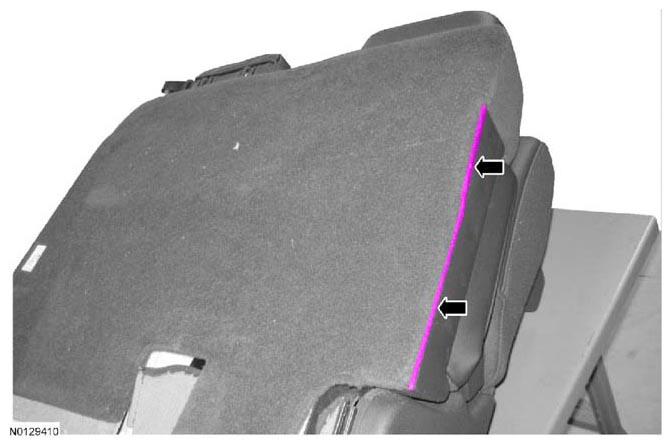

Fig 2: Locating Backrest Cover
Courtesy of FORD MOTOR CO.
Remove the armrest.
1. Remove the 3 screws.
2. Remove the 3 armrest-to-backrest frame bolts.
  - To install, tighten to 15 Nm (133 lb-in).
3. Detach the 2 retaining clips.
4. Pull out at the front and remove the armrest assembly.

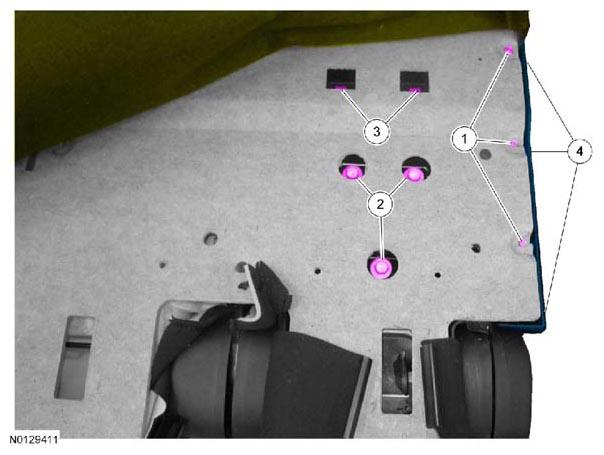

Fig 3: Identifying Armrest Assembly, Retaining Clips, Armrest-To-Backrest Frame Bolts And Screws
Courtesy of FORD MOTOR CO.
