Seat Cushion - 60 Percent: Assembly

Position the riser RH outer cover and install the 3 screws.
Position the riser RH inner cover and install the 2 screws.
Position the riser LH outer cover and install the 3 screws.
Position the riser LH inner cover and install the 2 screws.
Position the stationary foot cover and install the screw.
Position the cushion frame to the riser and hand start the cushion frame yoke-to-riser bolt, cushion frame-to-riser bolt and the 3 cushion frame-to-riser nuts.
1. Install the 3 cushion frame-to-riser nuts.
  - Tighten to 23 Nm (17 lb-ft).
2. Install the cushion frame-to-riser bolt.
  - Tighten to 48 Nm (35 lb-ft).
3. Install the cushion frame yoke-to-riser bolt.
  - Tighten to 48 Nm (35 lb-ft).
Position the inboard recliner and install the 3 inboard recliner-to-cushion frame bolts and the inboard recliner-to-cushion frame yoke bolt in the sequence shown in illustration.

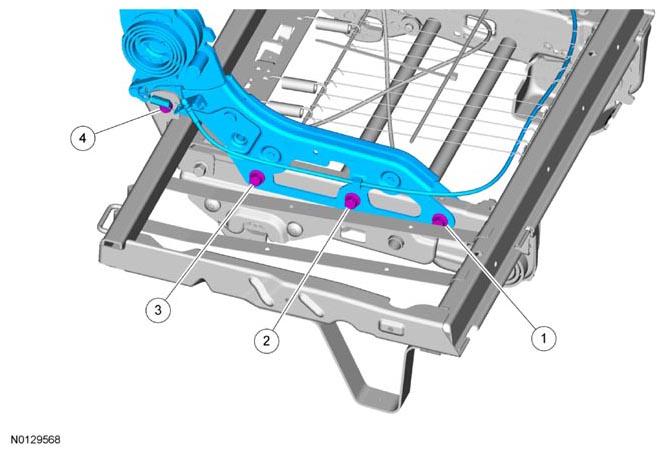

Fig 1: Identifying Inboard Recliner Frame Bolts With Tightening Sequence
Courtesy of FORD MOTOR CO.
- Tighten to 48 Nm (35 lb-ft).
Attach the LH cable to the inboard recliner.
Install the outboard recliner.
1. Attach the inboard cable to the outboard recliner.
2. Install the outboard recliner-to-cushion frame bolts.
  - Tighten to 48 Nm (35 lb-ft).
3. Attach the outboard cable to the outboard recliner.
4. Install the 3 recliner cover screws.
Position the hinge assembly and install the hinge assembly-to-cushion frame bolts.
- Tighten to 48 Nm (35 lb-ft).
Install the outboard recliner outer cover.
- Feed the strap through the cover.
Install the manual recline handle with the clip.
Position the inboard recliner LH cover and install the pin-type retainer and screw.
Install the inboard recliner RH cover.
If equipped with deployable safety belts, install the safety belt buckle and inflator. REFER to SAFETY BELT BUCKLE AND INFLATOR - 2ND ROW, 60 PERCENT SEAT .
Install the 60 percent backrest. REFER to Seat Backrest - 60 Percent .
Install the 60 percent seat. REFER to Seat .
