Seat Backrest: Removal

NOTE: To prevent system failure, carry out the OCS reset when a front passenger seat cushion is disassembled, a new trim cover is installed or an OCS service kit is installed. Use scan tool to carry out the OCS reset command.

NOTE: For parts identification and location, REFER to Seat - Exploded View, Front .

Remove the seat. REFER to Seat .
Detach the carpet flap toe-kick retainers from under the seat.

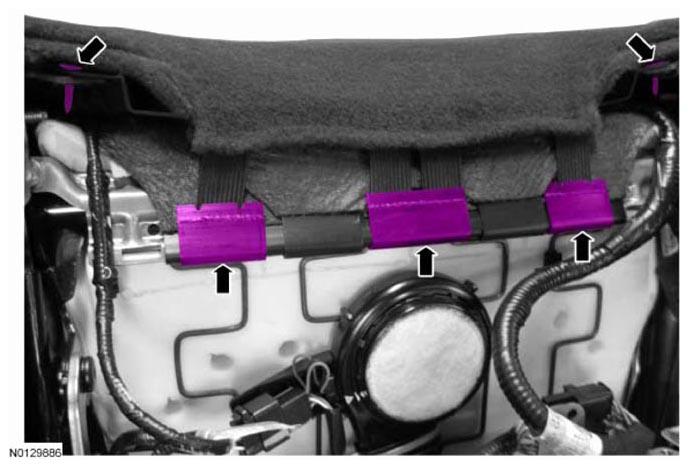

1. Separate the 3 J-clips from the seat cushion frame.
2. Position the carpet toe-kick upward and remove the 2 push pin retainers.
Fig 1: Locating Seat Cushion Frame J-Clips And Push Pin Retainers
Courtesy of FORD MOTOR CO.

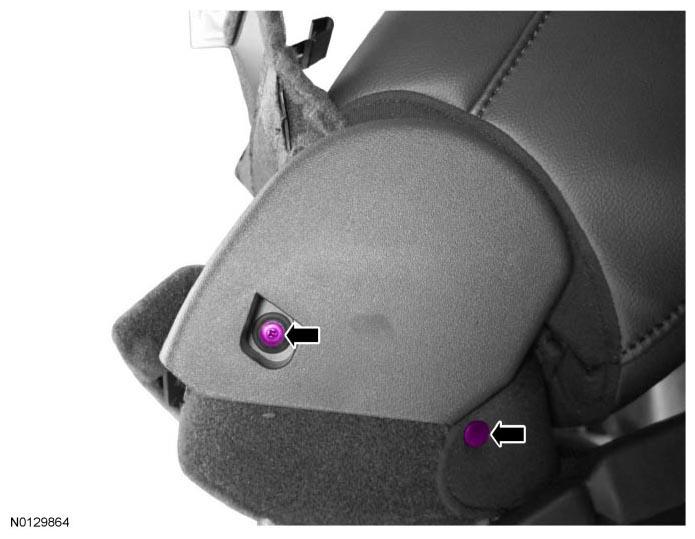

Remove the scrivet and push pin retainer from the recliner cover.

Fig 2: Locating Recliner Cover Scrivet And Push Pin Retainer
Courtesy of FORD MOTOR CO.
Remove the recliner cover.
1. Slide the recliner cover toward the front of the seat.
Remove the inboard recliner inner cover.
If equipped, remove the manual recline handle.
1. Remove the clip and slide the handle off the shaft.

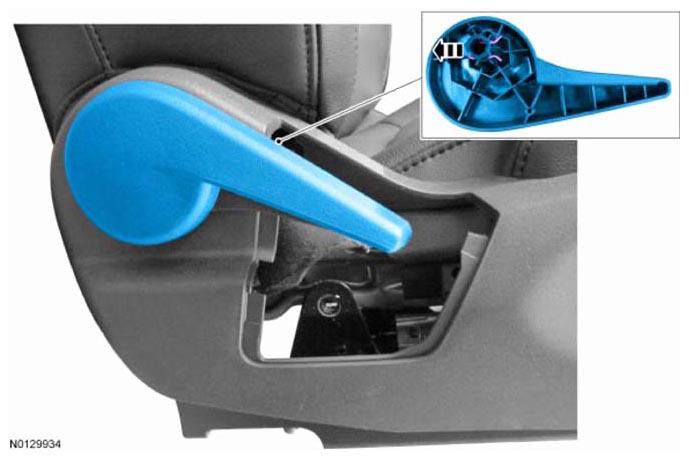

Fig 3: Removing Manual Recline Handle
Courtesy of FORD MOTOR CO.
For manual seats, remove the seat switch delete cover.
1. Insert a flat-blade screwdriver between the seat cushion and cushion side shield, at the locations shown in illustration, and release the retaining tabs.

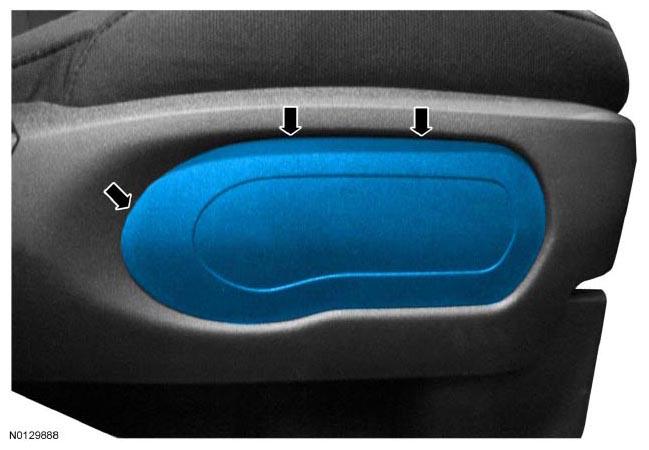

Fig 4: Locating Seat Switch Delete Cover
Courtesy of FORD MOTOR CO.
For power seats, remove the power seat switch. REFER to Seat Control Switch .
Remove the cushion side shield rear inner bolt.

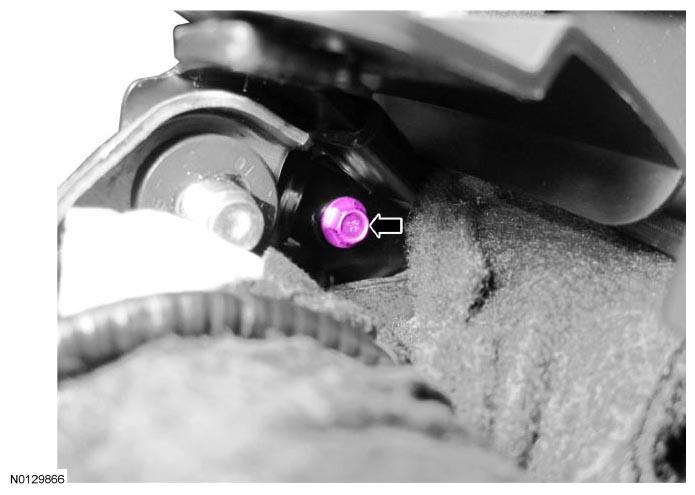

Fig 5: Locating Cushion Side Shield Rear Inner Bolt
Courtesy of FORD MOTOR CO.
Remove the cushion side shield.
1. Remove the screws at the front, center and rear of the cushion side shield.
2. Pull outward and release the 2 retaining clips.

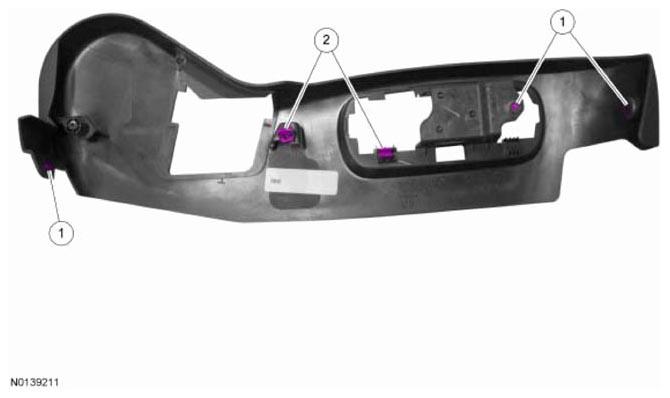

Fig 6: Identifying Cushion Side Shield Components
Courtesy of FORD MOTOR CO.

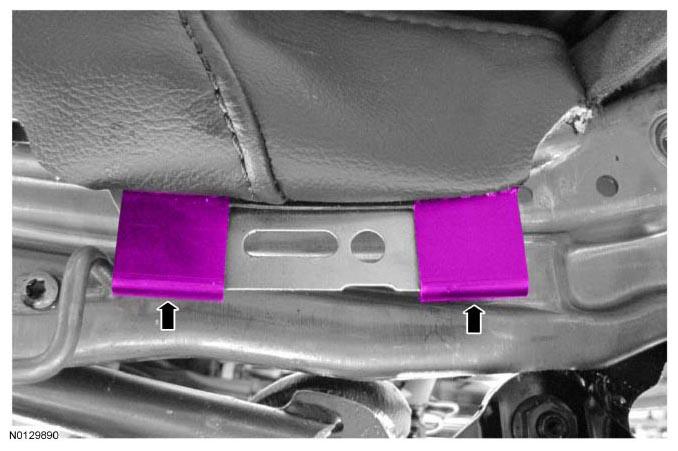

Remove the 2 outboard cushion cover J-clips.

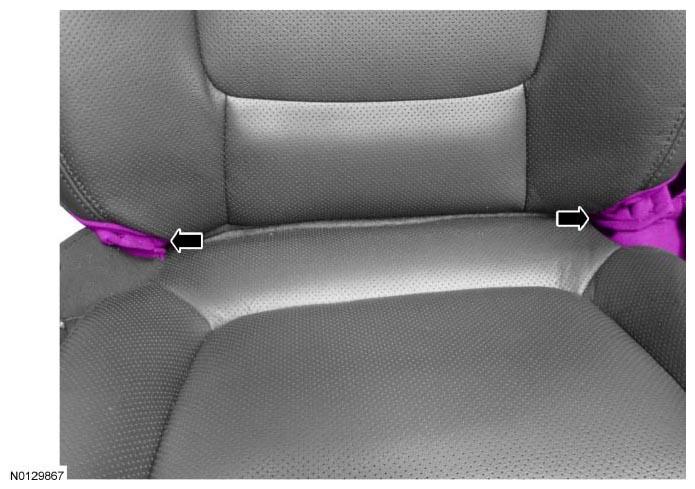

Fig 7: Locating Outboard Cushion Cover J-Clips
Courtesy of FORD MOTOR CO.
If equipped, remove the manual lumbar cable.
1. Detach the manual lumbar cable retainer.
2. Pull the manual lumbar cable outward.
3. Release the manual lumbar cable from the manual lumbar adjuster.

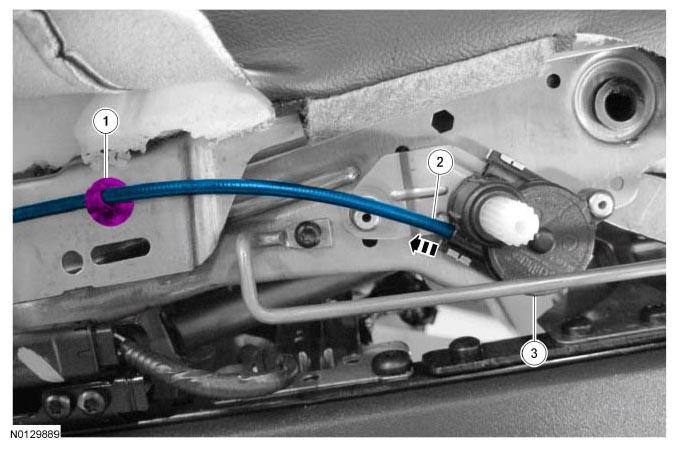

Fig 8: Removing Manual Lumbar Cable
Courtesy of FORD MOTOR CO.

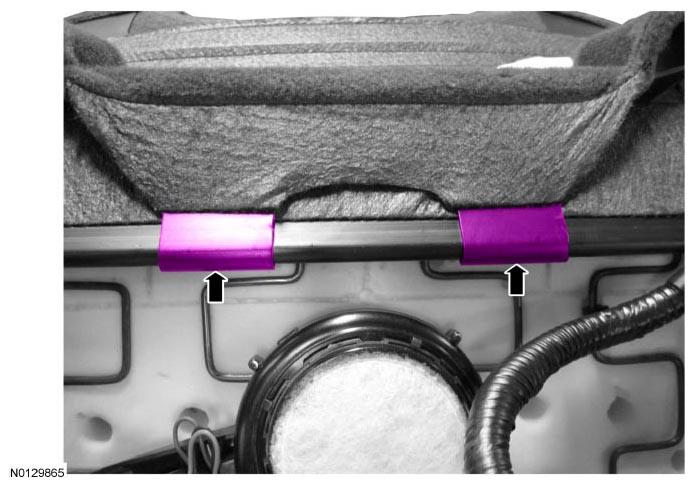

Remove the 2 J-clips from the rear of the cushion cover.

Fig 9: Locating Cushion Cover J-Clips
Courtesy of FORD MOTOR CO.
NOTE: Note J-clip strap routing for installation.

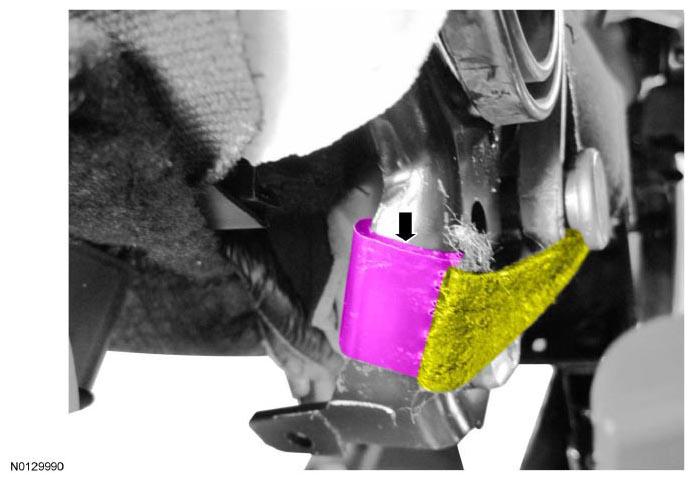

Remove the outboard cushion cover J-clip and strap from the backrest frame.

Fig 10: Locating Outboard Cushion Cover J-Clip
Courtesy of FORD MOTOR CO.
NOTE: Note wire harness routing for installation.

NOTE: Vehicle with a TED shown in illustration, all others similar.

Release the side air bag module electrical connector and wire harness retainers under the seat.

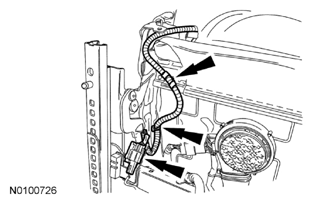

Fig 11: Locating Side Air Bag Module Electrical Connector And Wire Harness
Courtesy of FORD MOTOR CO.
Disconnect the side air bag module electrical connector.
1. Slide the locking clip back.
2. Push the tab in and disconnect the electrical connector.
Fig 12: Identifying Electrical Connector Lock Clip And Tab
Courtesy of FORD MOTOR CO.
NOTE: Note wire harness routing for installation.

If equipped, disconnect the backrest electrical connector and release the wire harness retainers attached under the seat.
Remove the 4 recliner-to-seat track bolts.
Position the seat backrest rearward and detach the 2 J-clips form the cushion cover.

Fig 13: Locating Seat Backrest J-Clips
Courtesy of FORD MOTOR CO.
NOTE: Note wire harness routing for installation.

Remove the backrest assembly
1. Route the wire harnesses through the holes in the carpet flap toe-kick.
