Removal And Installation

WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.
NOTE: Typical driver seat shown in illustration, other seats similar.

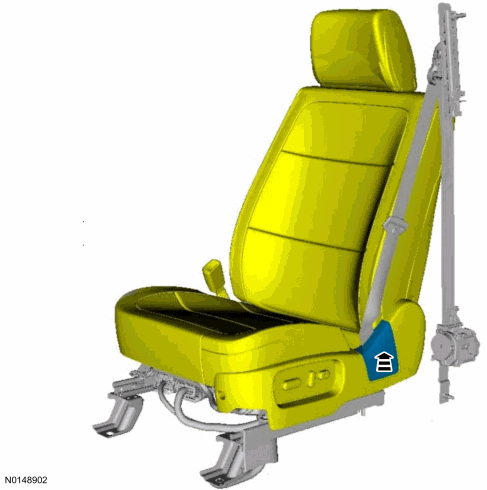

  1. If equipped.
    G00515604

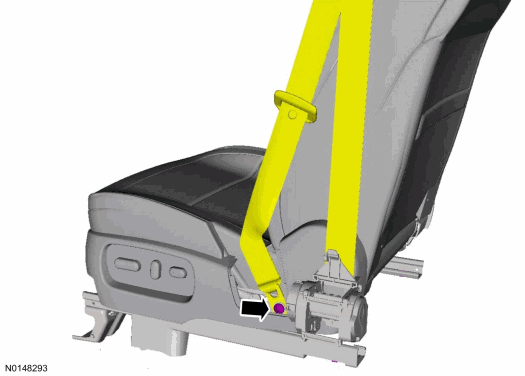

  2. If eqipped.
    G00515605

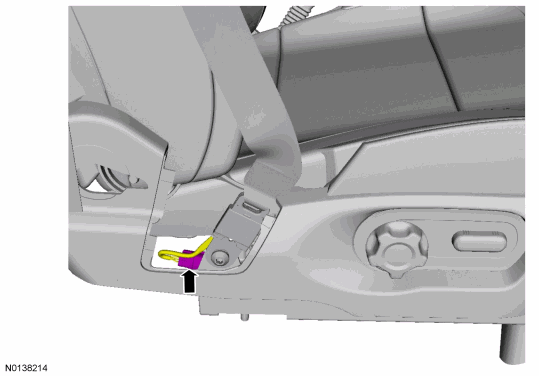

  3. G00515606
  4. G00515607

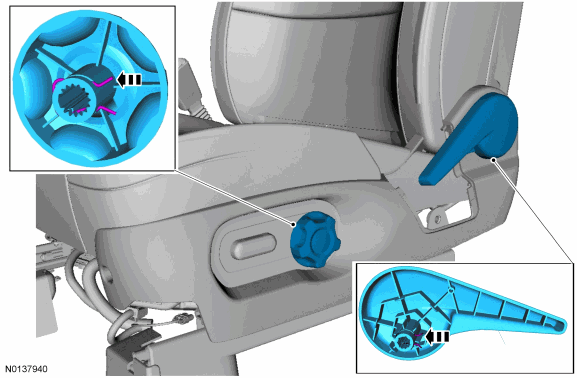

  5. If equipped.
    G00515592

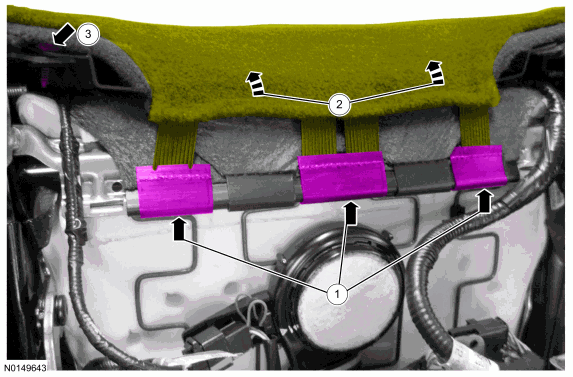

  6. G00515593

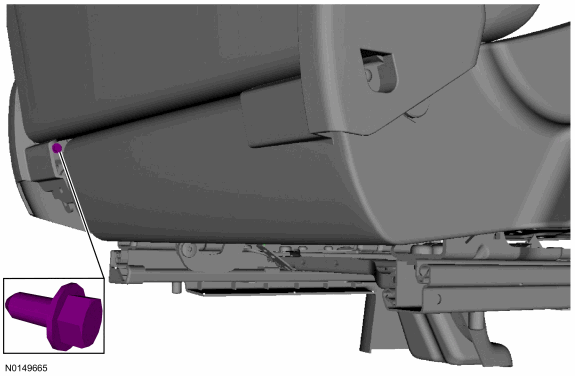

  7. G00515594

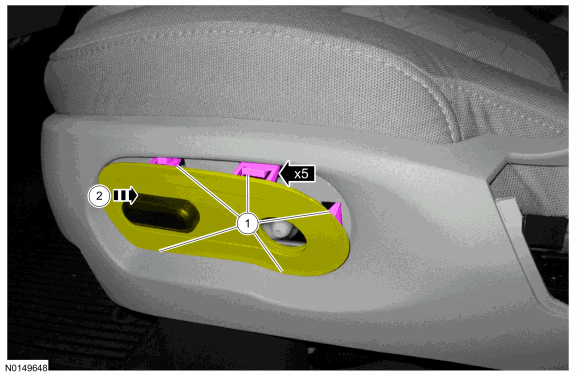

    1. From under the cushion side shield, push out from behind the seat control switch bezel to start detachment.
    2. NOTE: Do not pull out at the front of the seat control switch bezel, slide it rearward. Otherwise, seat control switch bezel retainers can break.
      G00515595

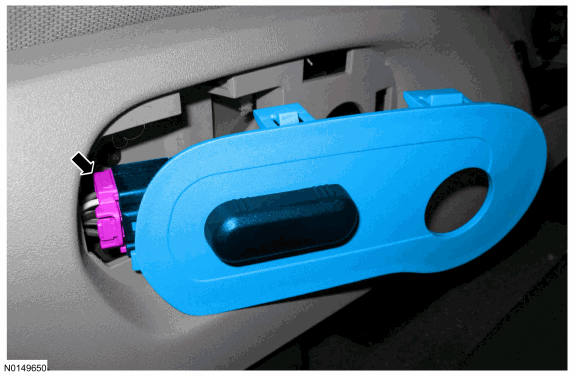

  9. G00515596

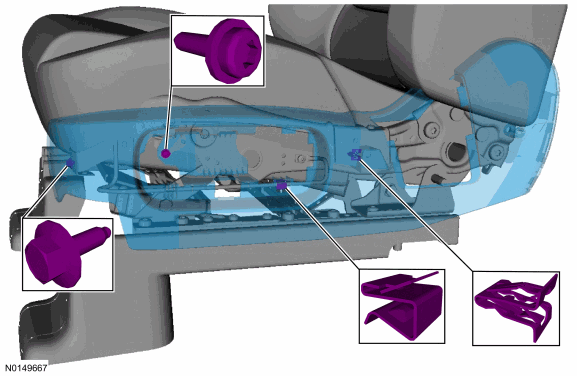

  10. G00515597

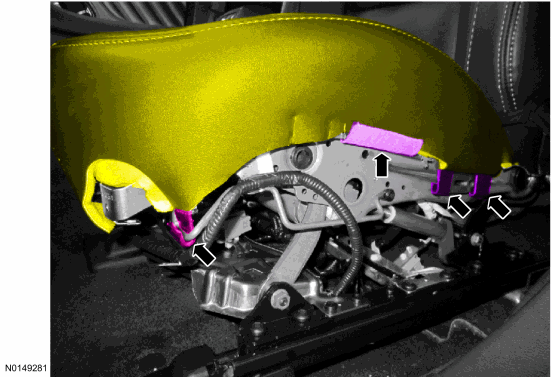

  11. G00515608

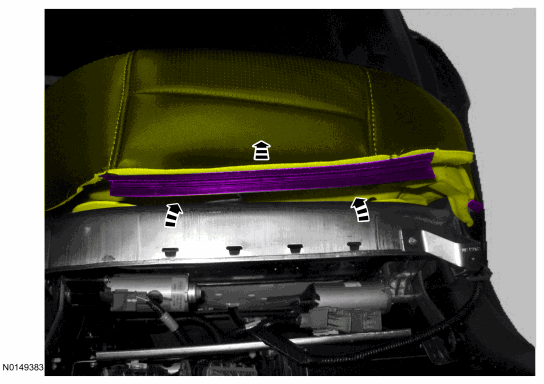

  12. G00515609

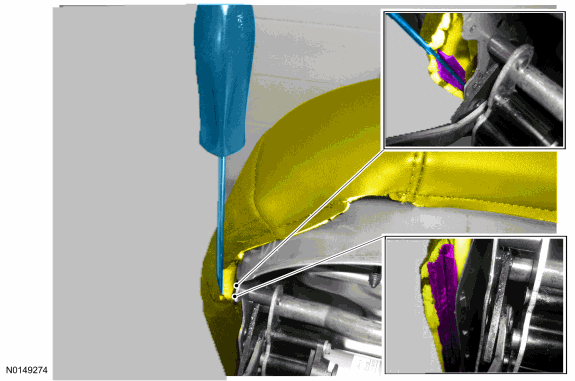

  13. Use the General Equipment: Flat Headed Screw Driver.
    G00515610

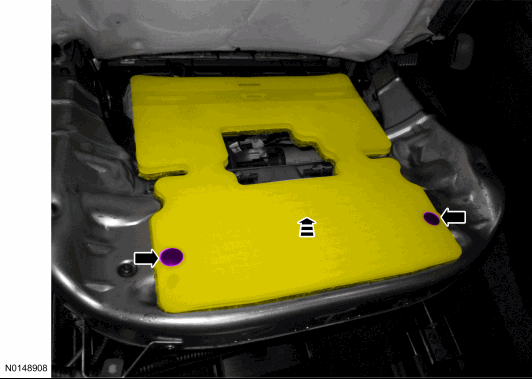

  14. Passenger seat with bladder OCS.
    G00525311

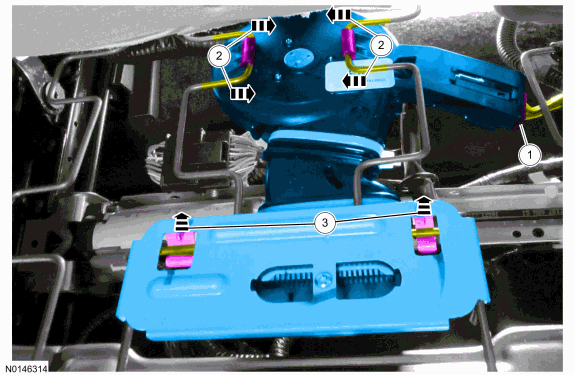

  15. If equipped with climate controlled seats.
    G00525312

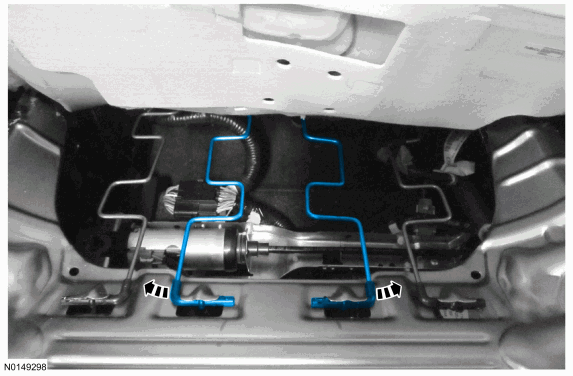

  16. NOTE: Note the position of the cushion support wires for installation.

    On both side.

    G00525313

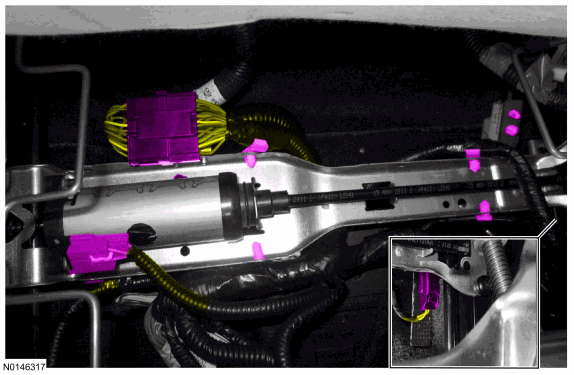

  17. NOTE: Seat cushion wire harness take-outs will vary with seat option content. Note the wire harness routing, attachment points and connections to the horizontal seat motor and bracket for installation.
    G00525314

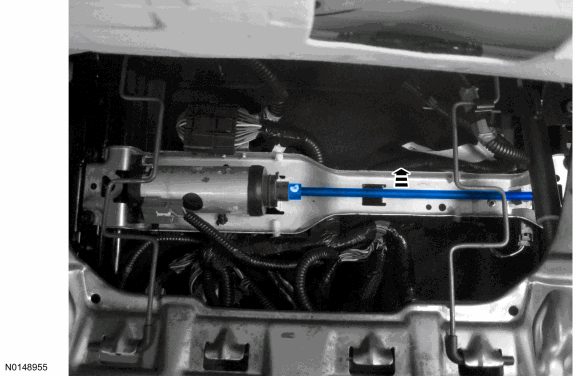

  18. G00525315

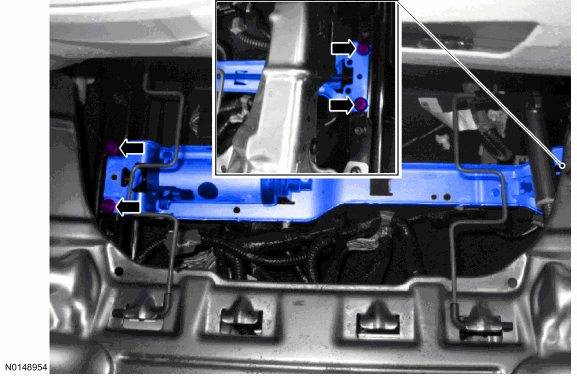

  19. G00525316

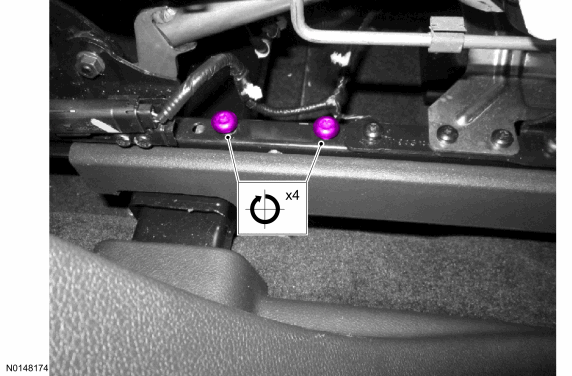

  20. NOTE: Pushing the seat forward or backward can aid in bolt hole alignment.

    On both sides.

    G00525317

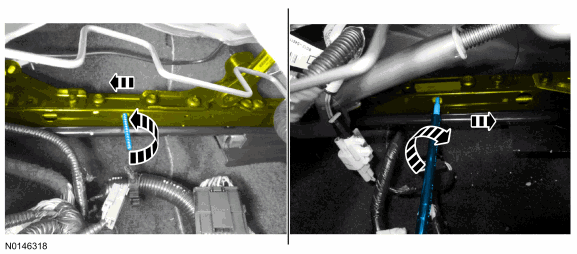

  21. NOTE: When using a drill to move the seat track, do not move the seat track to its forward or rearward end of travel stops. Doing so can result in damage to the seat track requiring its replacement.
    NOTE: Be sure to drive the seat track evenly or the track will bind during movement.
    NOTE: Rotate the cables using 2 drills operating at similar speeds to most efficiently position the seat track.

    Insert both seat track cables then drive the inboard and outboard seat tracks forward until the rear mounting bolts are accessible. General Equipment: Drill(s).

    G00525318
  22. Remove the front seat. Refer to Seat .
  23. Install the front seat track motor. Refer to SEAT TRACK MOTOR - Front . Do not install the seat at this time.

    If equipped, transfer the seat position sensor. REFER to SEAT POSITION SENSOR .

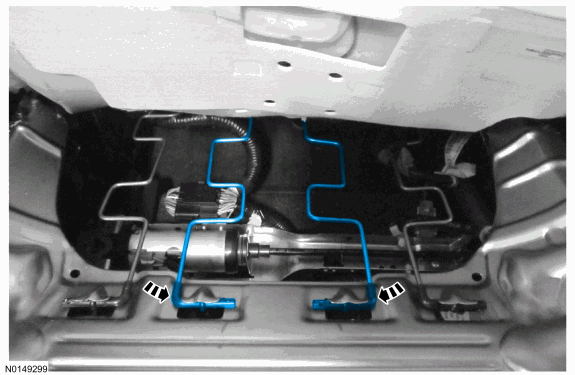

  24. NOTE: Install as noted during removal.

    On both sides.

    G00525319

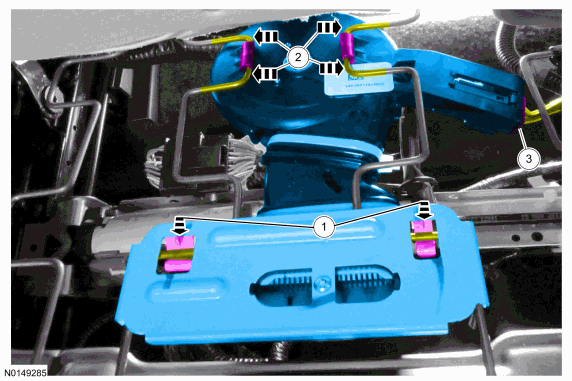

  25. If equipped with climate controlled seats.
    G00525320

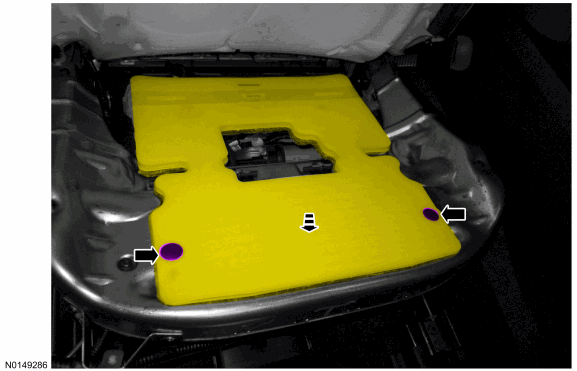

  26. Passenger seat with bladder OCS.
    G00525321

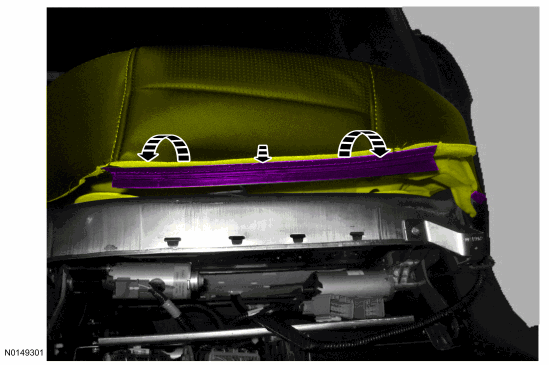

  27. G00525323

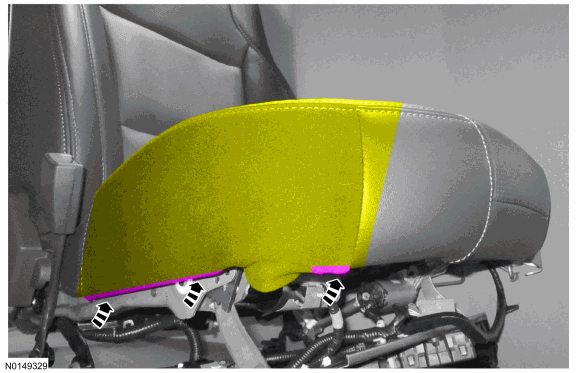

  28. G00525322
  29. G00525324
  30. G00515597
  31. G00515596
  32. G00515594
  33. G00515603

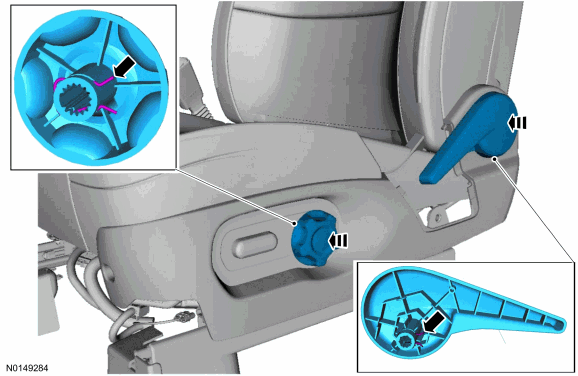

  34. If equipped.
    G00525325
  35. Install the front seat. Refer to Seat . If a passenger seat with a bladder OCS has been serviced, do not prove out the SRS within the seat installation procedure. Proceed to the next step here after the seat has been installed in the vehicle and repower has been done  .
  36. For a passenger seat with a bladder OCS , carry out the OCS reset.
  37. If equipped with memory seat, operate the horizontal motor in both directions through the full range of travel to allow the DSM to correctly register stop positions and prevent premature stopping points after the repair is complete.
