Pinpoint Test

NOTE: When taking measurements at DCSM harness connectors, do not insert the electrical probes into the female connector pins. Inserting the probes into connector pins can cause intermittent or open electrical connections after reassembly resulting in DTCs and system failure. Touching the tip of these connector pins is recommended instead.

CHECK THE TED CIRCUITS FOR AN OPEN

WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

Ignition OFF.
Disconnect: Passenger Seat Side Air Bag C339.
Disconnect: DCSM C3265A.
Disconnect: Passenger Cushion TED C3040.
Disconnect: Passenger Backrest TED C3039.

Measure:

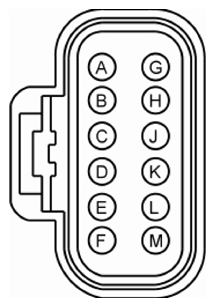

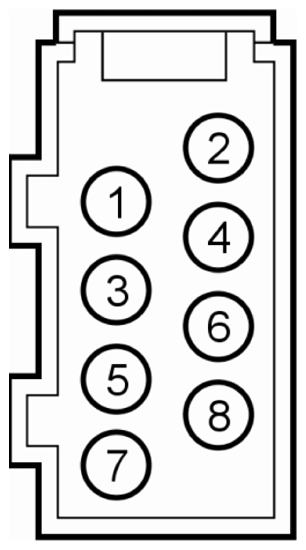

DCSM			Passenger Cushion TED

C3265A			C3040
Pin	Circuit	Measurement / Action	Pin	Circuit
A	CHS07 (GY/BU)		1	CHS07 (GY/BU)
B	RHS07 (BU)		3	RHS07 (BU)

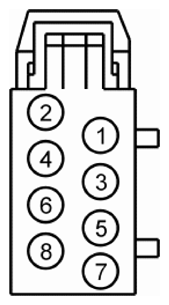

DCSM			Passenger Backrest TED

C3265A			C3039
Pin	Circuit	Measurement / Action	Pin	Circuit
C	CHS06 (BU/BN)		1	CHS06 (BU/BN)
D	RHS06 (WH)		3	RHS06 (WH)

Are the resistances less than 3 ohms?

Yes: GO to 2 .
No: REPAIR the affected circuit. GO to 5 .

CHECK THE TED CIRCUITS FOR A SHORT TO VOLTAGE

Ignition ON.

Measure:

DCSM			Ground

C3265A			Ground
Pin	Circuit	Measurement / Action	Pin	Circuit
A	CHS07 (GY/BU)		-	Ground
B	CHS07 (BU)		-	Ground
C	CHS06 (BU/BN)		-	Ground
D	RHS06 (WH)		-	Ground

Is any voltage present?

Yes: REPAIR the affected circuit. GO to 5 .
No: GO to 3 .

CHECK THE PASSENGER SEAT TED AND CUSHION TED RESISTANCES

Ignition OFF.

Measure:

Passenger Seat Backrest TED			Passenger Seat Backrest TED

C3039 Component Side			C3039 Component Side
Pin	Circuit	Measurement / Action	Pin	Circuit
1	-		3	-

Passenger Seat Cushion TED			Passenger Seat Cushion TED

C3040 Component Side			C3040 Component Side
Pin	Circuit	Measurement / Action	Pin	Circuit
1	-		3	-

Are the resistances between 0.9 and 10 ohms?

Yes: GO to 4 .
No: If the resistance of the backrest TED was not between 0.9 and 10 ohms, INSTALL a new seat backrest TED. REFER to Seat Backrest Thermo-Electric Device (TED) . GO to 5.
If the resistance of the cushion TED was not between 0.9 and 10 ohms, INSTALL a new seat cushion TED. REFER to Seat Cushion Thermo-Electric Device (TED) . GO to 5.

CHECK FOR CORRECT DCSM OPERATION
1. Ignition OFF.
2. Disconnect and inspect all DCSM connectors.
3. Repair:
  - corrosion (install new connector or terminals - clean module pins)
  - damaged or bent pins - install new terminals/pins as necessary
  - pushed-out pins - install new pins as necessary
4. Reconnect the DCSM connectors. Make sure they seat and latch correctly.
5. Connect: Passenger Cushion TED C3040.
6. Connect: Passenger Backrest TED C3039.
7. Operate the system and determine if the concern is still present.
Is the concern still present?
1. Yes: CHECK OASIS for any applicable TSBs . If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no TSBs address this concern, INSTALL a new DCSM. REFER to Dual Climate Controlled Seat Module (DCSM) . GO to 5 .
2. No: The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues. GO to 5 .
CHECK FOR SRS DTCs
1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

  Ignition OFF.
2. Connect: Passenger Seat Side Air Bag C339.
3. Connect: DCSM C3265A (if previously disconnected).
4. Connect: Passenger Cushion TED C3040 (if previously disconnected).
5. Connect: Passenger Backrest TED C3039 (if previously disconnected).
6. Ignition ON.
7. Using a scan tool, clear the RCM DTCs .
8. Cycle the ignition OFF then ON.
9. Using a scan tool, perform RCM self-test.
Are any RCM DTCs retrieved during self-test?
1. Yes: REFER to DTC CHART: RESTRAINT CONTROL MODULE (RCM) for pinpoint test direction.
2. No: The repair is complete. RETURN the vehicle to the customer.
