Pinpoint Test

  1. CHECK THE PCM TR PID STATES
    1. Ignition ON.
    2. Using a scan tool, view PCM PID TR.
    3. Operate the transmission gear selector in all positions while monitoring the PCM PID TR states.

    Do the PID states agree with the selected positions?

    1. Yes: GO to 2  .
    2. No: To diagnose a transmission gear selector (PRNDL) status concern, REFER to DTC AND SYMPTOM CHART(S)DTC CHART and SYMPTOM CHART - Automatic Transmission - 6F50 and 6F55.
  2. CHECK THE DSM IGNITION SWITCH STATUS (IGN_SW) PID STATES
    1. Using a scan tool, view DSM PIDs  .
    2. Cycle the ignition switch in all positions while monitoring the DSM PID IGN_SW states.

    Do the PID states agree with the selected positions?

    1. Yes: GO to 3  .
    2. No: For vehicles equipped with an ignition lock cylinder and key, REFER to INSTRUMENTATION, MESSAGE CENTER, AND WARNING CHIMES . For vehicles equipped with passive entry/passive start, REFER to STEERING COLUMN SWITCHES .
  3. RETRIEVE DSM DTCs
    1. Operate the memory seat and memory mirrors in all directions through the full range of travel.
    2. Place the memory seat and memory mirrors in central travel positions.
    3. Using a scan tool, perform DSM self-test.

    Are any DSM DTCs retrieved?

    1. Yes: If DTCs  B1952, B1956, B1960 and B1964 are all retrieved, GO to  4  .

      If DTCs  B1953, B1957, B1961 and B1965 are all retrieved, GO to  4  .

      If only DTC B1534, B1538 or B153A are retrieved, GO to  5  .

      If only DTC B1663, B1956 or B1957 are retrieved, GO to  11  .

      If only DTC B1664, B1952 or B1953 are retrieved, GO to  14  .

      If only DTC B1665, B1964 or B1965 are retrieved, GO to  17  .

      If only DTC B1666, B1960 or B1961 are retrieved, GO to  20  .

      For any other DSM DTCs  , REFER to DTC Chart: Driver Seat Module (DSM) .

    2. No: GO to 4  .
  4. MONITOR THE DSM PIDs  AND CHECK THE DSM FOR CORRECT MEMORY SET SWITCH INPUTS
    1. Using a scan tool, view DSM PIDs  .
      • Memory 1 recall switch status (MEM_1)
      • Memory 2 recall switch status (MEM_2)
      • Memory 2 recall switch status (MEM_3)
    2. Monitor the DSM PIDs  while activating the memory set switch, recall 1, recall 2 and recall 3 buttons.

    Do the PID states agree with the switch button positions?

    1. Yes: GO to  4  .
    2. No: GO to 5  .
  5. CHECK THE MEMORY SET SWITCH
    1. Ignition OFF.
    2. Disconnect: Door Lock Control Switch C541.
    3. While pressing and releasing the indicated switch buttons, measure:
      Door Lock Control Switch Door Lock Control Switch
      G08038831
      G08038832
      C541 Component Side C541 Component Side
      Pin Circuit Measurement / Action Pin Circuit
      5 (Memory 1 recall switch) -
      G08038833
      		 6 -
      4 (Memory 2 recall switch) -
      G08038834
      		 6 -
      3 (Memory 3 recall switch) -
      G08038835
      		 6 -

    Are the resistances less than 20 ohms when the memory recall switch is pressed; and greater than 10, 000 ohms when released?

    1. Yes: GO to 6  .
    2. No: INSTALL a new memory set switch. REFER to Memory Set Switch . CLEAR the DTCs  .
  6. CHECK THE MEMORY SET SWITCH GROUND FOR AN OPEN
    1. Measure:
      Door Lock Control Switch Ground

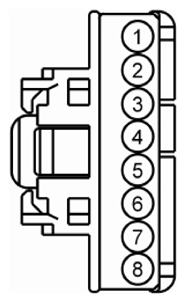

      G08038836
      G08038837
      C541 Ground
      Pin Circuit Measurement / Action Pin Circuit
      6 GD233 (BK)
      G08038838
      		 - Ground

    Is the resistance less than 3 ohms?

    1. Yes: GO to 7  .
    2. No: REPAIR the circuit. CLEAR the DTCs  .
  7. CHECK THE MEMORY SET SWITCH CIRCUITS FOR A SHORT TO VOLTAGE
    1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    2. Disconnect: Driver Seat Side Air Bag C3051.
    3. Disconnect: DSM C341C.
    4. Ignition ON.
    5. Measure:
      Door Lock Control Switch Ground
      G08038839
      G08038840
      C541 Ground
      Pin Circuit Measurement / Action Pin Circuit
      5 CPS15 (VT/WH)
      G08038841
      		 - Ground
      4 CPS16 (YE/RD)
      G08038842
      		 - Ground
      3 CPS14 (GY/VT)
      G08038843
      		 - Ground

    Is any voltage present on any circuits?

    1. Yes: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24  .
    2. No: GO to 8  .
  8. CHECK THE MEMORY SET SWITCH CIRCUITS FOR A SHORT TO GROUND
    1. Ignition OFF.
    2. Measure:
      Door Lock Control Switch Ground
      G08038844
      G08038845
      C541 Ground
      Pin Circuit Measurement / Action Pin Circuit
      5 CPS15 (VT/WH)
      G08038846
      		 - Ground
      4 CPS16 (YE/RD)
      G08038847
      		 - Ground
      3 CPS14 (GY/VT)
      G08038848
      		 - Ground

    Are the resistances greater than 10, 000 ohms?

    1. Yes: GO to 9  .
    2. No: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24  .
  9. CHECK THE MEMORY SET SWITCH CIRCUITS FOR AN OPEN
    1. Measure:
      Door Lock Control Switch DSM
      G08038849

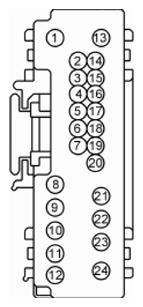

      G08038850
      C541 C341C
      Pin Circuit Measurement / Action Pin Circuit
      5 CPS15 (VT/WH)
      G08038851
      		 16 CPS15 (VT/WH)
      4 CPS16 (YE/RD)
      G08038852
      		 17 CPS16 (YE)
      3 CPS14 (GY/VT)
      G08038853
      		 14 CPS14 (GY/VT)

    Are the resistances less than 3 ohms?

    1. Yes: GO to  23  .
    2. No: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24  .
  10. MONITOR THE DSM PIDs
    1. Using a scan tool, view DSM PIDs  .
      • Driver Power Seat Front Up/Down Sense (SFNT_MT)
      • Driver Power Seat Forward/Backward Sense (SFWD_MT)
      • Driver Power Seat Recline Sense (SRCL_MT)
      • Driver Power Seat Rear Up/Down Sense (SREARMT)
    2. Operate the memory seat in all directions through the full range of travel while monitoring the PIDs  .

    Does each PID indicate the sensor is operational throughout each associated motor's full range of travel?

    1. Yes: GO to  23  .
    2. No: If front up/down position sensor PID value indicates not present, GO to 11  .

      If rear up/down position sensor PID value indicates not present, GO to  14  .

      If forward/rearward position sensor PID value indicates not present, GO to  17  .

      If recline position sensor PID value indicates not present, GO to  20  .

  11. CHECK THE FRONT HEIGHT POSITION SENSOR CIRCUITS FOR A SHORT TO VOLTAGE
    1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    2. Disconnect: Driver Seat Side Air Bag C3051.
    3. Disconnect: DSM C341B.
    4. Disconnect: Driver Seat Front Height Motor C382.
    5. Ignition ON.
    6. Measure:
      Driver Seat Front Height Motor Ground

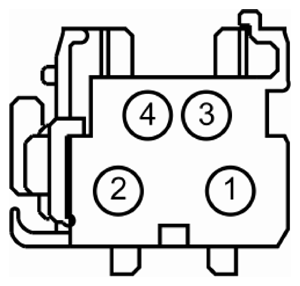

      G08038854
      G08038855
      C382 Ground
      Pin Circuit Measurement / Action Pin Circuit
      3 RPS13 (GN/OG)
      G08038856
      		 - Ground
      4 VPS10 (BU/GN)
      G08038857
      		 - Ground

    Is any voltage present on either circuit?

    1. Yes: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24  .
    2. No: GO to 12  .
  12. CHECK FRONT HEIGHT POSITION SENSOR CIRCUITS FOR A SHORT TO GROUND
    1. Ignition OFF.
    2. Measure:
      Driver Seat Front Height Motor Ground
      G08038858
      G08038859
      C382 Ground
      Pin Circuit Measurement / Action Pin Circuit
      3 RPS13 (GN/OG)
      G08038860
      		 - Ground
      4 VPS10 (BU/GN)
      G08038861
      		 - Ground

    Are the resistances greater than 10, 000 ohms?

    1. Yes: GO to 13  .
    2. No: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24  .
  13. CHECK FRONT HEIGHT POSITION SENSOR CIRCUITS FOR AN OPEN
    1. Measure:
      Driver Seat Front Height Motor DSM
      G08038862
      G08038863
      C382 C341B
      Pin Circuit Measurement / Action Pin Circuit
      3 RPS13 (GN/OG)
      G08038864
      		 8 RPS13 (GN/OG)
      4 VPS10 (BU/GN)
      G08038865
      		 4 VPS10 (BU/GN)

    Are the resistances less than 3 ohms?

    1. Yes: INSTALL a new seat track assembly. REFER to Seat Track . CLEAR the DTCs  . GO to  24.
    2. No: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24.
  14. CHECK THE REAR HEIGHT POSITION SENSOR CIRCUITS FOR A SHORT TO VOLTAGE
    1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    2. Disconnect: Driver Seat Side Air Bag C3051.
    3. Disconnect: DSM C341B.
    4. Disconnect: Driver Seat Rear Height Motor C363.
    5. Ignition ON.
    6. Measure:
      Driver Seat Rear Height Motor Ground
      G08038866
      G08038867
      C363 Ground
      Pin Circuit Measurement / Action Pin Circuit
      2 RPS13 (GN/OG)
      G08038868
      		 - Ground
      4 VPS11 (GN/BN)
      G08038869
      		 - Ground

    Is any voltage present on either circuit?

    1. Yes: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24  .
    2. No: GO to 15  .
  15. CHECK THE REAR HEIGHT POSITION SENSOR CIRCUITS FOR A SHORT TO GROUND
    1. Ignition OFF.
    2. Measure:
      Driver Seat Rear Height Motor Ground
      G08038870
      G08038871
      C363 Ground
      Pin Circuit Measurement / Action Pin Circuit
      2 RPS13 (GN/OG)
      G08038872
      		 - Ground
      4 VPS11 (GN/BN)
      G08038873
      		 - Ground

    Are the resistances greater than 10, 000 ohms?

    1. Yes: GO to 16  .
    2. No: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24  .
  16. CHECK THE REAR HEIGHT POSITION SENSOR CIRCUITS FOR AN OPEN
    1. Measure:
      Driver Seat Rear Height Motor DSM
      G08038874
      G08038875
      C363 C341B
      Pin Circuit Measurement / Action Pin Circuit
      2 RPS13 (GN/OG)
      G08038876
      		 8 RPS13 (GN/OG)
      4 VPS11 (GN/BN)
      G08038877
      		 3 VPS11 (GN/BN)

    Are the resistances less than 3 ohms?

    1. Yes: INSTALL a new seat track assembly. REFER to Seat Track . CLEAR the DTCs  . GO to  24.
    2. No: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24.
  17. CHECK THE HORIZONTAL POSITION SENSOR CIRCUITS FOR A SHORT TO VOLTAGE
    1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    2. Disconnect: Driver Seat Side Air Bag C3051.
    3. Disconnect: DSM C341B.
    4. Disconnect: Driver Seat Horizontal Motor C362.
    5. Ignition ON.
    6. Measure:
      Driver Seat Horizontal Motor Ground
      G08038878
      G08038879
      C362 Ground
      Pin Circuit Measurement / Action Pin Circuit
      3 RPS13 (GN/OG)
      G08038880
      		 - Ground
      4 VPS09 (BN/BU)
      G08038881
      		 - Ground

    Is any voltage present on either circuit?

    1. Yes: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24  .
    2. No: GO to 18  .
  18. CHECK THE HORIZONTAL POSITION SENSOR CIRCUITS FOR A SHORT TO GROUND
    1. Ignition OFF.
    2. Measure:
      Driver Seat Horizontal Motor Ground
      G08038883
      G08038882
      C362 Ground
      Pin Circuit Measurement / Action Pin Circuit
      3 RPS13 (GN/OG)
      G08038884
      		 - Ground
      4 VPS09 (BN/BU)
      G08038885
      		 - Ground

    Are the resistances greater than 10, 000 ohms?

    1. Yes: GO to 19  .
    2. No: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24  .
  19. CHECK THE HORIZONTAL POSITION SENSOR CIRCUITS FOR AN OPEN
    1. Measure:
      Driver Seat Horizontal Motor DSM
      G08038886
      G08038887
      C362 C341B
      Pin Circuit Measurement / Action Pin Circuit
      3 RPS13 (GN/OG)
      G08038888
      		 8 RPS13 (GN/OG)
      4 VPS09 (BN/BU)
      G08038889
      		 14 VPS09 (BN/BU)

    Are the resistances less than 3 ohms?

    1. Yes: INSTALL a new seat track assembly. REFER to Seat Track . CLEAR the DTCs  . GO to  24.
    2. No: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24.
  20. CHECK THE RECLINER POSITION SENSOR CIRCUITS FOR A SHORT TO VOLTAGE
    1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    2. Disconnect: Driver Seat Side Air Bag C3051.
    3. Disconnect: DSM C341B.
    4. Disconnect: Driver Seat Recliner Motor C3187.
    5. Ignition ON.
    6. Measure:
      Driver Seat Recliner Motor Ground
      G08038890
      G08038891
      C3187 Ground
      Pin Circuit Measurement / Action Pin Circuit
      2 VPS12 (GY/OG)
      G08038892
      		 - Ground
      4 RPS13 (GN/OG)
      G08038893
      		 - Ground

    Is any voltage present on either circuit?

    1. Yes: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24  .
    2. No: GO to 21  .
  21. CHECK THE RECLINER POSITION SENSOR CIRCUITS FOR A SHORT TO GROUND
    1. Ignition OFF.
    2. Measure:
      Driver Seat Recliner Motor Ground
      G08038895
      G08038894
      C3187 Ground
      Pin Circuit Measurement / Action Pin Circuit
      2 VPS12 (GY/OG)
      G08038896
      		 - Ground
      4 RPS13 (GN/OG)
      G08038897
      		 - Ground

    Are the resistances greater than 10, 000 ohms?

    1. Yes: GO to 22  .
    2. No: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24  .
  22. CHECK THE RECLINER POSITION SENSOR CIRCUITS FOR AN OPEN
    1. Measure:
      Driver Seat Recliner Motor DSM
      G08038898
      G08038899
      C3187 C341B
      Pin Circuit Measurement / Action Pin Circuit
      2 VPS12 (GY/OG)
      G08038900
      		 20 VPS12 (GY/OG)
      4 RPS13 (GN/OG)
      G08038901
      		 8 RPS13 (GN/OG)

    Are the resistances less than 3 ohms?

    1. Yes: INSTALL a new seat recliner motor. REFER to Seat Recliner Motor . CLEAR the DTCs  . GO to  24.
    2. No: REPAIR the affected circuit. CLEAR the DTCs  . GO to  24.
  23. CHECK FOR CORRECT DSM OPERATION
    1. Ignition OFF.
    2. Disconnect and inspect all DSM connectors.
    3. Repair:
      • corrosion (install new connector or terminals - clean module pins)
      • damaged or bent pins - install new terminals/pins as necessary
      • pushed-out pins - install new pins as necessary
    4. Reconnect the DSM connectors and all previously disconnected rear window defrost system connectors. Make sure they seat and latch correctly.
    5. Operate the system and determine if the concern is still present.

    Is the concern still present?

    1. Yes: CHECK OASIS  for any applicable TSBs  . If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no TSBs  address this concern, INSTALL a new DSM. REFER to Driver Seat Module (DSM) . GO to  24.
    2. No: The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues. GO to  24  .
  24. CHECK FOR SRS DTCs
    1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    2. Connect: Driver Seat Side Air Bag C3051.
    3. Connect: All previously disconnected electrical connectors.
    4. Ignition ON.
    5. Using a scan tool, clear the RCM DTCs  .
    6. Cycle the ignition OFF then ON.
    7. Using a scan tool, perform RCM self-test.

    Are any RCM DTCs retrieved during self-test?

    1. Yes: REFER to DTC CHART: RESTRAINT CONTROL MODULE (RCM) for pinpoint test direction.
    2. No: The repair is complete. RETURN the vehicle to the customer.
scientia non olet · About LEMON Manuals
