Pinpoint Test

1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

   Ignition OFF.

2. Disconnect: Driver Seat Side Air Bag C3051.

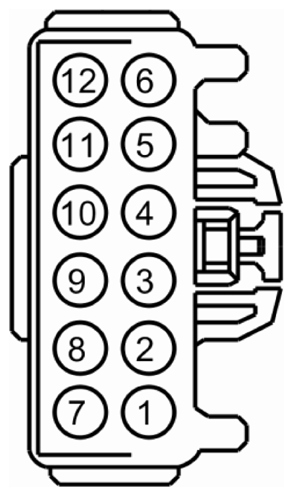

3. Disconnect: Driver Seat Control Switch C369.
4. Measure:

   Driver Seat Control Switch			Ground
   C369			Ground
   Pin	Circuit	Measurement / Action	Pin	Circuit
   5	CBX05 (VT/RD)		-	Ground

Is the voltage greater than 11 volts?

1. Yes: GO to 2  .
2. No: VERIFY BJB fuse 23 (30A) is OK. If OK, REPAIR the circuit. If not OK, REFER to the appropriate wiring diagrams to identify the possible causes of the circuit short. REFER to OEM FUSE AND RELAY INFORMATION and OEM WIRING DIAGRAMS . GO to  3.

1. Measure:

   Driver Seat Control Switch			Ground
   C369			Ground
   Pin	Circuit	Measurement / Action	Pin	Circuit
   3	GD904 (BK/BU)		-	Ground

Is the resistance less than 3 ohms?

1. Yes: INSTALL a new seat control switch. REFER to Seat Control Switch . GO to 3  .
2. No: REPAIR the circuit. GO to 3  .

1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

   Ignition OFF.

2. Connect: Driver Seat Side Air Bag C3051.
3. Connect: Driver Seat Control Switch C369.
4. Ignition ON.
5. Using a scan tool, CLEAR the RCM DTCs  .
6. Cycle the ignition OFF then ON.
7. Using a scan tool, perform RCM self-test.

Are any RCM DTCs retrieved during self-test?

1. Yes: REFER to DTC CHART: RESTRAINT CONTROL MODULE (RCM) for pinpoint test direction.
2. No: The repair is complete. RETURN the vehicle to the customer.
