Pinpoint Test

NOTE: When taking measurements at DCSM harness connectors, do not insert the electrical probes into the female connector pins. Inserting the probes into connector pins can cause intermittent or open electrical connections after reassembly resulting in DTCs  and system failure. Touching the tip of these connector pins is recommended instead.
  1. CHECK THE DCSM FOR DTCs
    1. Using a scan tool, perform DCSM self-test.

    Was DTC B272A or B272B retrieved in the self-test?

    1. Yes: For DTC B272A, REFER to Diagnostic Routine AD: B272A .

      For DTC B272B, REFER to Diagnostic Routine AE: B272B .

    2. No: GO to 2  .
  2. MONITOR THE DCSM TED TEMPERATURE PIDs
    1. Using a scan tool, view DCSM PIDs  .
      • Passenger cushion thermal electric device (TED) temperature (PCSHTMP)
      • Passenger back TED temperature (PBKTMP)
      • Seat cushion thermal electric device temperature (CSHTEMP)
      • Seat back thermal electric device temperature (BK_TEMP)
    2. NOTE: Make sure the temperature of the climate controlled seats has stabilized before monitoring the PIDs  . Not allowing stabilization can cause incorrect readings and lead to incorrect identification of components that are not damaged.

      Monitor the TED temperature PIDs  with the climate controlled seats off. Compare the PIDs  of the front passenger seat to those of the driver seat, this can help identify if there is a concern with the front passenger seat cushion or backrest PID readings.

    Are both front passenger seat TED temperature PIDs within 10 C (18 F) of the ambient temperature?

    1. Yes: GO to 3  .
    2. No: If the front passenger seat cushion PID varies 10 C (18 F) or more from ambient temperature, GO to  16  .

      If the front passenger seat backrest PID varies 10 C (18 F) or more from ambient temperature, GO to  31  .

  3. CONFIRM THE FAULT IS IN THE SEAT CUSHION OR THE BACKREST
    1. Ignition OFF.
    2. Start the engine.
    3. NOTE: A crushed seat cushion foam pad or climate controlled seat manifold may be the cause of the fault. It may be necessary to sit on the seat or place something of reasonable size and weight on the seat to recreate the fault.
      NOTE: If the seat shuts down before a 15 minute heat cycle has timed out, carry out the DCSM self-test and go to the DCSM DTC Chart to continue diagnostics.

      Set the passenger seat to high heat. Allow the seat to heat for at least 15 minutes while monitoring the TED temperature PIDs  of the passenger seat. If necessary, when the seat times out after 15 minutes, set the passenger seat to high heat once again.

    Do the passenger seat cushion TED and backrest TED PIDs vary more than 60 C (108 F) from each other?

    1. Yes: If the front passenger seat cushion PID is 60 C (108 F) hotter than the backrest PID, GO to  5  .

      If the front passenger seat backrest PID is 60 C (108 F) hotter than the cushion PID, GO to  20  .

    2. No: GO to 4  .
  4. CHECK THE TED COOLING PERFORMANCE
    1. Check the TEDs  cooling performance on the passenger seat. REFER to Thermo-Electric Device (TED) Cooling Performance .

    Did the TEDs pass the component test?

    1. Yes: The DTC may have been set by extreme cabin temperatures or excessive sun load on the seat causing the system to enter recovery mode. Occupant size and weight characteristics can also be a factor. If a concern cannot be found or duplicated, RETURN the vehicle to the customer.
    2. No: CHECK the affected seat cushion or backrest for correct installation of the climate controlled seat components (TED, manifold, air ducts and foam pad). CHECK for air flow restrictions (TED inlets and outlets, TED-to-manifold connections, filters and ducts) and REPAIR as needed. CHECK for an intermittent wiring fault. REPAIR as needed.
  5. CHECK THE TED INSTALLATION AND FOR A CRUSHED SEAT CUSHION
    1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    2. Disconnect: Passenger Seat Side Air Bag C339.
    3. Remove the seat. REFER to Seat .
    4. Remove the seat cushion cover. REFER to Seat Cushion Cover .
    5. Inspect the seat cushion:
      • Is the cushion blower obstructed?
      • Is the blower filter restricted or plugged?
      • Is the TED correctly installed?
      • Is the seat cushion foam pad crushed or restricted?
      • Is the climate controlled seat manifold crushed or restricted?

    Is the TED correctly installed and are the foam pad and manifold free of any damage?

    1. Yes: GO to 6  .
    2. No: Correctly INSTALL the cushion TED or INSTALL a new seat cushion foam pad and/or climate controlled seat manifold. GO to  36  .
  6. CHECK THE PASSENGER BACKREST TED - CIRCUIT FOR A SHORT TO VOLTAGE
    1. Ignition OFF.
    2. Disconnect: DCSM C3265A.
    3. NOTE: Do not connect the seat side air bag electrical connector at this time.

      Position the front passenger seat in the vehicle and connect the seat-to-floor connectors.

    4. Ignition ON.
    5. Measure:
      DCSM Ground
      G08039386
      G08039387
      C3265A Ground
      Pin Circuit Measurement / Action Pin Circuit
      D RHS06 (WH)
      G08039388
      		 - Ground

    Is any voltage present?

    1. Yes: REPAIR circuits RHS06 (WH) and CHS06 (BU/BN)/CHS01 (GY/VT). GO to  36  .
    2. No: GO to 7  .
  7. CHECK THE PASSENGER BACKREST TED CIRCUIT FOR A SHORT TO GROUND
    1. Ignition OFF.
    2. Measure:
      DCSM Ground
      G08039389
      G08039390
      C3265A Ground
      Pin Circuit Measurement / Action Pin Circuit
      C CHS06 (BU/BN)
      G08039391
      		 - Ground

    Is the resistance greater than 10, 000 ohms?

    1. Yes: GO to 8  .
    2. No: REPAIR circuits RHS06 (WH) and CHS06 (BU/BN)/CHS01 (GY/VT). GO to  36  .
  8. CHECK THE PASSENGER BACKREST TED AND WIRING RESISTANCE
    1. Measure:
      DCSM DCSM
      G08039392
      G08039393
      C3265A C3265A
      Pin Circuit Measurement / Action Pin Circuit
      C CHS06 (BU/BN)
      G08039394
      		 D RHS06 (WH)

    Is the resistance between 0.9 and 10 ohms?

    1. Yes: GO to  10  .
    2. No: GO to 9  .
  9. CHECK THE PASSENGER BACKREST TED RESISTANCE
    1. Disconnect: Passenger Backrest TED C3039.
    2. Measure:
      Passenger Backrest TED Passenger Backrest TED
      G08039395
      G08039396
      C3039 Component Side C3039 Component Side
      Pin Circuit Measurement / Action Pin Circuit
      1 -
      G08039397
      		 3 -

    Is the resistance between 0.9 and 10 ohms?

    1. Yes: REPAIR the circuit. GO to  36  .
    2. No: INSTALL a new seat backrest TED. REFER to Seat Backrest Thermo-Electric Device (TED) . GO to  36  .
  10. CHECK THE BLOWER AND SPEED CONTROL CIRCUITS FOR A SHORT TO VOLTAGE
    1. Disconnect: DCSM C3265C.
    2. Ignition ON.
    3. Measure:
      DCSM Ground
      G08039398
      G08039399
      C3265C Ground
      Pin Circuit Measurement / Action Pin Circuit
      8 CHS08 (BN/YE)
      G08039400
      		 - Ground
      3 VHS23 (BN/BU)
      G08039401
      		 - Ground

    Is any voltage present?

    1. Yes: REPAIR the affected circuit. GO to  36  .
    2. No: GO to 11  .
  11. CHECK THE BLOWER AND SPEED CONTROL CIRCUITS FOR A SHORT TO GROUND
    1. Ignition OFF.
    2. Measure:
      DCSM Ground
      G08039403
      G08039402
      C3265C Ground
      Pin Circuit Measurement / Action Pin Circuit
      8 CHS08 (BN/YE)
      G08039404
      		 - Ground
      3 VHS23 (BN/BU)
      G08039405
      		 - Ground

    Are the resistances greater than 10, 000 ohms?

    1. Yes: GO to 12  .
    2. No: REPAIR the affected circuit. GO to  36  .
  12. CHECK THE BLOWER AND WIRING RESISTANCE
    1. Disconnect: Passenger Backrest TED C3039.
    2. NOTE: Connect the ohmmeter with the positive lead to DCSM C3265C-8, circuit CHS08 (BN/YE) and the negative lead to DCSM C3265C-7, circuit RHS08 (VT/WH) when measuring. Ohmmeter leads incorrectly connected can result in false readings and incorrect identification of components that are not damaged.

      Measure:

      DCSM DCSM
      G08039406
      G08039407
      C3265C C3265C
      Pin Circuit Measurement / Action Pin Circuit
      8 CHS08 (BN/YE)
      G08039408
      		 7 RHS08 (VT/WH)

    Is the resistance between 4, 000 ohms and 10, 000 ohms?

    1. Yes: GO to  14  .
    2. No: GO to 13  .
  13. CHECK THE BLOWER RESISTANCE
    1. Disconnect: Passenger Cushion TED C3040.
    2. NOTE: Connect the ohmmeter with the positive lead to pin 2 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected can result in false readings and lead to incorrect identification of components that are not damaged.

      Measure:

      Passenger Cushion TED Passenger Cushion TED
      G08039409
      G08039410
      C3040 Component Side C3040 Component Side
      Pin Circuit Measurement / Action Pin Circuit
      2 -
      G08039411
      		 4 -

    Is the resistance between 4, 000 ohms and 10, 000 ohms?

    1. Yes: REPAIR circuits CHS08 (BN/YE) and VHS23 (BN/BU). GO to  36  .
    2. No: INSTALL a new seat cushion TED. REFER to Seat Cushion Thermo-Electric Device (TED) . GO to  36  .
  14. CHECK THE BLOWER SPEED CONTROL AND CIRCUIT RESISTANCE
    1. NOTE: Connect the ohmmeter with the positive lead to C3265C-3, circuit VHS23 (BN/BU), harness side and the negative lead to C3265C-7, circuit RHS08 (VT/WH), harness side when measuring. Ohmmeter leads incorrectly connected can result in false readings and leads to incorrect identification of components that are not damaged.

      Measure:

      DCSM DCSM
      G08039412
      G08039413
      C3265C C3265C
      Pin Circuit Measurement / Action Pin Circuit
      3 VHS23 (BN/BU)
      G08039414
      		 7 RHS08 (VT/WH)

    Is the resistance between 240, 000 ohms and 420, 000 ohms?

    1. Yes: GO to  16  .
    2. No: GO to 15  .
  15. CHECK THE BLOWER SPEED CONTROL RESISTANCE
    1. Disconnect: Passenger Cushion TED C3040.
    2. NOTE: The ohmmeter must be connected with the positive lead to pin 7 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected can result in false readings and lead to incorrect identification of components that are not damaged.

      Measure:

      Passenger Cushion TED Passenger Cushion TED
      G08039415
      G08039416
      C3040 Component Side C3040 Component Side
      Pin Circuit Measurement / Action Pin Circuit
      7 -
      G08039417
      		 4 -

    Is the resistance between 240, 000 ohms and 420, 000 ohms?

    1. Yes: REPAIR circuits VHS23 (BN/BU) and RHS08 (VT/WH). GO to  36  .
    2. No: INSTALL a new seat cushion TED. REFER to Seat Cushion Thermo-Electric Device (TED) . GO to  36  .
  16. CHECK THERMISTOR CIRCUIT FOR A SHORT TO VOLTAGE
    1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    2. Disconnect: Passenger Seat Side Air Bag C339.
    3. Disconnect: DCSM C3265B.
    4. Disconnect: Passenger Cushion TED C3040.
    5. Ignition ON.
    6. Measure:
      DCSM Ground
      G08039418
      G08039419
      C3265B Ground
      Pin Circuit Measurement / Action Pin Circuit
      2 VHS27 (WH/OG)
      G08039420
      		 - Ground
      3 RHS10 (BU/OG)
      G08039421
      		 - Ground

    Is any voltage present?

    1. Yes: REPAIR the affected circuit. GO to  36  .
    2. No: GO to 17  .
  17. CHECK THERMISTOR CIRCUIT FOR A SHORT TO GROUND
    1. Ignition OFF.
    2. Measure:
      DCSM Ground
      G08039422
      G08039423
      C3265B Ground
      Pin Circuit Measurement / Action Pin Circuit
      2 VHS27 (WH/OG)
      G08039424
      		 - Ground
      3 RHS10 (BU/OG)
      G08039425
      		 - Ground

    Are the resistances greater than 10, 000 ohms?

    1. Yes: GO to 18  .
    2. No: REPAIR the affected circuit. GO to  36  .
  18. CHECK THE TED THERMISTOR AND WIRING RESISTANCE
    1. Measure:
      DCSM DCSM
      G08039426
      G08039427
      C3265B C3265B
      Pin Circuit Measurement / Action Pin Circuit
      2 VHS27 (WH/OG)
      G08039428
      		 3 RHS10 (BU/OG)
      Ambient Temperature Resistance
      0 C (32 F) to 10 C (50 F) 2, 782 to 1, 663 ohms
      10 C (50 F) to 20 C (68 F) 1, 837 to 1, 140 ohms
      20 C (68 F) to 30 C (86 F) 1, 250 to 806 ohms
      30 C (86 F) to 40 C (103.9 F) 893 to 570 ohms
      40 C (103.9 F) to 50 C (121.9 F) 630 to 428 ohms

    Is the resistance within the limits indicated?

    1. Yes: GO to  35  .
    2. No: GO to 19  .
  19. CHECK THE THERMISTOR
    1. Disconnect: Passenger Cushion TED C3040.
    2. Measure:
      Passenger Cushion TED Passenger Cushion TED
      G08039429
      G08039430
      C3040 Component Side C3040 Component Side
      Pin Circuit Measurement / Action Pin Circuit
      5 -
      G08039431
      		 8 -
      Ambient Temperature Resistance
      0 C (32 F) to 10 C (50 F) 2, 782 to 1, 663 ohms
      10 C (50 F) to 20 C (68 F) 1, 837 to 1, 140 ohms
      20 C (68 F) to 30 C (86 F) 1, 250 to 806 ohms
      30 C (86 F) to 40 C (103.9 F) 893 to 570 ohms
      40 C (103.9 F) to 50 C (121.9 F) 630 to 428 ohms

    Is the resistance within the limits indicated?

    1. Yes: REPAIR circuits VHS27 (WH/OG) and RHS10 (BU/OG). GO to  36  .
    2. No: INSTALL a new seat cushion TED. REFER to Seat Cushion Thermo-Electric Device (TED) . GO to  36  .
  20. CHECK THE TED INSTALLATION AND FOR A CRUSHED SEAT BACKREST
    1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    2. Disconnect: Passenger Seat Side Air Bag C339.
    3. Remove the seat. REFER to Seat .
    4. Remove the seat backrest cover. REFER to Seat Backrest Cover .
    5. Inspect the seat backrest:
      • Is the backrest blower obstructed?
      • Is the blower filter restricted or plugged?
      • Is the TED correctly installed?
      • Is the seat backrest foam pad crushed or restricted?
      • Is the climate controlled seat manifold crushed or restricted?

    Is the TED correctly installed and are the foam pad and manifold free of any damage?

    1. Yes: GO to 21  .
    2. No: Correctly INSTALL the backrest TED or INSTALL a new seat backrest foam pad and/or climate controlled seat manifold. CONNECT the battery ground cable. GO to  36  .
  21. CHECK THE PASSENGER CUSHION TED CIRCUIT FOR A SHORT TO VOLTAGE
    1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    2. Disconnect: Passenger Seat Side Air Bag C339.
    3. Disconnect: DCSM C3265A.
    4. NOTE: Do not connect the seat side air bag electrical connector at this time.

      Position the front passenger seat in the vehicle and connect the seat-to-floor connectors.

    5. Ignition ON.
    6. Measure:
      DCSM Ground

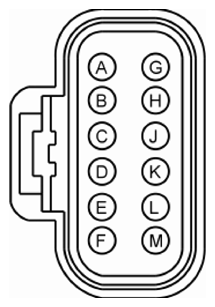

      G08039433
      G08039432
      C3265A Ground
      Pin Circuit Measurement / Action Pin Circuit
      B RHS07 (BU)
      G08039434
      		 - Ground

    Is any voltage present?

    1. Yes: REPAIR circuits CHS07 (GY/BU) and RHS07 (BU). GO to  36  .
    2. No: GO to 22  .
  22. CHECK THE PASSENGER CUSHION TED CIRCUIT FOR A SHORT TO GROUND
    1. Ignition OFF.
    2. Measure:
      DCSM Ground
      G08039435
      G08039436
      C3265A Ground
      Pin Circuit Measurement / Action Pin Circuit
      A CHS07 (GY/BU)
      G08039437
      		 - Ground

    Is the resistance greater than 10, 000 ohms?

    1. Yes: GO to 23  .
    2. No: REPAIR circuits CHS07 (GY/BU) and RHS07 (BU). GO to  36  .
  23. CHECK THE PASSENGER CUSHION TED AND WIRING RESISTANCE
    1. Measure:
      DCSM DCSM
      G08039438
      G08039439
      C3265A C3265A
      Pin Circuit Measurement / Action Pin Circuit
      A CHS07 (GY/BU)
      G08039440
      		 B RHS07 (BU)

    Is the resistance between 0.9 and 10 ohms?

    1. Yes: GO to  25  .
    2. No: GO to 24  .
  24. CHECK THE PASSENGER CUSHION TED RESISTANCE
    1. Disconnect: Passenger Cushion TED C3040.
    2. Measure:
      Passenger Cushion TED Passenger Cushion TED

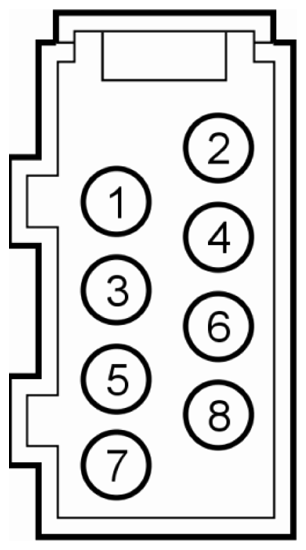

      G08039441
      G08039442
      C3040 Component Side C3040 Component Side
      Pin Circuit Measurement / Action Pin Circuit
      1 -
      G08039443
      		 3 -

    Is the resistance between 0.9 and 10 ohms?

    1. Yes: REPAIR the affected circuit. GO to  36  .
    2. No: INSTALL a new seat cushion TED. REFER to Seat Cushion Thermo-Electric Device (TED) . GO to  36  .
  25. CHECK THE BLOWER AND SPEED CONTROL CIRCUITS FOR A SHORT TO VOLTAGE
    1. Disconnect: DCSM C3265C.
    2. Ignition ON.
    3. Measure:
      DCSM Ground
      G08039444
      G08039445
      C3265C Ground
      Pin Circuit Measurement / Action Pin Circuit
      8 CHS08 (BN/YE)
      G08039446
      		 - Ground
      4 VHS21 (BU/WH)
      G08039447
      		 - Ground

    Is any voltage present?

    1. Yes: REPAIR the affected circuit. GO to  36  .
    2. No: GO to 26  .
  26. CHECK THE BLOWER AND SPEED CONTROL CIRCUITS FOR A SHORT TO GROUND
    1. Ignition OFF.
    2. Measure:
      DCSM Ground
      G08039448
      G08039449
      C3265C Ground
      Pin Circuit Measurement / Action Pin Circuit
      8 CHS08 (BN/YE)
      G08039450
      		 - Ground
      4 VHS21 (BU/WH)
      G08039451
      		 - Ground

    Are the resistances greater than 10, 000 ohms?

    1. Yes: GO to 27  .
    2. No: REPAIR the affected circuit. GO to  36  .
  27. CHECK THE BLOWER AND WIRING RESISTANCE
    1. Disconnect: Passenger Cushion TED C3040.
    2. NOTE: Connect the ohmmeter with the positive lead to DCSM C3265C-8, circuit CHS08 (BN/YE) and the negative lead to DCSM C3265C-7, circuit RHS08 (VT/WH) when measuring. Ohmmeter leads incorrectly connected can result in false readings and lead to incorrect identification of components that are not damaged.

      Measure:

      DCSM DCSM
      G08039452
      G08039453
      C3265C C3265C
      Pin Circuit Measurement / Action Pin Circuit
      8 CHS08 (BN/YE)
      G08039454
      		 7 RHS08 (VT/WH)

    Is the resistance between 4, 000 ohms and 10, 000 ohms?

    1. Yes: GO to  29  .
    2. No: GO to 28  .
  28. CHECK THE BLOWER RESISTANCE
    1. Disconnect: Passenger Backrest TED C3039.
    2. NOTE: Connect the ohmmeter with the positive lead to pin 2 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected can result in false readings and lead to incorrect identification of components that are not damaged.

      Measure:

      Passenger Backrest TED Passenger Backrest TED
      G08039455
      G08039456
      C3039 Component Side C3039 Component Side
      Pin Circuit Measurement / Action Pin Circuit
      2 -
      G08039457
      		 4 -

    Is the resistance between 4, 000 ohms and 10, 000 ohms?

    1. Yes: REPAIR circuits CHS08 (BN/YE) and RHS08 (VT/WH). GO to  36.
    2. No: INSTALL a new seat backrest TED. REFER to Seat Backrest Thermo-Electric Device (TED) . GO to  36.
  29. CHECK THE BLOWER SPEED CONTROL AND CIRCUIT RESISTANCE
    1. NOTE: Connect the ohmmeter with the positive lead to C3265C-4, circuit VHS21 (BU/WH), harness side and the negative lead to C3265C-7, circuit RHS08 (VT/WH), harness side when measuring. Ohmmeter leads incorrectly connected can result in false readings and lead to incorrect identification of components that are not damaged.

      Measure the resistance between DCSM C3265C-4, circuit VHS21 (BU/WH), harness side and DCSM C3265C-7, circuit RHS08 (VT/WH), harness side.

      DCSM DCSM
      G08039458
      G08039459
      C3265C C3265C
      Pin Circuit Measurement / Action Pin Circuit
      4 VHS21 (BU/WH)
      G08039460
      		 7 RHS08 (VT/WH)

    Is the resistance between 240, 000 ohms and 420, 000 ohms?

    1. Yes: GO to  31  .
    2. No: GO to 30  .
  30. CHECK THE BLOWER SPEED CONTROL RESISTANCE
    1. Disconnect: Passenger Backrest TED C3039.
    2. NOTE: Connect the ohmmeter with the positive lead to pin 7 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected can result in false readings and lead to incorrect identification of components that are not damaged.

      Measure:

      Passenger Backrest TED Passenger Backrest TED
      G08039461
      G08039462
      C3039 Component Side C3039 Component Side
      Pin Circuit Measurement / Action Pin Circuit
      7 -
      G08039463
      		 4 -

    Is the resistance between 240, 000 ohms and 420, 000 ohms?

    1. Yes: REPAIR circuits VHS21 (BU/WH) and RHS08 (VT/WH). GO to  36.
    2. No: INSTALL a new seat backrest TED. REFER to Seat Backrest Thermo-Electric Device (TED) . GO to  36.
  31. CHECK THERMISTOR CIRCUIT FOR A SHORT TO VOLTAGE
    1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    2. Disconnect: Passenger Seat Side Air Bag C339.
    3. Disconnect: DCSM C3265B.
    4. Disconnect: Passenger Backrest TED C3039.
    5. Ignition ON.
    6. Measure:
      DCSM Ground
      G08039464
      G08039465
      C3265B Ground
      Pin Circuit Measurement / Action Pin Circuit
      4 VHS36 (YE/BU)
      G08039466
      		 - Ground
      5 RHS20 (GN/BU)
      G08039467
      		 - Ground

    Is any voltage present?

    1. Yes: REPAIR the affected circuit. GO to  36  .
    2. No: GO to 32  .
  32. CHECK THERMISTOR CIRCUIT FOR A SHORT TO GROUND
    1. Ignition OFF.
    2. Measure:
      DCSM Ground
      G08039468
      G08039469
      C3265B Ground
      Pin Circuit Measurement / Action Pin Circuit
      4 VHS36 (YE/BU)
      G08039470
      		 - Ground
      5 RHS20 (GN/BU)
      G08039471
      		 - Ground

    Is the resistance greater than 10, 000 ohms?

    1. Yes: GO to 33  .
    2. No: REPAIR the affected circuit. GO to  36  .
  33. CHECK THE TED THERMISTOR AND WIRING RESISTANCE
    1. Connect: Passenger Backrest TED C3039.
    2. Measure:
      DCSM DCSM
      G08039472
      G08039473
      C3265B C3265B
      Pin Circuit Measurement / Action Pin Circuit
      4 VHS36 (YE/BU)
      G08039474
      		 5 RHS20 (GN/BU)
      Ambient Temperature Resistance
      0 C (32 F) to 10 C (50 F) 2, 782 to 1, 663 ohms
      10 C (50 F) to 20 C (68 F) 1, 837 to 1, 140 ohms
      20 C (68 F) to 30 C (86 F) 1, 250 to 806 ohms
      30 C (86 F) to 40 C (103.9 F) 893 to 570 ohms
      40 C (103.9 F) to 50 C (121.9 F) 630 to 428 ohms

    Is the resistance within the limits indicated?

    1. Yes: GO to  35  .
    2. No: GO to 34  .
  34. CHECK THE TED THERMISTOR RESISTANCE
    1. Disconnect: Passenger Backrest TED C3039.
    2. Measure:
      Passenger Backrest TED Passenger Backrest TED
      G08039475
      G08039476
      C3039 Component Side C3039 Component Side
      Pin Circuit Measurement / Action Pin Circuit
      5 -
      G08039477
      		 8 -
      Ambient Temperature Resistance
      0 C (32 F) to 10 C (50 F) 2, 782 to 1, 663 ohms
      10 C (50 F) to 20 C (68 F) 1, 837 to 1, 140 ohms
      20 C (68 F) to 30 C (86 F) 1, 250 to 806 ohms
      30 C (86 F) to 40 C (103.9 F) 893 to 570 ohms
      40 C (103.9 F) to 50 C (121.9 F) 630 to 428 ohms

    Is the resistance within the limits indicated?

    1. Yes: REPAIR circuits VHS36 (YE/BU) and RHS20 (GN/BU). GO to  36.
    2. No: INSTALL a new seat backrest TED. REFER to Seat Backrest Thermo-Electric Device (TED) . GO to  36.
  35. CHECK FOR CORRECT DCSM OPERATION
    1. Ignition OFF.
    2. Disconnect and inspect all DCSM connectors.
    3. Repair:
      • corrosion (install new connector or terminals - clean module pins)
      • damaged or bent pins - install new terminals/pins as necessary
      • pushed-out pins - install new pins as necessary
    4. Reconnect the DCSM connectors. Make sure they seat and latch correctly.
    5. Connect: Passenger Seat Backrest TED C3039 (if previously disconnected).
    6. Connect: Passenger Seat Cushion TED C3040 (if previously disconnected).
    7. Operate the system and determine if the concern is still present.

    Is the concern still present?

    1. Yes: CHECK OASIS  for any applicable TSBs  . If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no TSBs  address this concern, INSTALL a new DCSM. REFER to Dual Climate Controlled Seat Module (DCSM) . GO to 36  .
    2. No: The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues. GO to 36  .
  36. CHECK FOR SRS DTCs
    1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    2. Connect: Passenger Seat Side Air Bag C339.
    3. Connect: DCSM C3265A, C3265B or C3265C (if previously disconnected).
    4. Connect: Passenger Seat Backrest TED C3039 (if previously disconnected).
    5. Connect: Passenger Seat Cushion TED C3040 (if previously disconnected).
    6. Ignition ON.
    7. Using a scan tool, clear the RCM DTCs  .
    8. Cycle the ignition OFF then ON.
    9. Using a scan tool, perform RCM self-test.

    Are any RCM DTCs retrieved during self-test?

    1. Yes: REFER to DTC CHART: RESTRAINT CONTROL MODULE (RCM) for pinpoint test direction.
    2. No: The repair is complete. RETURN the vehicle to the customer.
scientia non olet · About LEMON Manuals
